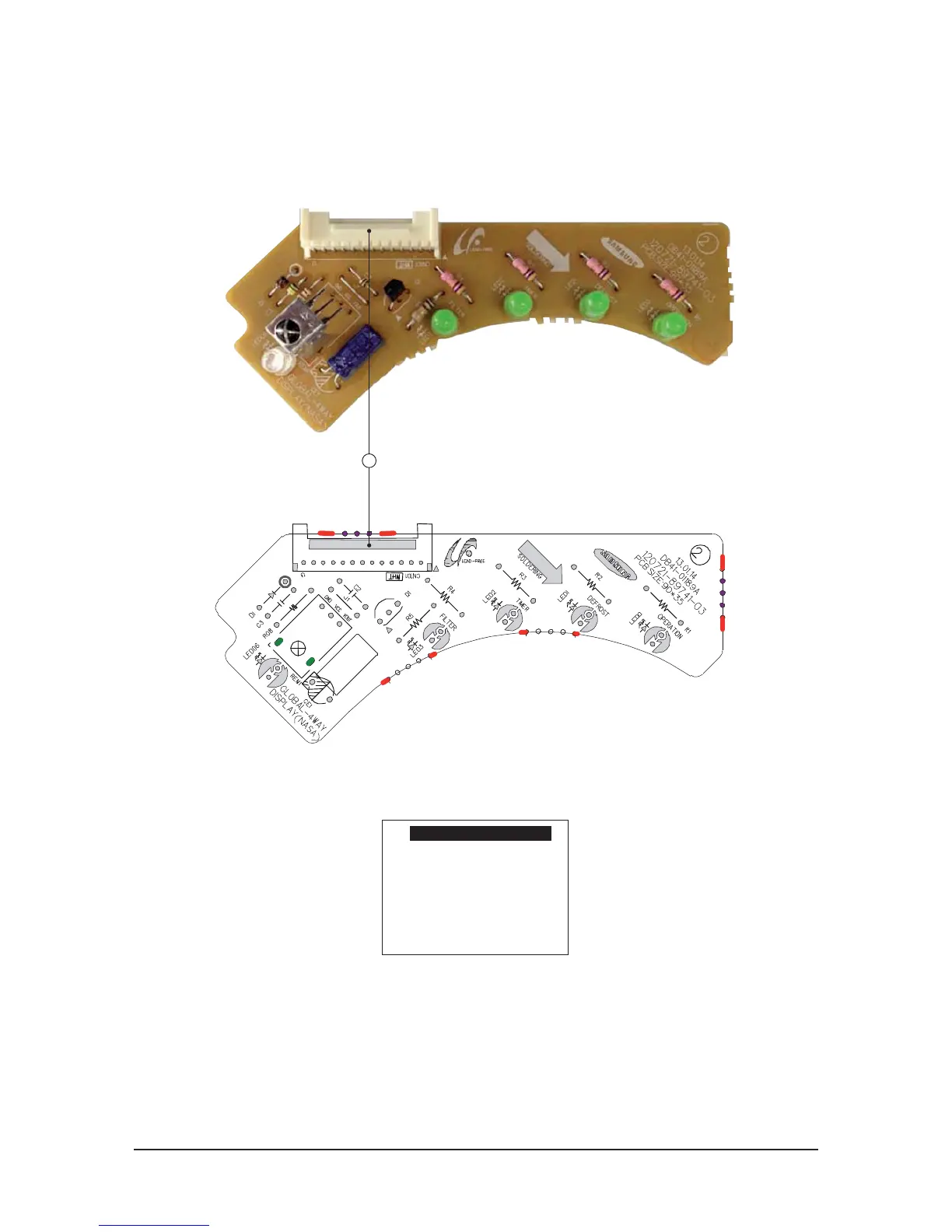

Samsung AC030JN4DCH - Panel PCB

PCB Diagram and Parts List
Samsung Electronics 5-3
①
#1:DC12V
#2~6:LEDControlSignal
#7:Notused
#8:RemoconSignalOut
#9:Notused
#10:RemoconSignalIn
#12:Vcc
#13:Notused
CN01-DISPLAY
5-1-2 Panel PCB
1
