PCB Diagram
Samsung Electronics 119

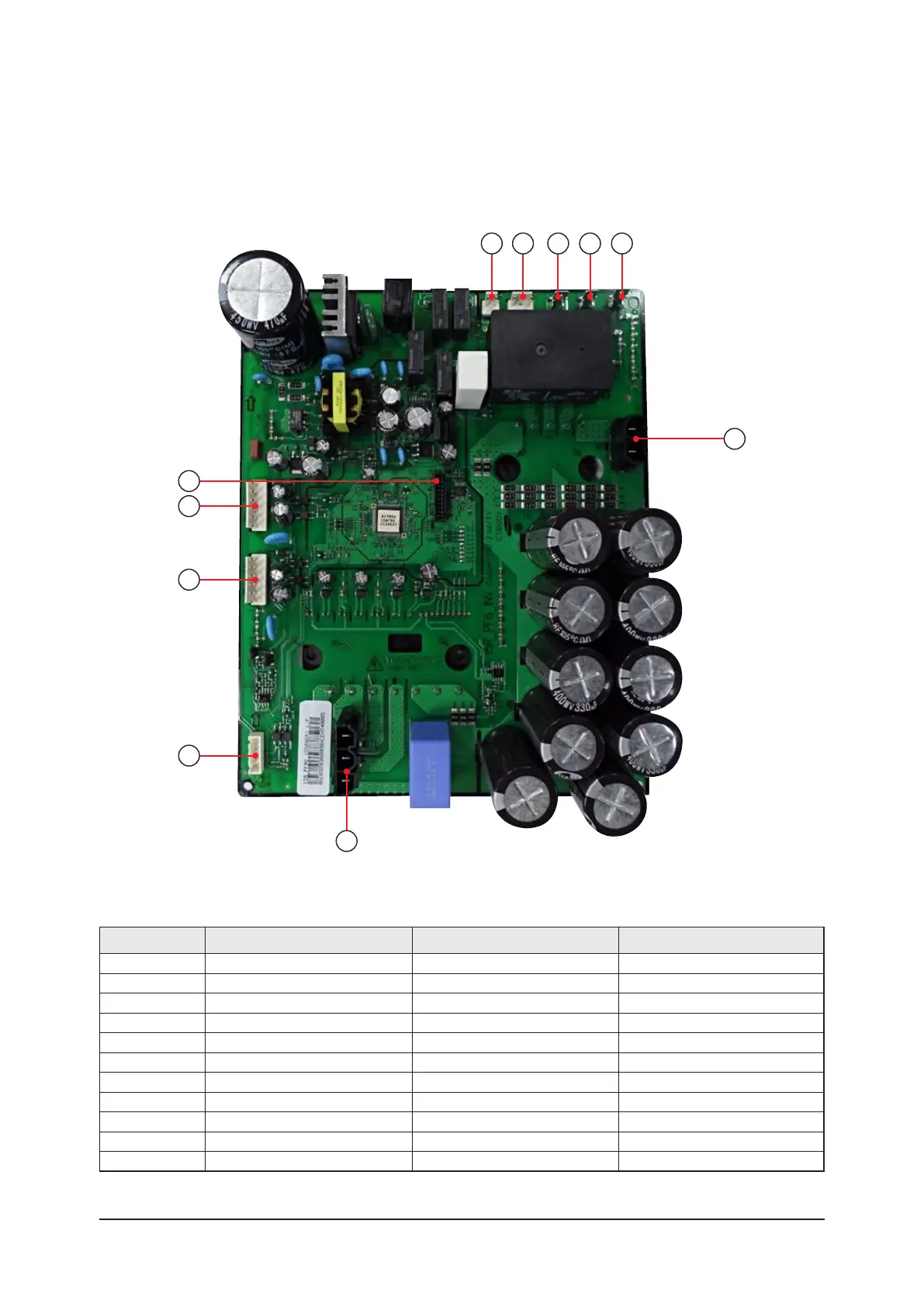

█ INVERTER PCB
(AE080/090/120/160RX**GG)
This Document can not be used without Samsung’s authorization.
No. Local Function Description
1 CN400 COMP 42819-3213 BLK
2 CN101 REACTOR HLW1005-02 BLK
3 R AC POWER YTR250
4 S AC POWER YTR250
5 T AC POWER YTR250
6 CN150 AC POWER YW396-03AV WHT
7 CN151 HIGH PRESSURE SWITCH YW396-02V WHT
8 CN551 DOWNLOAD YDW200-20 BLK
9 CN901 FAN 2 YW396-06V WHT
10 CN900 FAN 1 YW396-06V WHT
11 CN351 COMM SMW250-06 WHT
1
11
10
9
8
7 6 5 4 3
2
