PCB Diagram
118 Samsung Electronics

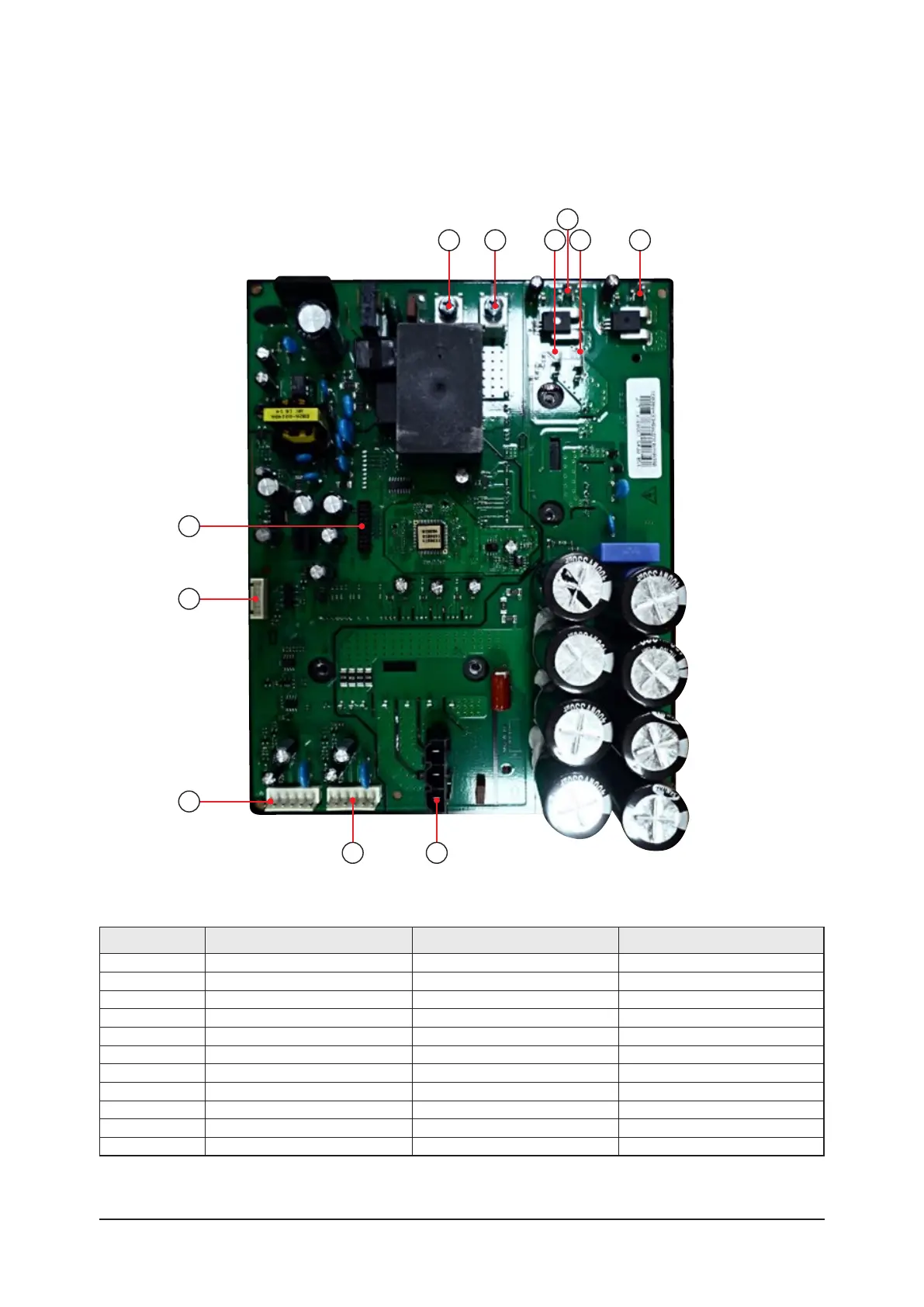

█ INVERTER PCB
(AE120/160RX**EG)
This Document can not be used without Samsung’s authorization.
No. Local Function Description
1
CN401 COMP 42819-3213 BLK
2 REACTOR_A2 REACTOR_A YTR250
3 REACTOR_A1 REACTOR_A YTR250
4 REACTOR_B2 REACTOR_B YTR250
5 REACTOR_B1 REACTOR_B YTR250
6 N AC POWER OT-048
7 L AC POWER OT-048
8 CN551 DOWNLOAD YDW200-20 BLK
9 CN351 COMM SMW250-06 WHT
10 CN901 FAN 1 YW396-06V WHT
11 CN911 FAN 2 YW396-06V WHT
7 6 5 3
4
2
8
9
10
11 1
To Next Page
