PCB Diagram
Samsung Electronics 117

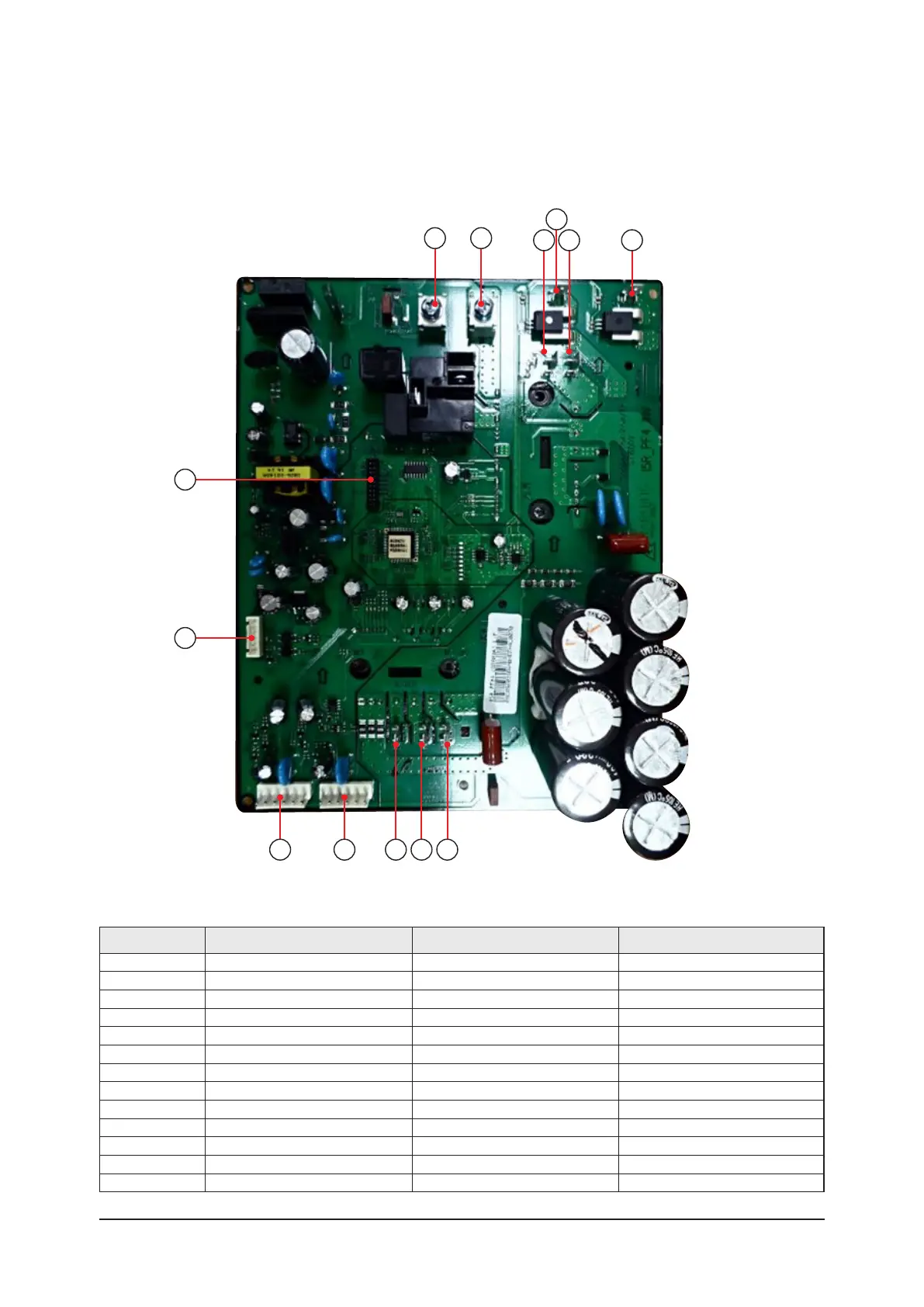

█ INVERTER PCB
(AE090RX**EG)
This Document can not be used without Samsung’s authorization.
No. Local Function Description
1 CN401 COMP U YTR250
2 CN402 COMP V YTR250
3 CN403 COMP W YTR250
4 REACTOR_A2 REACTOR_A YTR250
5 REACTOR_A1 REACTOR_A YTR250
6 REACTOR_B2 REACTOR_B YTR250
7 REACTOR_B1 REACTOR_B YTR250
8 N AC POWER OT-048
9 L AC POWER OT-048
10 CN551 DOWNLOAD YDW200-20 BLK
11 CN351 COMM SMW250-06 WHT
12 CN901 FAN 1 YW396-06V WHT
13 CN911 FAN 2 YW396-06V WHT
