PCB Diagram
Samsung Electronics 121

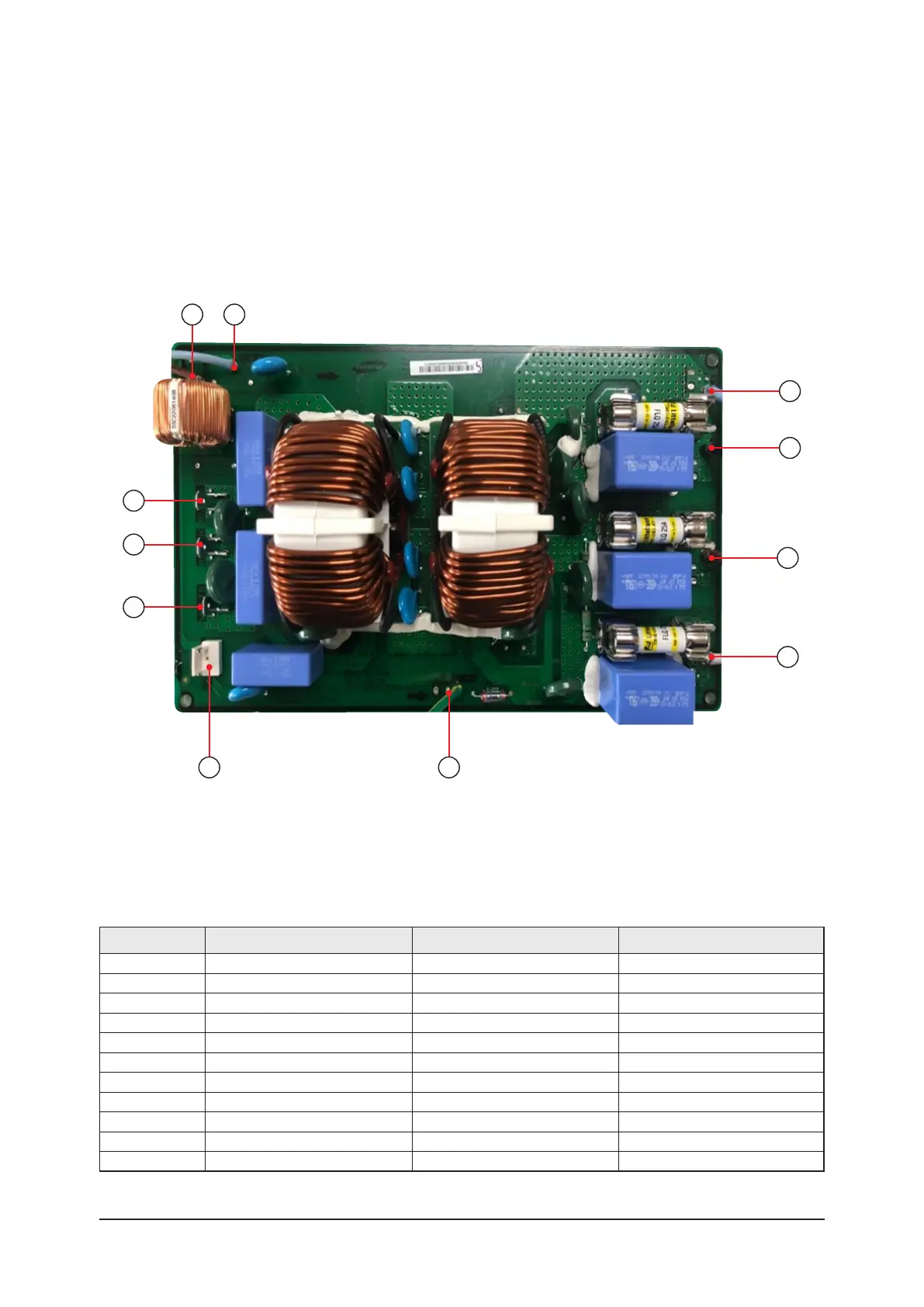

█ EMI PCB
(AE080/090/120/160RX**GG)
1 2
9
10
11
78
5
6
3
4
This Document can not be used without Samsung’s authorization.
No. Local Function Description
1
CN01 AC POWER YW396-03AV WHT
2 EARTH EARTH YEL/GRN WIRE
3 R-IN AC POWER WHT WIRE
4 S-IN AC POWER BRN WIRE
5 T-IN AC POWER BLK WIRE
6 N-IN AC POWER SKY/BLU WIRE
7 N-INV AC POWER SKY/BLU WIRE
8 T-INV AC POWER BRN WIRE
9 T-OUT AC POWER YTR250
10 S-OUT AC POWER YTR250
11 R-OUT AC POWER YTR250
To Next Page
