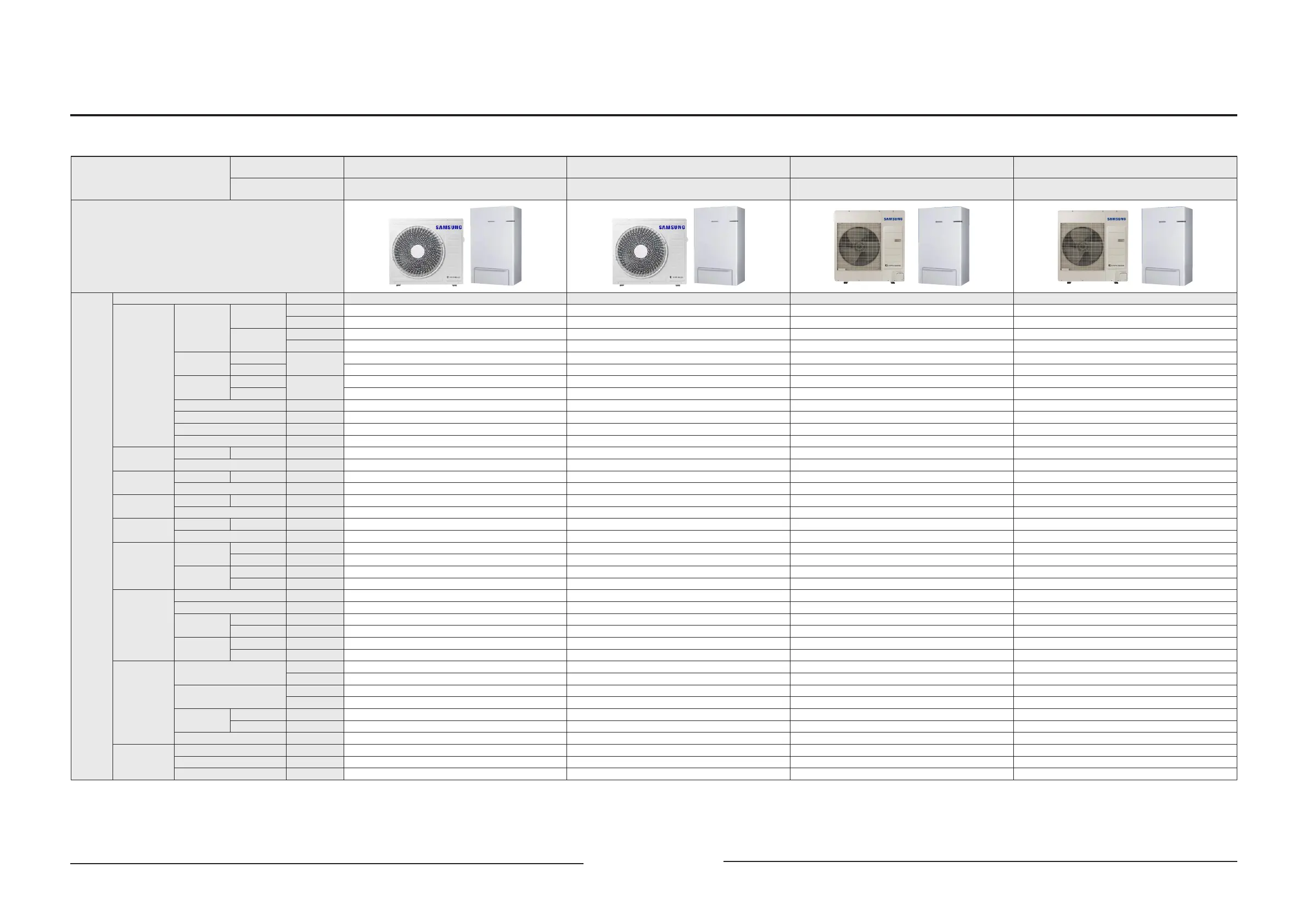

Samsung AE080RXYDEG - Page 13

General Overview
Samsung Electronics 17
16 Samsung Electronics
Product Specifications (cont.)
Model Name
Indoor Unit
AE090RNYDEG AE090RNYDEG AE090RNYDEG AE090RNYDGG
Outdoor Unit AE040RXEDEG AE060RXEDEG AE090RXEDEG AE090RXEDGG
Outdoor Unit & Tank Hydro Unit Figure
System
Mode - Heat Pump (A2W) Heat Pump (A2W) Heat Pump (A2W) Heat Pump (A2W)
A2W
Condition #1.
(H A7/W35
C A35/W18)*1
Nominal
Capacity
Heating
W
4,400 6,000 9,000 9,000
Btu/h 15,000 20,500 30,700 30,700
Cooling
W
5,000 6,500 8,700 8,700
Btu/h 17,100 22,200 29,700 29,700
Power Input
(Nominal)
Heating
W
846 1,220 1,870 1,870
Cooling 1,090 1,470 2,110 2,110
Current Input
(Nominal)
Heating
A
3.9 5.6 8.6 3.0
Cooling 4.9 6.7 9.7 3.4
COP (Nominal Heating) W/W 5.20 4.92 4.81 4.81
EER (Nominal Cooling) W/W 4.59 4.42 4.12 4.12
SCOP (35℃) - 4.58 4.58 4.45 4.45
SEER *2 - 4.40 4.73 5.09 5.09
A7/W45
Capacity Heating W
4,200 5,600 8,600 8,600
COP W/W 3.85 3.71 3.69 3.69
A7/W55
Capacity Heating W
3,900 5,200 8000 8000
COP W/W 2.95 2.87 2.93 2.93
A2/W35
Capacity Heating W
4,200 5,200 7700 7700
COP W/W 3.82 3.51 3.41 3.41
A-7/W35
Capacity Heating W 4,600 5500 7900 7900
COP W/W 2.97 2.75 2.72 2.72
Field
Wiring
Hydro Unit
MCA A
18.6 18.6 18.6 9.2
MFA A 23.3 23.3 23.3 11. 5
Outdoor Unit
MCA A
16.0 16.0 22.0 10.0
MFA A 20.0 20.0 27. 5 16.1
Water
Connections
Water Flow Rate (Std)[H/C] LPM
12.7/14.4 17. 3/18.8 26/25.1 26/25.1
Water Pressure (Max) bar 3 3 3 3
Water Pipe
Inlet Φ, inch
BSPP male 1 1/4" BSPP male 1 1/4" BSPP male 1 1/4" BSPP male 1 1/4"
Outlet Φ, inch BSPP male 1 1/4" BSPP male 1 1/4" BSPP male 1 1/4" BSPP male 1 1/4"
Leaving Water
Temperature
Heating °C
15~65 15~65 15~65 15~65
Cooling °C 5~25 5~25 5~25 5~25
Refrigerant
Connections
Liquid Pipe
Φ, mm
6.35 6.35 6.35 6.35
Φ, inch 1/4" 1/4" 1/4" 1/4"
Gas Pipe
Φ, mm
15.88 15.88 15.88 15.88
Φ, inch 5/8" 5/8" 5/8" 5/8"
Installation
Limitation
Max. Length m 30 30 35 35
Max. Height m 20 20 20 20
Chargeless Length m 15 15 15 15
Operating
Temp. Range
Heating
°C -25~35 -25~35 -25~35 -25~35
Cooling
°C 10~46 10~46 10~46 10~46
D.Hot Water
°C -25~43 -25~43 -25~43 -25~43
