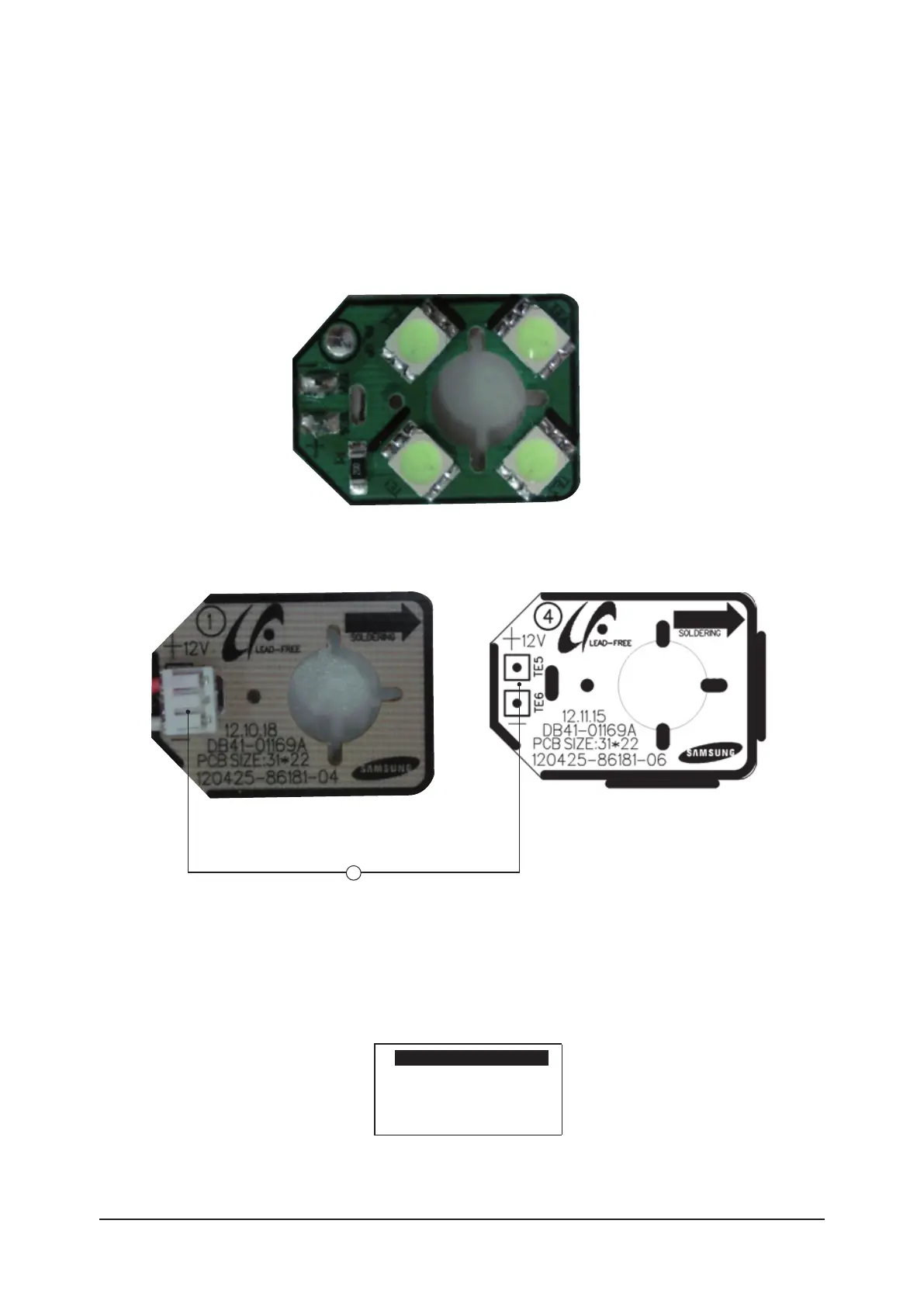

PCB Diagram

Samsung Electronics 5-7

516 ASS'Y PCB SUB LIGHT

①

#1. 12V

#2. Lighting Control signal

CN01 - Lighting
