Samsung AF24FSSDAWKX - Assy Pcb Sub-Network

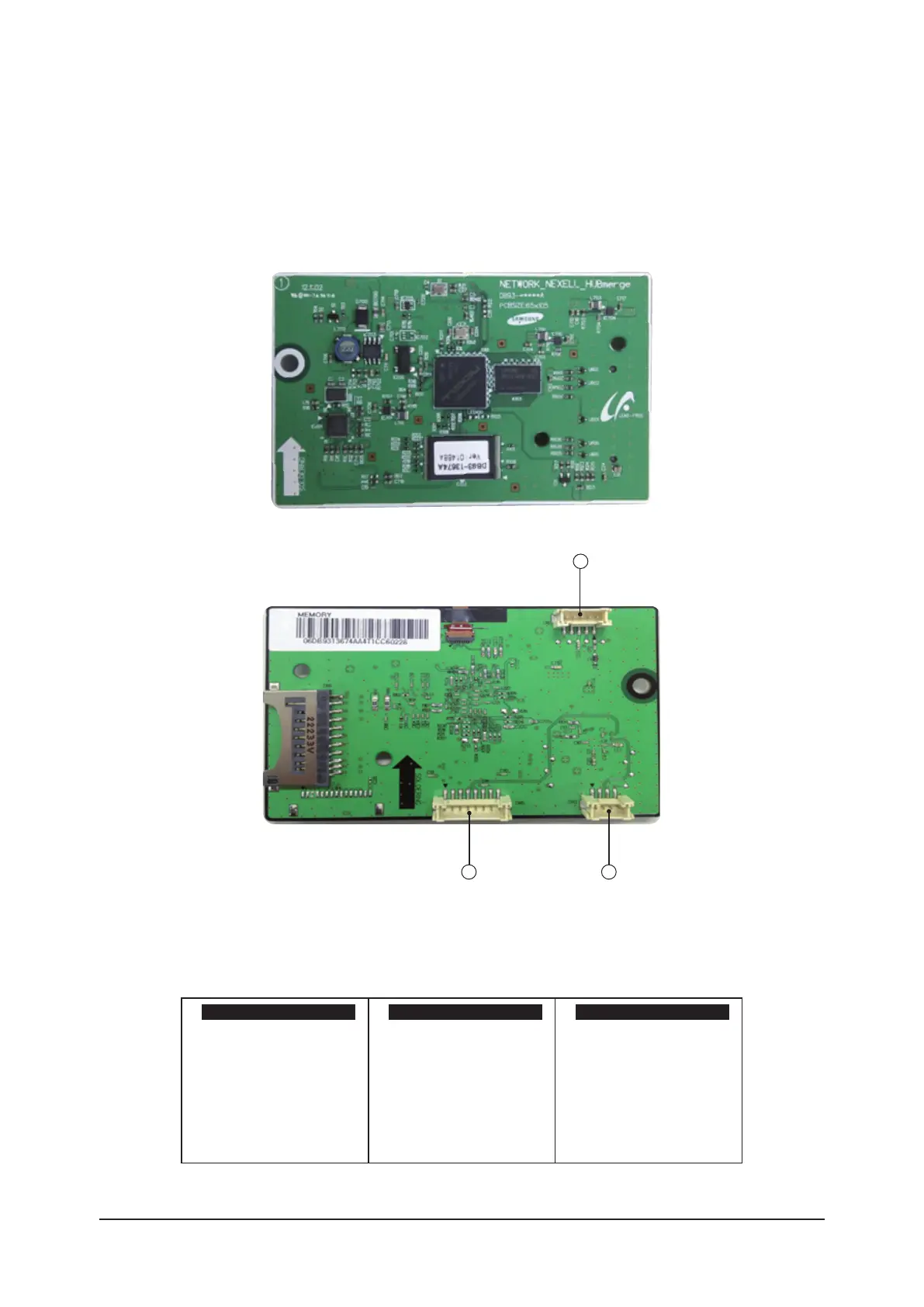

PCB Diagram
5-8 Samsung Electronics
517 ASS'Y PCB SUBNETWORK
①
#1. NC
#2. NC
#3. GND
#4. USB D+ [Bluetooth Control]
#5. USB D- [Bluetooth Control]
#6. +5V
#7. NC
#8. NC
②
#1. MCU RXD
[UART Transmission]
#2. MCU TXD [UART Reception]
#3. 12V
#4. GND
#5. NC
③
#1. GND
#2. USB D- [
Wireless LAN Control]
#3. USB D+ [
Wireless LAN Control]
#4. +5V
CN5 – Bluetooth Module CN1 - DISPLAY PBA Connection CN3 - Wireless LAN Module
1 3
2
