Samsung AM160FNBFGB/EU User Manual

Disassembly and Reassembly
Samsung Electronics 3-85

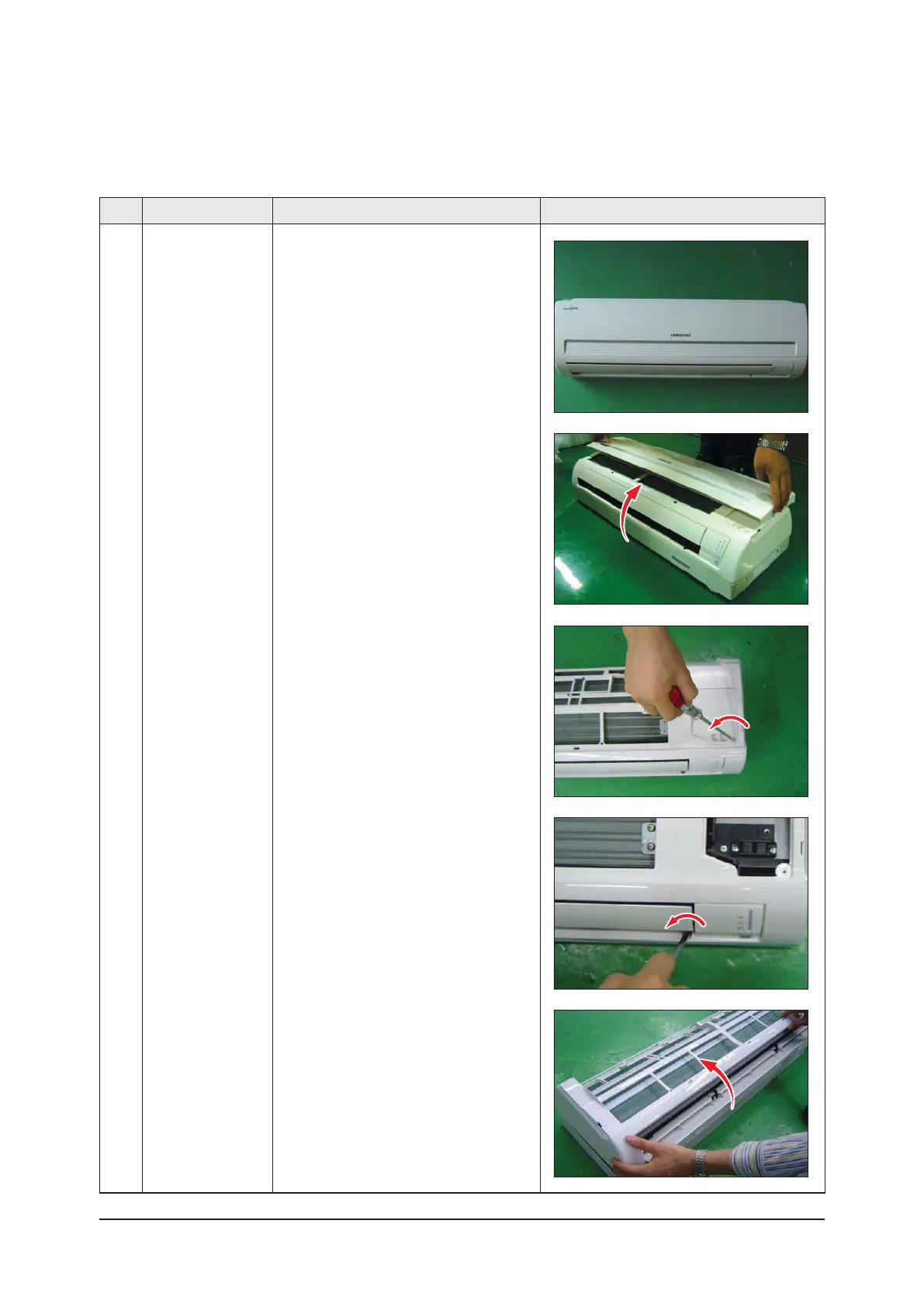

QWall Mounted type(Neo Forte without EEV)
No Parts Procedure Remark
1 Front Grille 1) Stop the air conditioner operation and shut
off the main power.
2) Open the Front Grille by pulling right and
left sides of the hook.
3) Loosen 1 of the right screw(CCW) and
detach the Terminal Cover. (Use +Screw
Driver.)
4) Detach the thermistor from the Front Grille.
5) Loosen 2 fixing screws(CCW) of Front Grille.
6) Unlock 3 hooks to fix Panel Front and Tray
Drain. (Use +Screw Driver.)
– All the procedure has to be verified because the cover should not open when the unit is installed.
