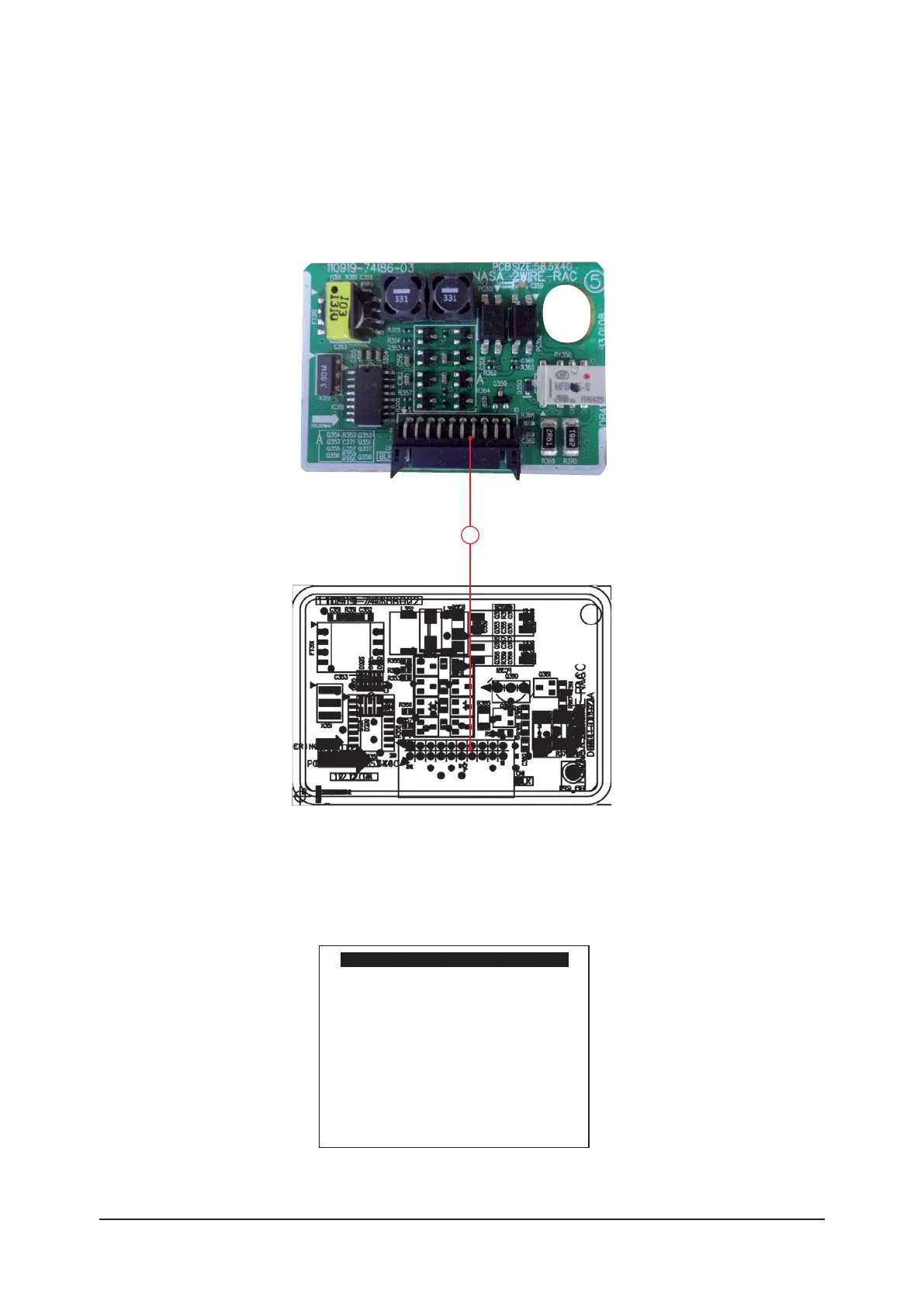

PCB Diagram and Parts List
Samsung Electronics 5-33
1
①
#1,#2,#19,#20:COMM. SIGNAL
#3,#18:EXTERNAL CONTROL
#4,#17:COMP CHECK
#5,#16:ERROR CHECK
#6:VCC(DC5V)
#7,#14:GND
#8,#13,#15:DC12V
#9~#12:COMM. SIGNAL
CN1-2WIRES COMM.
Wall Mounted type(A3050) (cont.)
■ Sub PCB

Samsung AM160FNBFGB/EU Specifications

General

Model	AM160FNBFGB/EU
Type	Heat Pump
Cooling Capacity	16.0 kW
Heating Capacity	18.0 kW
Energy Efficiency Class (Cooling)	A++
Energy Efficiency Class (Heating)	A+
Refrigerant	R410A
Operating Temperature Range (Heating)	-20°C to 24°C
Power Supply	50Hz
Dimensions (Outdoor Unit)	940 x 330 mm
