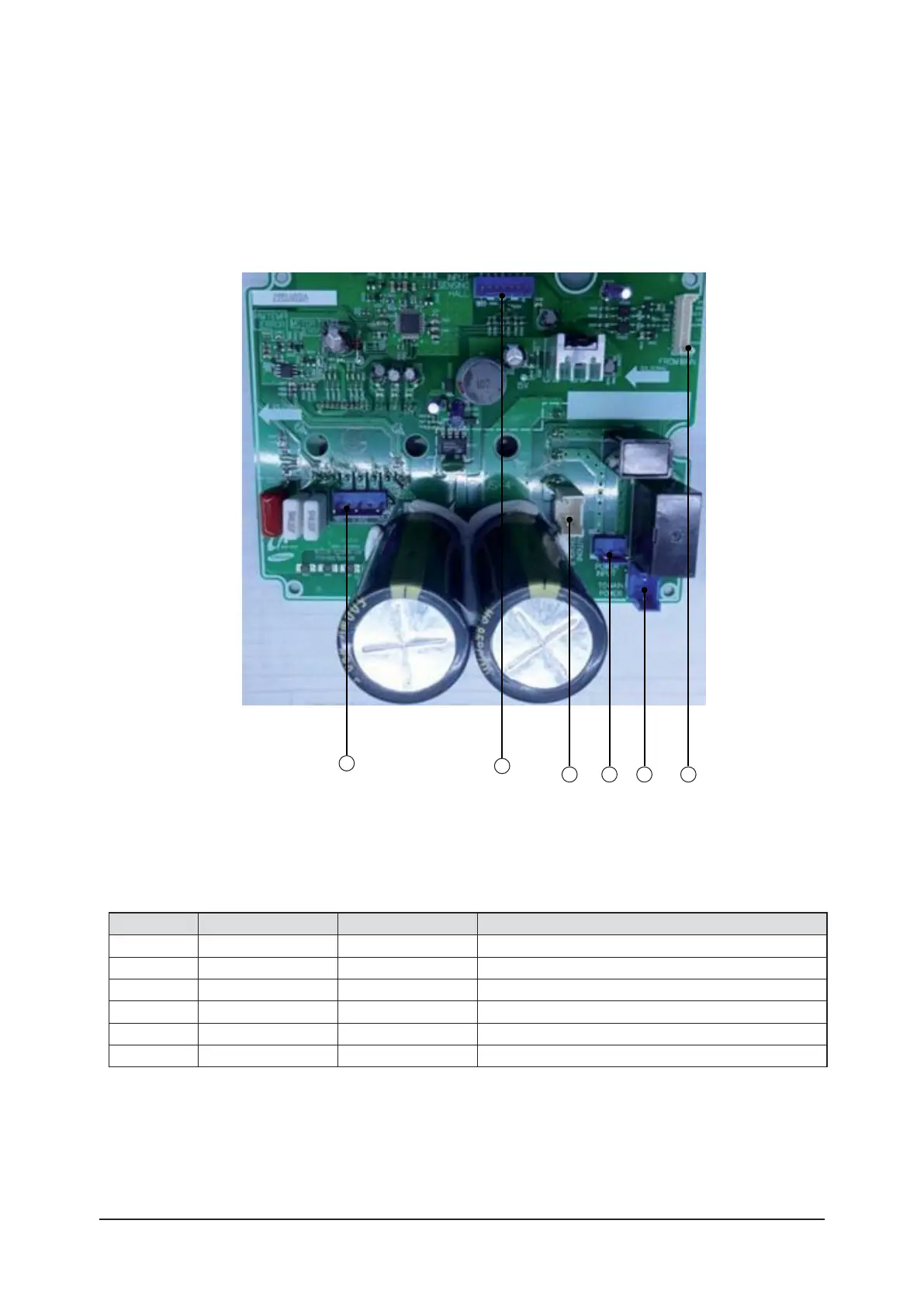

PCB Diagram and Parts List
5-38 Samsung Electronics
GD-S (Big Duct) (cont.)
- BLDC PBA
No part code location No. Description
1 3711-001080 CN12 Motor signal
2 3711-004712 CN11 Main to BLDC signal
33711-005852 CN15 Reactor connect
4 3711-003404 CN10 BLDC PBA power
5 3711-006048 CN14 Main PBA power
6 3711-000260 CN13 Motor power
6
345 2
1
