Disassembly and Reassembly
3-52 Samsung Electronics
No Parts Procedure Remark
4Evap Work is possible when Disassembling the Ass'y
Drain Pan.

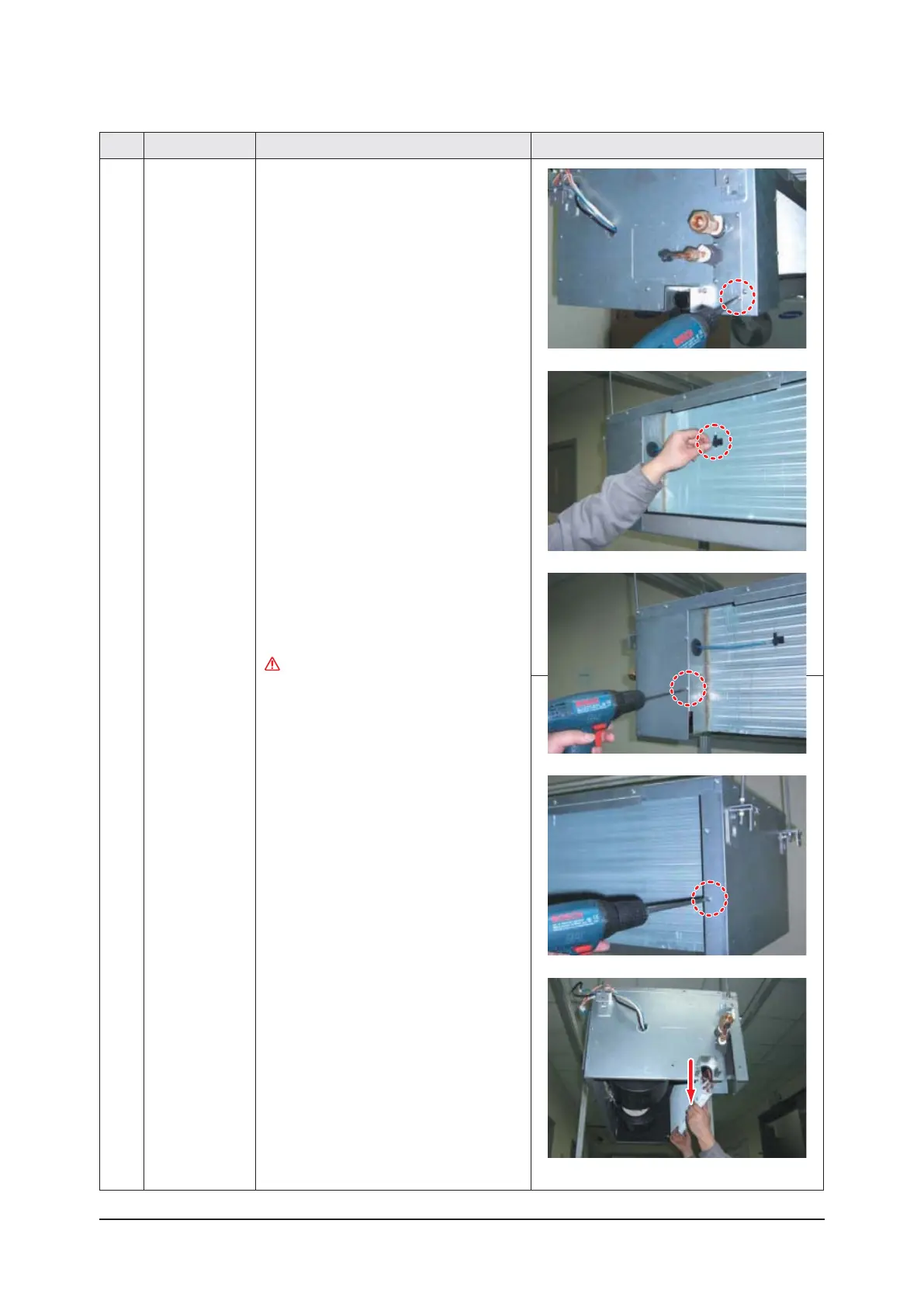

1) Disassemble 5 indicating screws to detach
Cover Pipe.(Use +Screw Driver.)
2) Disassemble Sensor on the Evap.
3) Disassemble 4 indicating screws which are in
the near of Hanger Plate to detach the Evap.
(2 screws each at left and right side)
(Use +Screw Driver.)
It needs 2 peoples.
