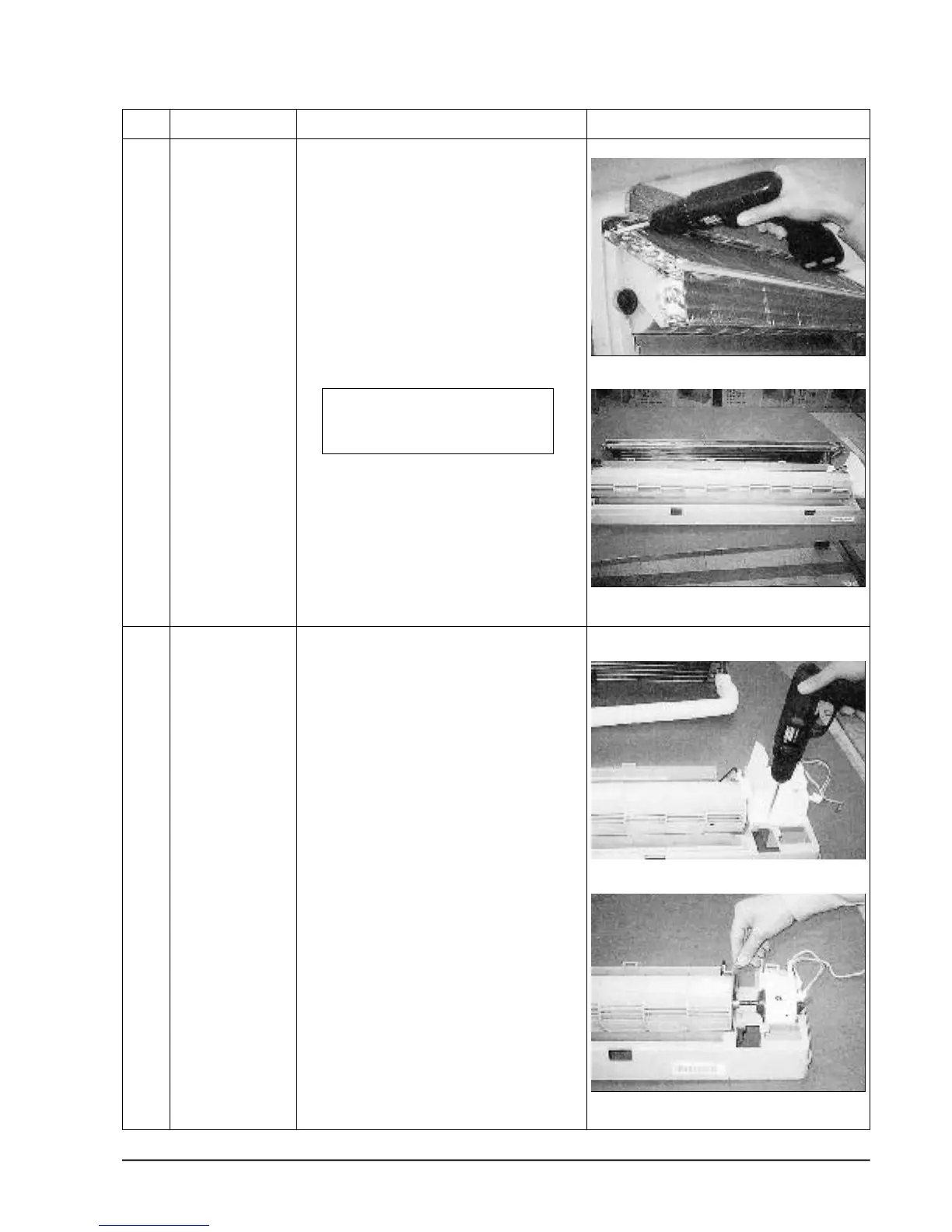

Disassembly and Reassembly
4-3
Samsung Electronics
No Parts Procedure Remark
5
6
Heat Exchanger
Fan Motor and
Cross Fan
1) Do " ①②③④ ", above.
2) Loosen the left screws of the heat exchanger.
1) Do " ①②③④⑤ ", above.
2) Loosen the fixing two screws and separate the
motor holder.
3) Loosen the fixing screw of motor fan.
(By use of M3 wrench)
Separate the motor from the fan.
Separate the fan motor the left holder bearing.
Lifting the heat exchanger up a little to
push the up side for separation from the
indoor unit
To Next Page
