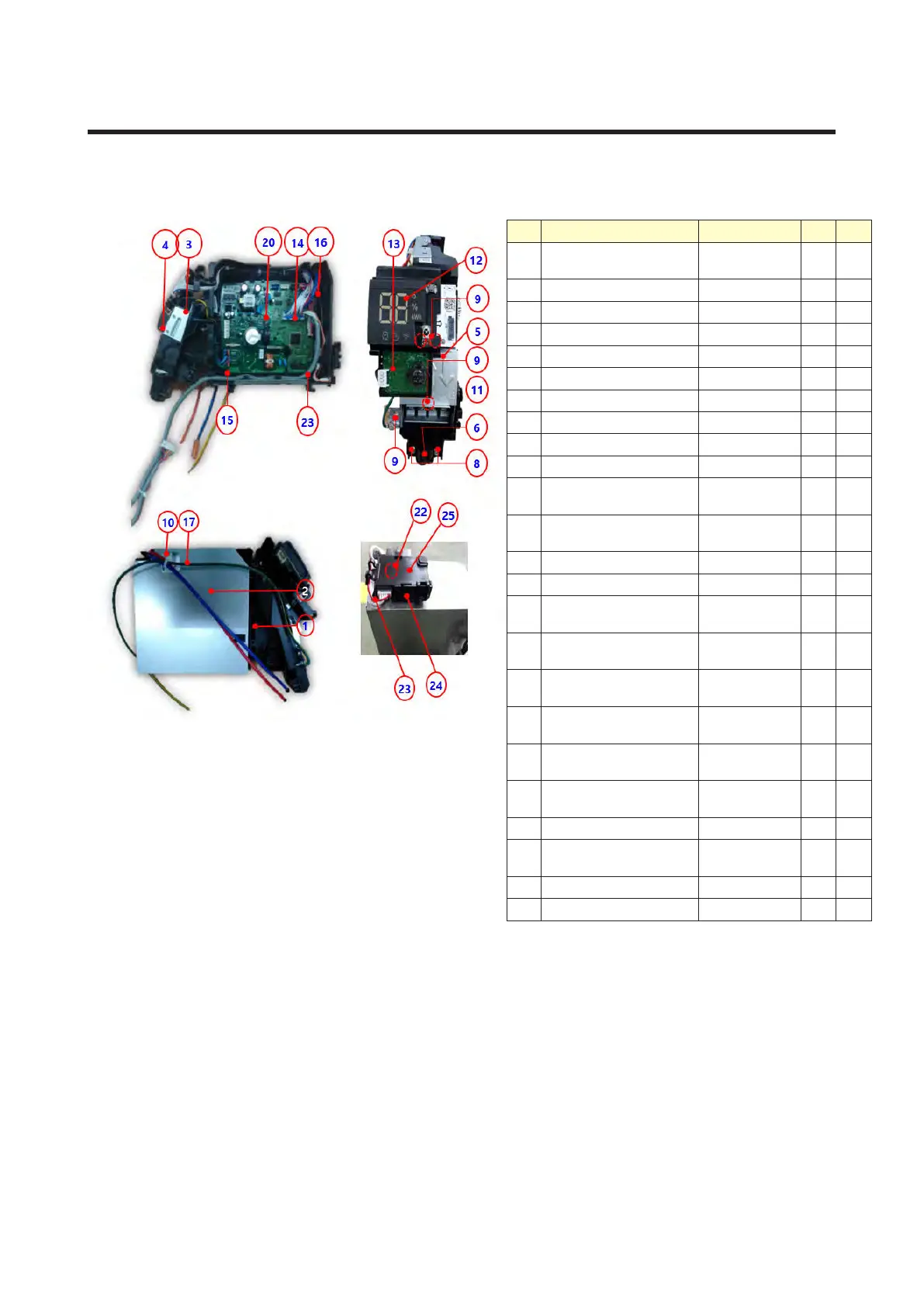

5. ASSY CONTROL
5-1 ASSY KIT CODE DB92-04845L
No NAME CODE Q’ty Unit
1
CASE CONTROL-IN (HIPS
(6300))
DB61-07432C 1 EA
2 PLATE CONTROL-LF DB61-07431A 1 EA
3 PLATE CONTROL-LOW DB61-07428A 1 EA
4 PLATE CONTROL-UP DB61-07429A 1 EA
5 PLATE CONTROL-SUB DB61-07427A 1 EA
6 HOLDER-WIRE DB61-05871A 1 EA
7 SCREW-TAPPING 6002-001163 1 EA
8 SCREW-TAPPING 6002-000213 2 EA
9 SCREW-SPECIAL 6003-001768 2 EA
10 CABLE TIE 6501-001075 1 EA
11
TERMINAL BLOCK_4P_
GLOBAL
DB37-00033A 1 EA
12
ASSY PCB DISPLAY_88_
External WIFI
DB92-04833C 1 EA
13 SENSOR PHOTO DB32-00270A 1 EA
14 SENSOR HUMIDITY DB32-00272A 1 EA
15
ASSY CONNECTOR WIRE-
POWER
DB93-17169A 1 EA
16
ASSY CONNECTOR WIRE-
COMM
DB93-17055B 1 EA
17
ASSY CONNECTOR WIRE-
EARTH
DB93-14245D 1 EA
18
ASSY CONNECTOR WIRE-
DC SIGNAL
DB93-17170A 1 EA
19
ASSY CONNECTOR WIRE-
FJM
DB93-17178A 1 EA
20
ASSY PCB MAIN_DLX_
GLOBAL
DB92-04839A 1 EA
22 W-LAN MODULE 4709-002610 1 EA
23
ASSY CONNECTOR WIRE-
DC SIGNAL
DB93-17190A 1 EA
24 CASE PCB DB61-07464A 1 EA
25 COVER PCB DB63-04265A 1 EA
