Samsung AR12TVFCAWKXAP - 5 Assy Control; Assy Kit Code Db92-04845 G,H

39

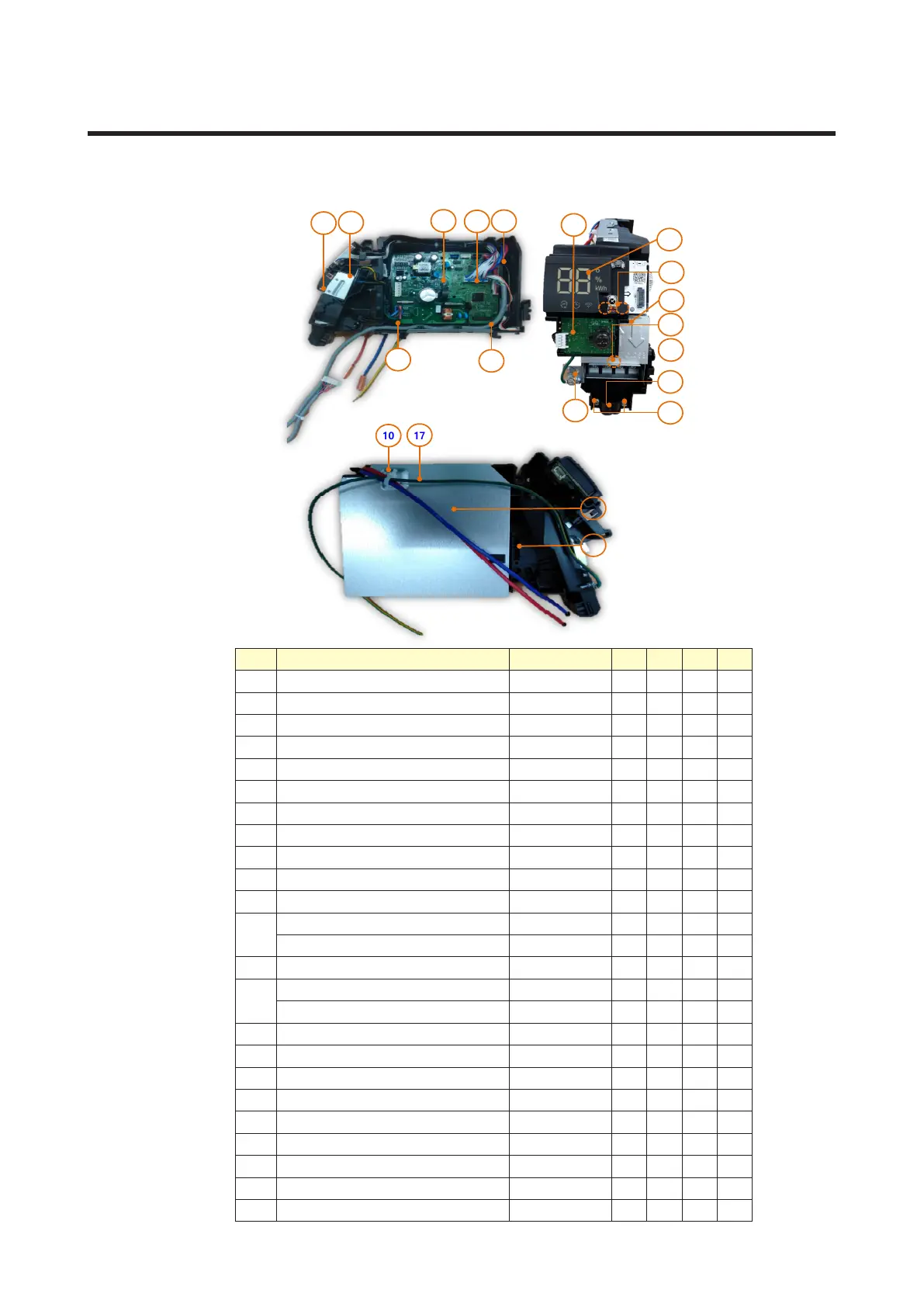

5-1 ASSY KIT CODE DB92-04845G,W,X
5. ASSY CONTROL
No NAME CODE G W X unit
1 CASE CONTROL-IN DB61-07432A 1 1 1 EA
2 PLATE CONTROL-LF DB61-07431A 1 1 1 EA
3 PLATE CONTROL-LOW DB61-07428A 1 1 1 EA
4 PLATE CONTROL-UP DB61-07429A 1 1 1 EA
5 PLATE CONTROL-SUB DB61-07427A 1 1 1 EA
6 HOLDER-WIRE DB61-05871A 1 1 1 EA
7 SCREW-TAPPING 6002-001163 1 1 1 EA
8 SCREW-TAPPING 6002-000213 2 2 2 EA
9 SCREW-SPECIAL 6009-001001 3 3 3 EA
10 CABLE TIE 6501-001075 1 1 1 EA
11 TERMINAL BLOCK_4P_GLOBAL DB37-00033A 1 1 1 EA
12 ASSY PCB DISPLAY_88_WIFI DB92-04833B 1 0 1 EA
ASSY PCB DISPLAY_88_External WIFI DB92-04833C 0 1 0 EA
13 SENSOR PHOTO DB32-00270A 0 1 0 EA
14 SENSOR TEMP DB32-00277A 1 0 0 EA
SENSOR HUMIDITY DB32-00272A 0 1 1 EA
15 ASSY CONNECTOR WIRE-POWER DB93-17169A 1 1 1 EA
16 ASSY CONNECTOR WIRE-COMM DB93-17055B 1 1 1 EA
17 ASSY CONNECTOR WIRE-EARTH DB93-14245D 1 1 1 EA
18 ASSY CONNECTOR WIRE-DC SIGNAL DB93-17170A 0 1 0 EA
20 ASSY PCB MAIN_DLX DB92-04839B 1 1 1 EA
22 W-LAN MODULE 4709-002610 0 1 0 EA
23 ASSY CONNECTOR WIRE-DC SIGNAL DB93-17190A 0 1 0 EA
24 CASE PCB DB61-07464A 0 1 0 EA
25 COVER PCB DB63-04265A 0 1 0 EA
1
2
10
17
5
6
8
11
9
9
9
12
13
3
4
14
16
15
20
23
