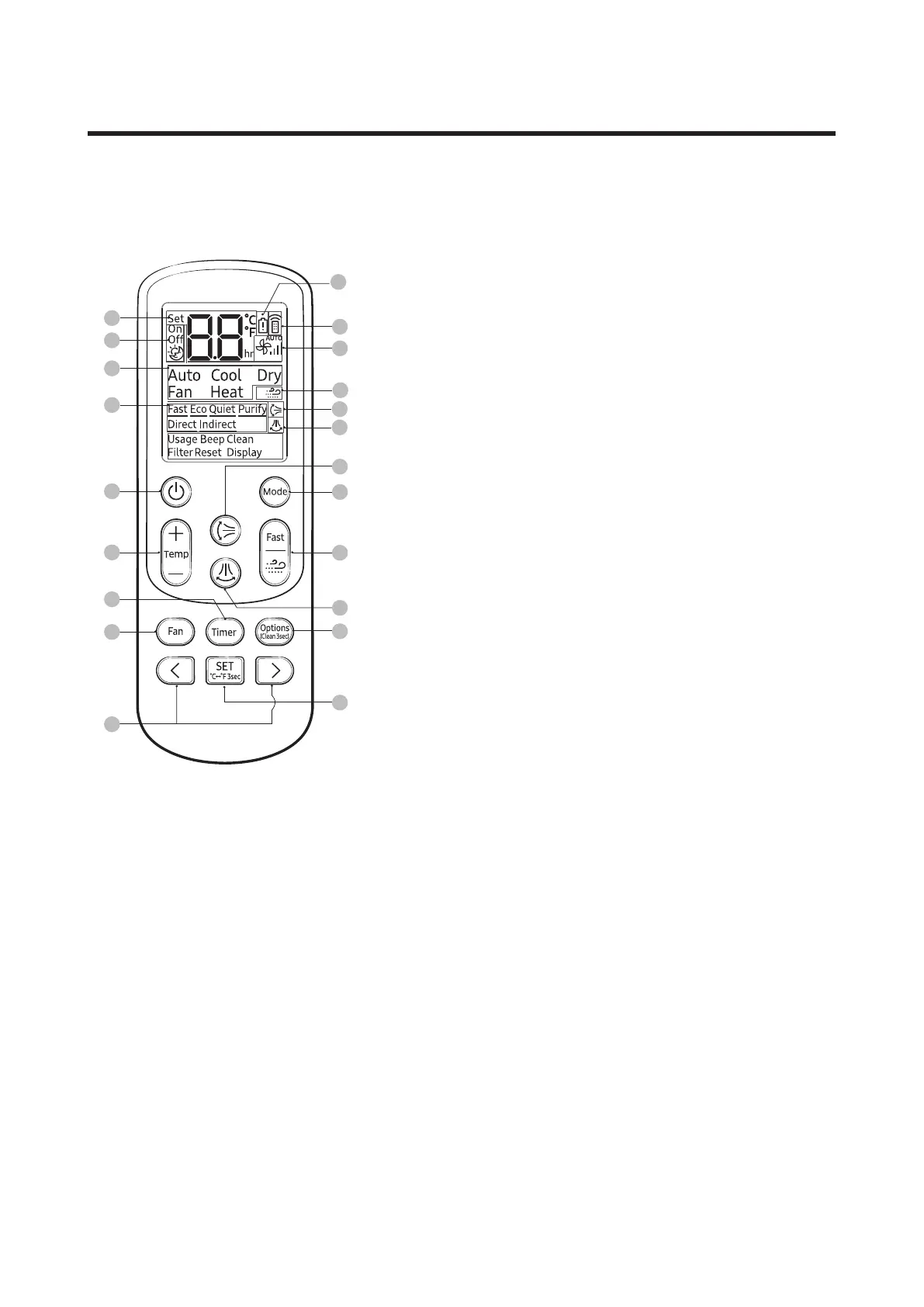

9-2 Wireless Remote control-Buttons and Display
DB96-24901F
08
09
10
07
01
05
06
16
17
18
20
21
02
03
04
11
12
13
19
14
15
01
Set temperature indicator
02
Timer option indicator
03
Operation mode indicator
04
Options indicator
05
Low battery indicator
06
Transmit indicator
07
Fan speed indicator
08
Wind-Free indicator
09
Vertical air swing indicator
10
Horizontal air swing indicator
11
Power button
12
Temperature button
13
Timer button
14
Fan speed button
15
Direction button / Selection button
16
Vertical air swing button
17
Mode button
18
Fast/Wind-Free butt
19
Horizontal air swing button
20
Options/Clean button
21
SET button/Temperature type button(
°C<->°F
)
