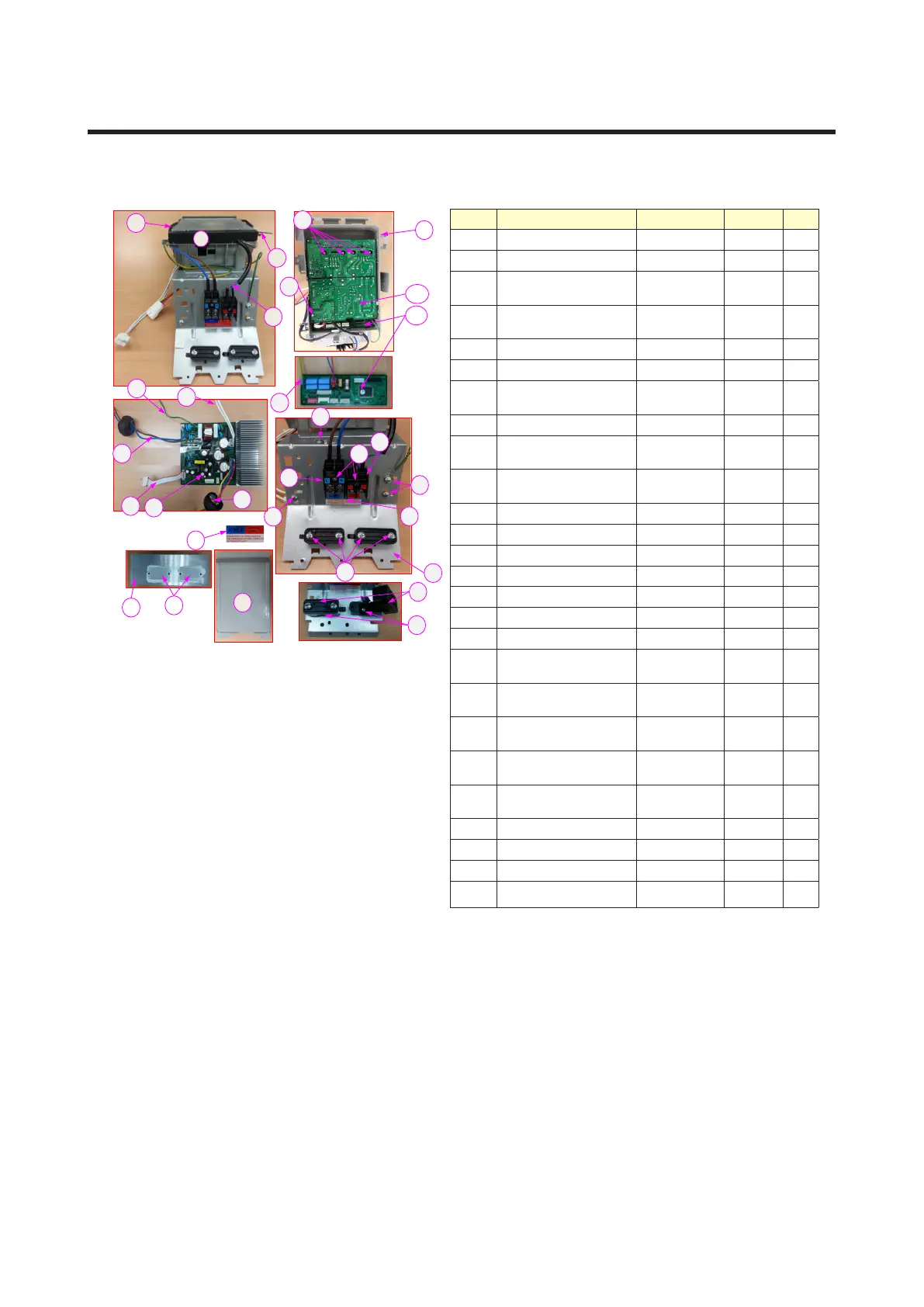

5-2 ASSY KIT CODE DB92-04849G
7
11
8
4
18
1
25
26
3
10
19
16
17
22
23
23
24
22
6
9
29
28
23
27
13
12
14
10
2
15
5
No NAME CODE Q'ty unit
1 ASSY-THERMAL GREASE 0205-000178 0.002 KG
2 SCREW-MACHINE (TB) 6001-000722 2 EA
3 SCREW-TAPPING (CLAMP
4EA)
6002-000234 4 EA
4 SCREW-TAPPING (CLAMP
2EA, CASE 1EA)
6002-000239 3 EA
5 SCREW-TAPPING (PBA) 6002-000630 1 EA
6 SCREW-TAPPING (EARTH) 6009-001001 4 EA
7 ASSY-SCREW MACHINE
(H/S??)
DB91-00933A 3 EA
8 HOLDER-WIRE CLAMP DB61-00250A 2 EA
9 CASE CONTROL LOW (WW,
SI,Q-480)
DB61-06722A 1 EA
10 COVER CONTROL OUT
(WW, SI)
DB63-04234A 1 EA
11 PLATE CONTROL(Q-480) DB61-04690B 1 EA
12 SPRING DB81-00635A 2 EA
13 SEAL DB62-11637T 0.153 EA
14 LABEL DB98-34030A 1 EA
15 HEAT SINK DB62-13008A 1 EA
16 TERMINAL BLOCK DB65-00274A 1 EA
17 TERMINAL BLOCK DB37-00036A 1 EA
18 ASSY CONNECTOR WIRE-
POWER
DB93-16371B 1 EA
19 ASSY CONNECTOR WIRE-
COMM
DB93-16402A 1 EA
20 ASSY CONNECTOR WIRE-
COMP
DB93-09497B 1 EA
21 ASSY CONNECTOR WIRE-
EARTH
DB93-12121B 1 EA
22 ASSY CONNECTOR WIRE-
REACTOR
DB93-17175A 1 EA
23 SENSOR TEMP DB32-00257A 1 EA
24 ASSY MODULE DB92-04837E 1 EA
23 ASSY MODULE DB92-04837B 1 EA
ASSY MODULE
DB92-04837E 0 EA
