Disassembly and Reassembly
4-28Samsung Electronics
No Parts Procedure Remark

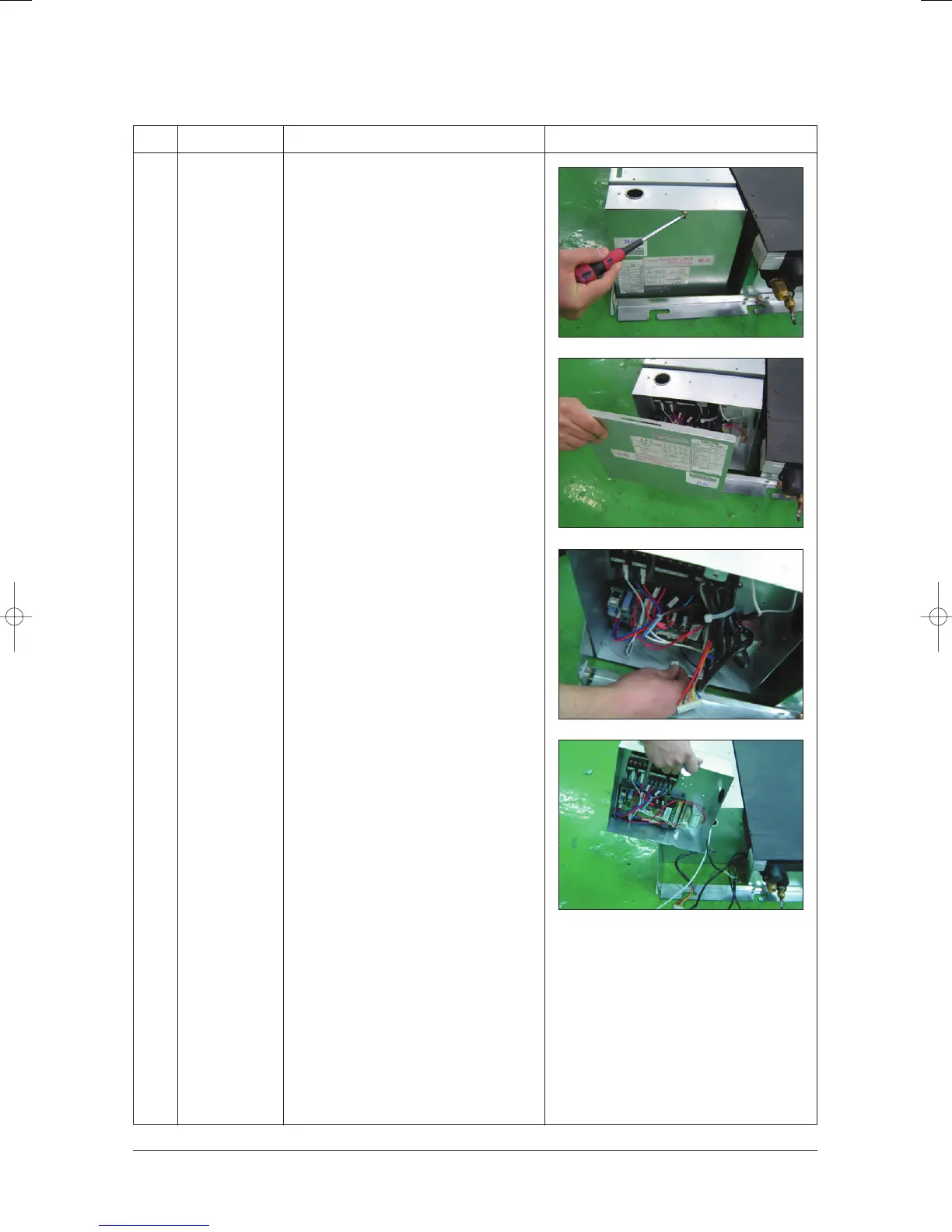

3 Ass'y Control In 1) After disassembling indicating screw,
detach the Cover-Control.
2) Detach the Motor-Fan in and Sensor
Connector connected to PCB.
3) Hold the Ass'y Control In by hand to lift up
a little and then release the status of
hanging on the hanging slot.
