Disassembly and Reassembly
Samsung Electronics4-29

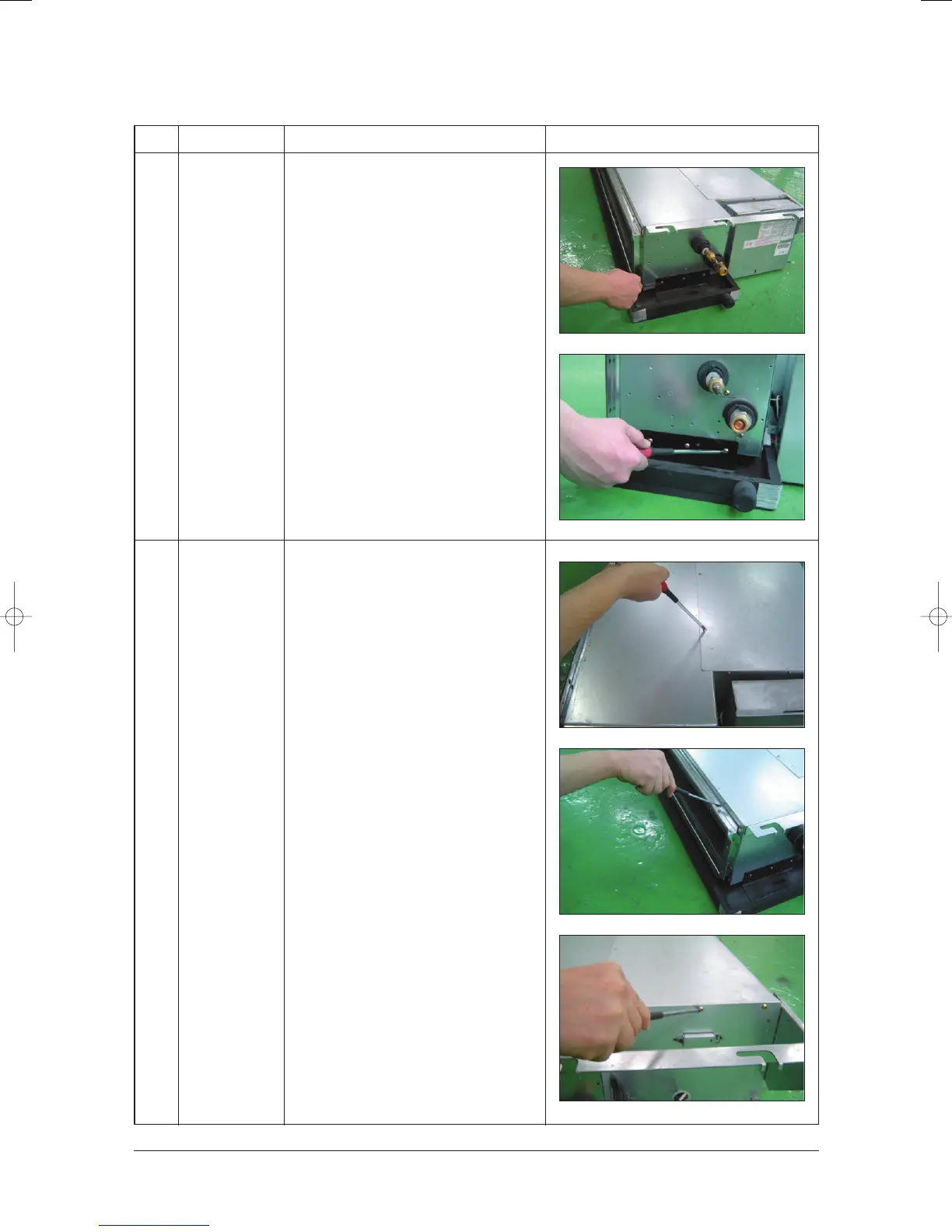

No Parts Procedure Remark
4
5
Ass'y Drain Pan
Ass'y Evap
1) Disassemble indicating screws to detach
Ass'y Drain Pan. (screws each at left and
right side)
✳ Work is possible when disassembling
the Ass'y Drain Pan.
1) Disassemble indicating screws.
(each at left and right side)
2) Disassemble indicating screws.
3) Disassemble indicating screws.
✳ It is possible at the status of No.3 Ass'y
Control In disassembly at the time.
24103A(1)_1 12/23/05 12:01 PM Page 3-38
To Next Page
