Samsung Electronics4-47
Disassembly and Reassembly

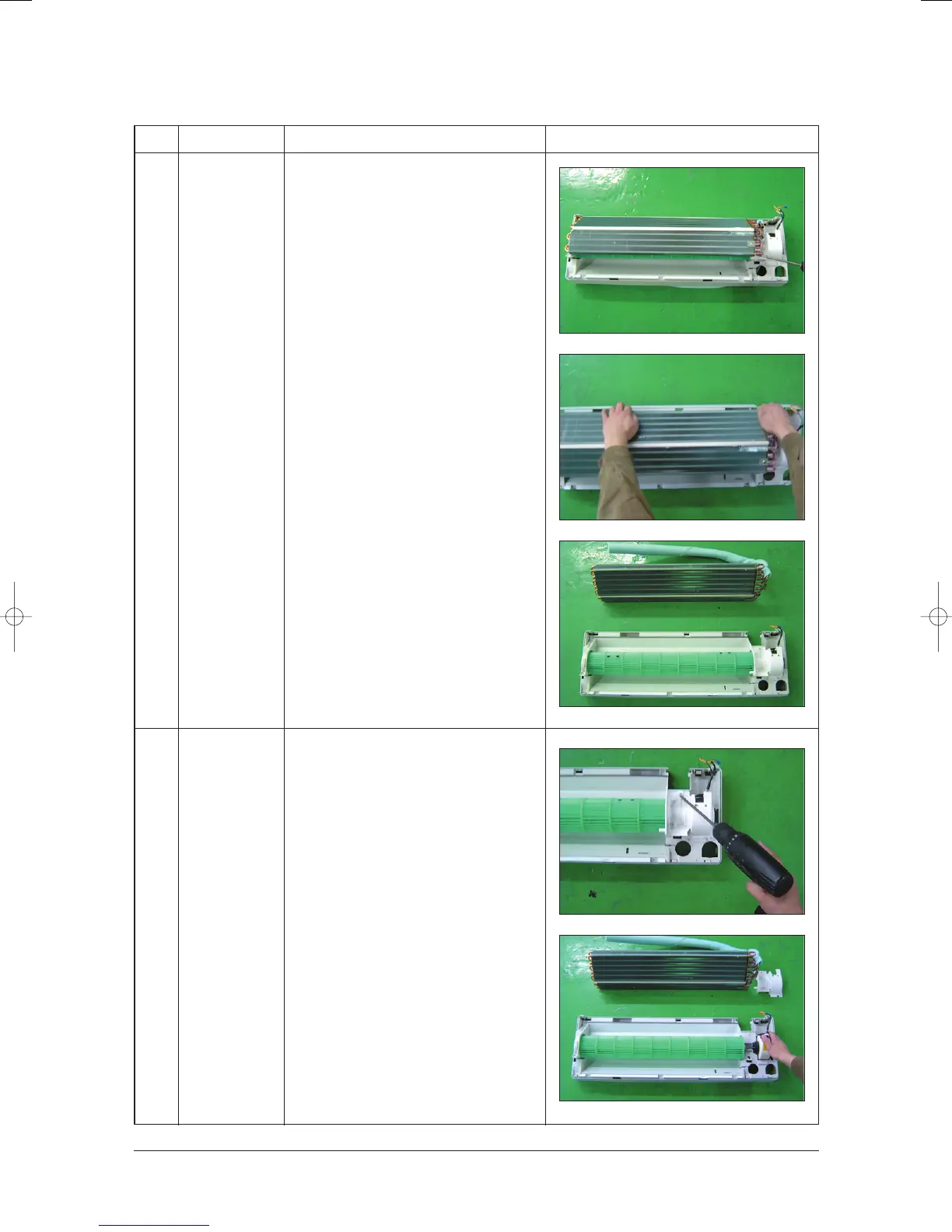

No Parts Procedure Remark
4
5
Ass'y Evap
Fan Motor
&
Cross Fan
1) Loosen 2 fixing earth screws of right side.
2) Detach the Connection Pipe.
3) Detach the Holder Pipe at the rear side.
4) Loosen 3 fixing screws of right and left
side.
5) Detach the Heat Exchanger from the
indoor unit.
1) Loosen 2 fixing screws and detach the
Motor Holder.
2) Loosen the fixing screw of Fan Motor.
(with a M3 wrench)
3) Detach the Fan Motor from the Fan.
4) Detach the Fan from the left Holder
Bearing.
