Disassembly and Reassembly
4-52Samsung Electronics
No Parts Procedure Remark

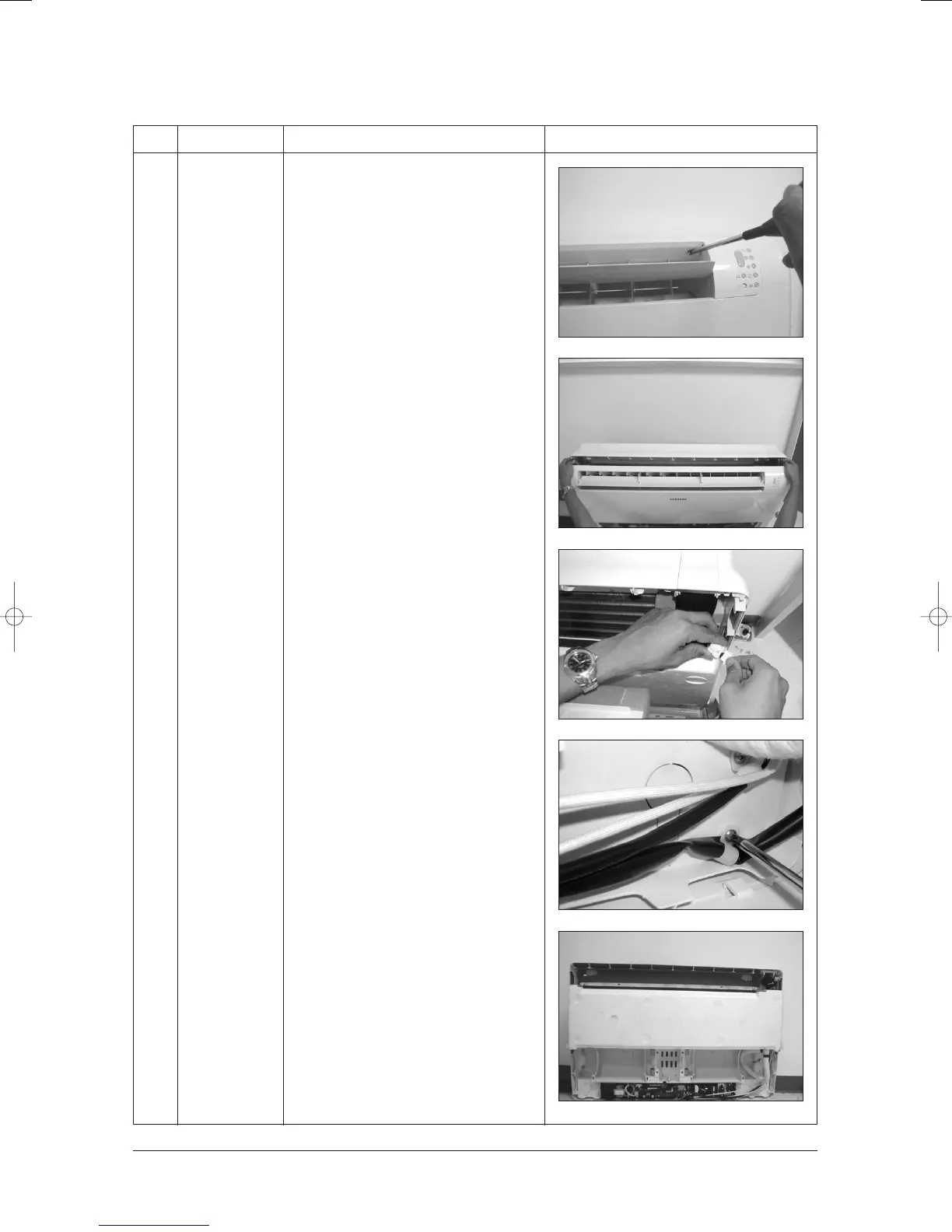

4) Remove the screws of Front Side.
5) Disassemble the assembly Front Cover
Part.
6) Disconnect the Step Motor wire as
shown in picture.
7) Remove the wire clamp fixed in Base Part.
8) Remove the Front Cover assembly
completely.
