Disassembly and Reassembly
4-54Samsung Electronics
No Parts Procedure Remark

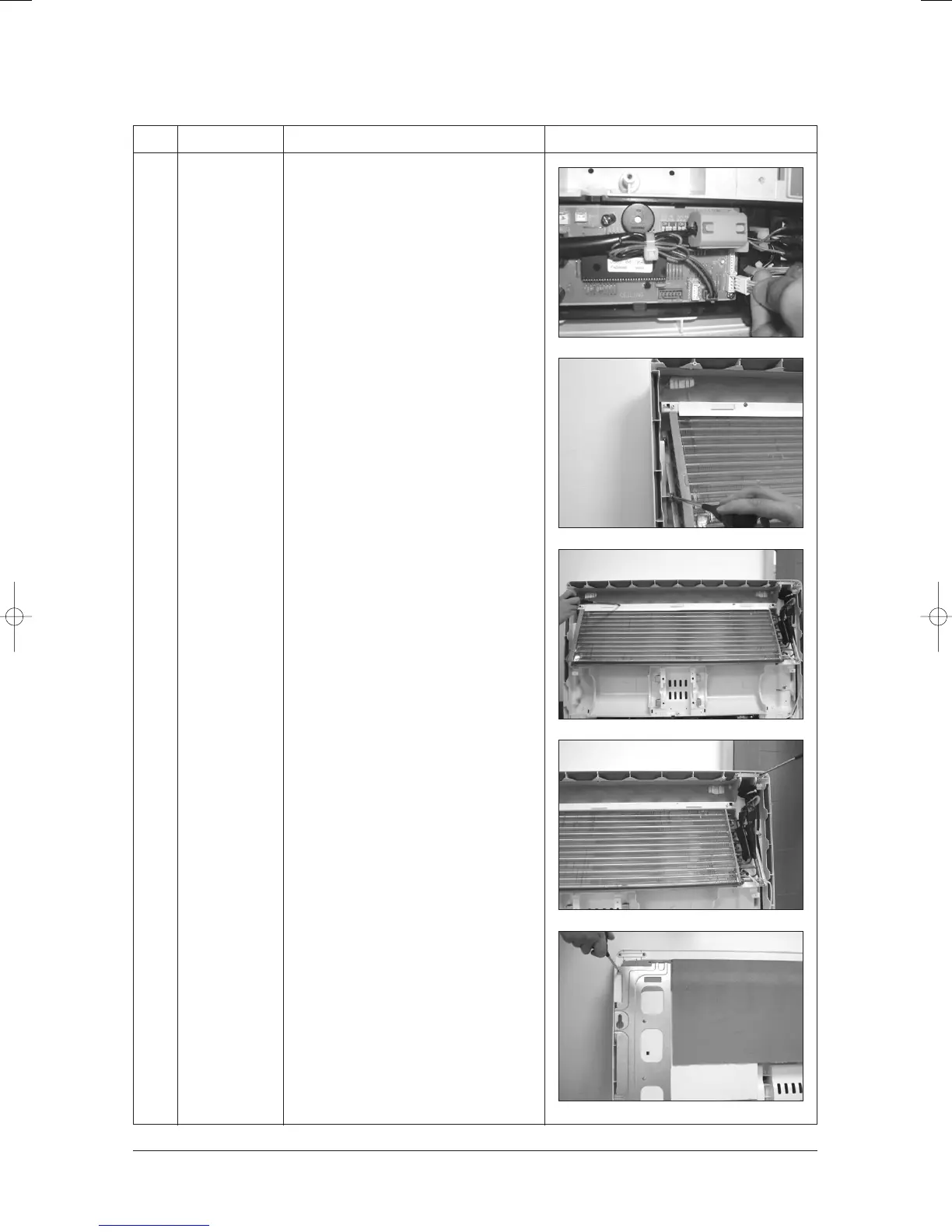

4 Evaporator 1) Disconnect the Thermistor wire as
shown in picture. (white housing)
2) Remove the screws shown in picture.
3) Remove the screws shown in picture and
remove Plastic Part.(white)
4) Remove the screws shown in picture
and remove Steel Bracket.
5) Disassemble the screws Steel Plate in
rear side of unit.
