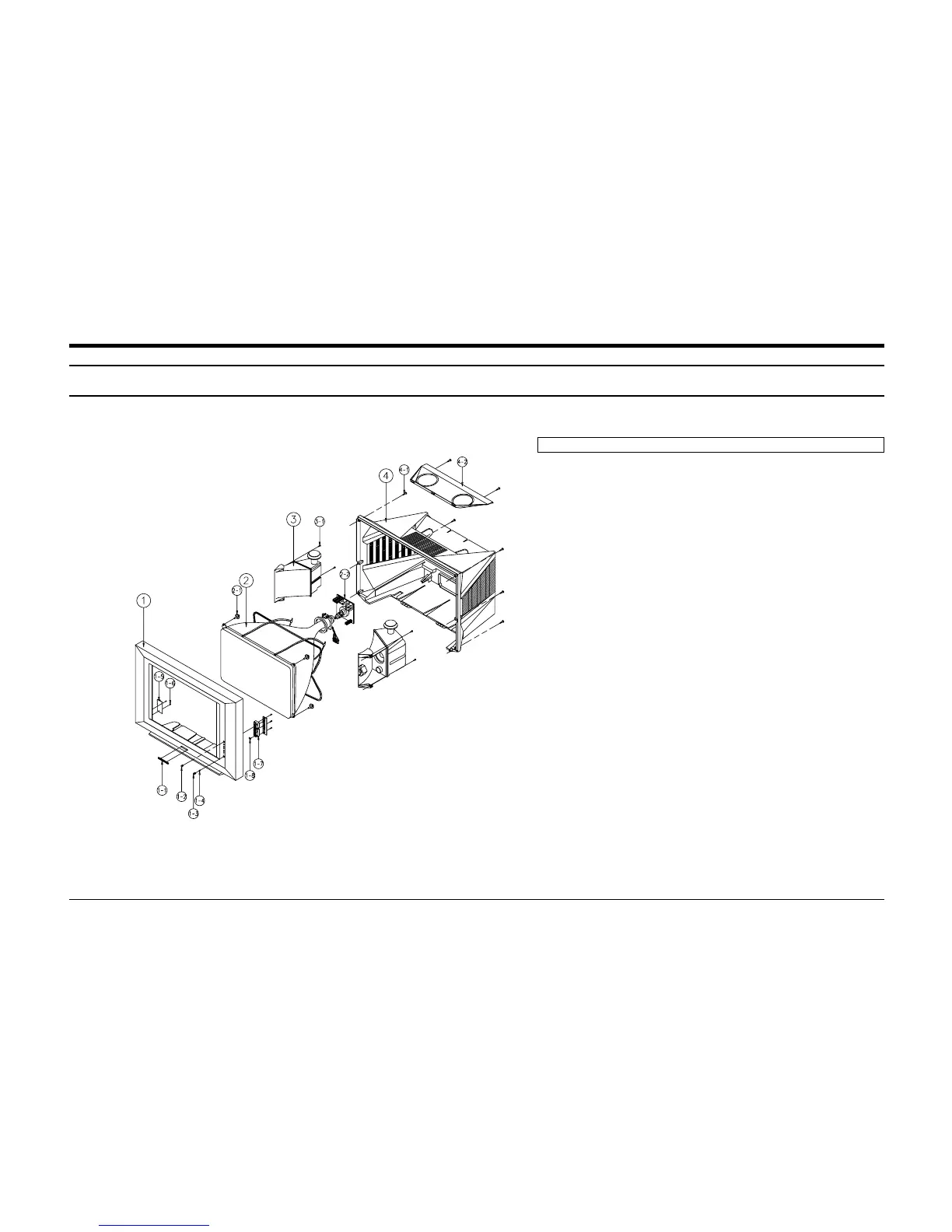

6. Exploded View & Parts List
6-1 CS29A5HT8X/BWT
Exploded View & Parts List
Samsung Electronics 6-1
No Code No Description;Specification Q’ty Remark
1 AA91-00113W ASSY CABINET FRONT;-,29A5 KS3A CIS,S704+ 1
AA64-31106S CABINET FRONT;29A5 KS3A,S704P+G802P PLAN 1
1-1 AA64-70117B BADGE-BRAND;AL,SS,SILVER,L65,R2000,-,- 1
1-2 AA64-40455A WINDOW-REMOCON;-,725A,-,PC,-,VIOLET,- 1
1-3 AA64-10709A KNOB-MASTER;-,295A,VT803M MASTER,ABS,HB, 1
1-4 AA61-60005D SPRING-CS;-,SUS304,0.4,OD5.5,H9,N4,-,-,- 1
1-5 AA95-00872A ASSY-PCB,A/V SIDE;-,29A6,29A5,100HZ,KS3A 1
1-6 6002-000522 SCREW-TAPPING;TH,+,2,M4,L15,ZPC(BLK),SWR 2
1-7 AA64-10710A KNOB-CONTROL;-,725A,-,ABS,HB,GRAY 1
1-8 AA64-40456B INDICATOR-LED;-,295A,-,ACRYL,-,CLR,- 1
1-9 6002-000514 SCREW-TAPPING;RH,+,2,M4,L15,ZPC(BLK),SWR 3
2 AA03-00076A CRT-COLOR;-,A68QCP891X004(C),+380MG,29IN 1
2-1 AA60-10050V SCREW-ASSY;WC,HH,+,M6,L30,SWRCH18A,ZPC(S 4
2-2 3704-001032 SOCKET-CRT;8P,29PI,35.5PI,AU30U 1
3 AA91-00333B ASSY HOLDER SPK;-,PP,8ohm/15W,BLK,AA91-0 1
3-1 AA60-10050A SCREW-ASSY;WP,RH,+,M4,L25,SWRCH18A,-,ZPC 4
4 AA64-31107C CABINET-BACK;-,29A5,-,HIPS,V2,BLK,-,- 1
4-1 AA60-10050T SCREW-TAPPING;RH,+,2S,M4,L20,ZPC(BLK),SW 7
4-2 AA63-30213C COVER-TOP,SPK;-,725A,-,HIPS,V2,BLK,-,- 1
