Schematic Diagrams
10-6 Samsung Electronics

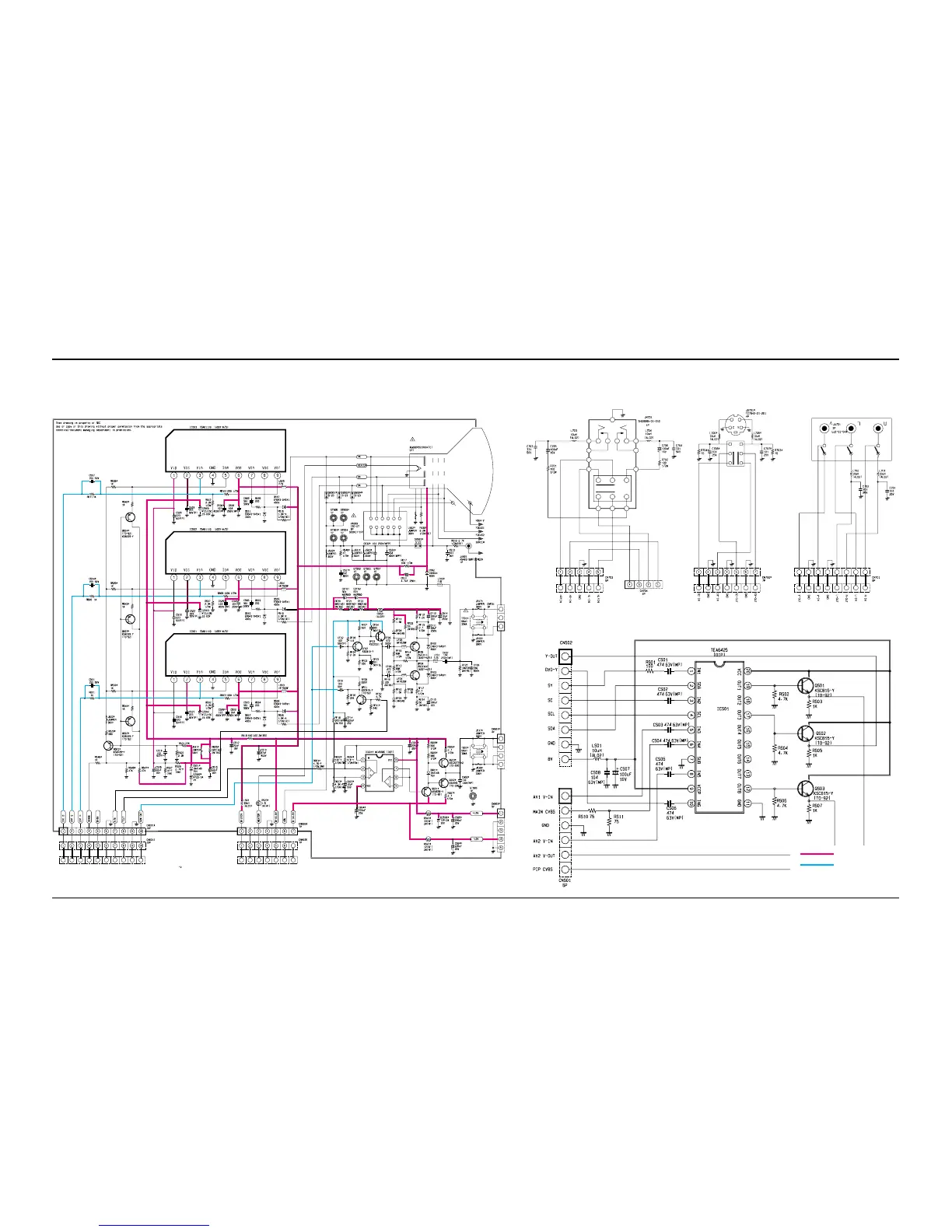

10-6 CRT, SIDE AV, VIDEO SWITCH
VIDEO SWITCH
CRT
: Power Line
: Signal Line
SIDE AV
