3-22
3. Disassembly and Reassembly

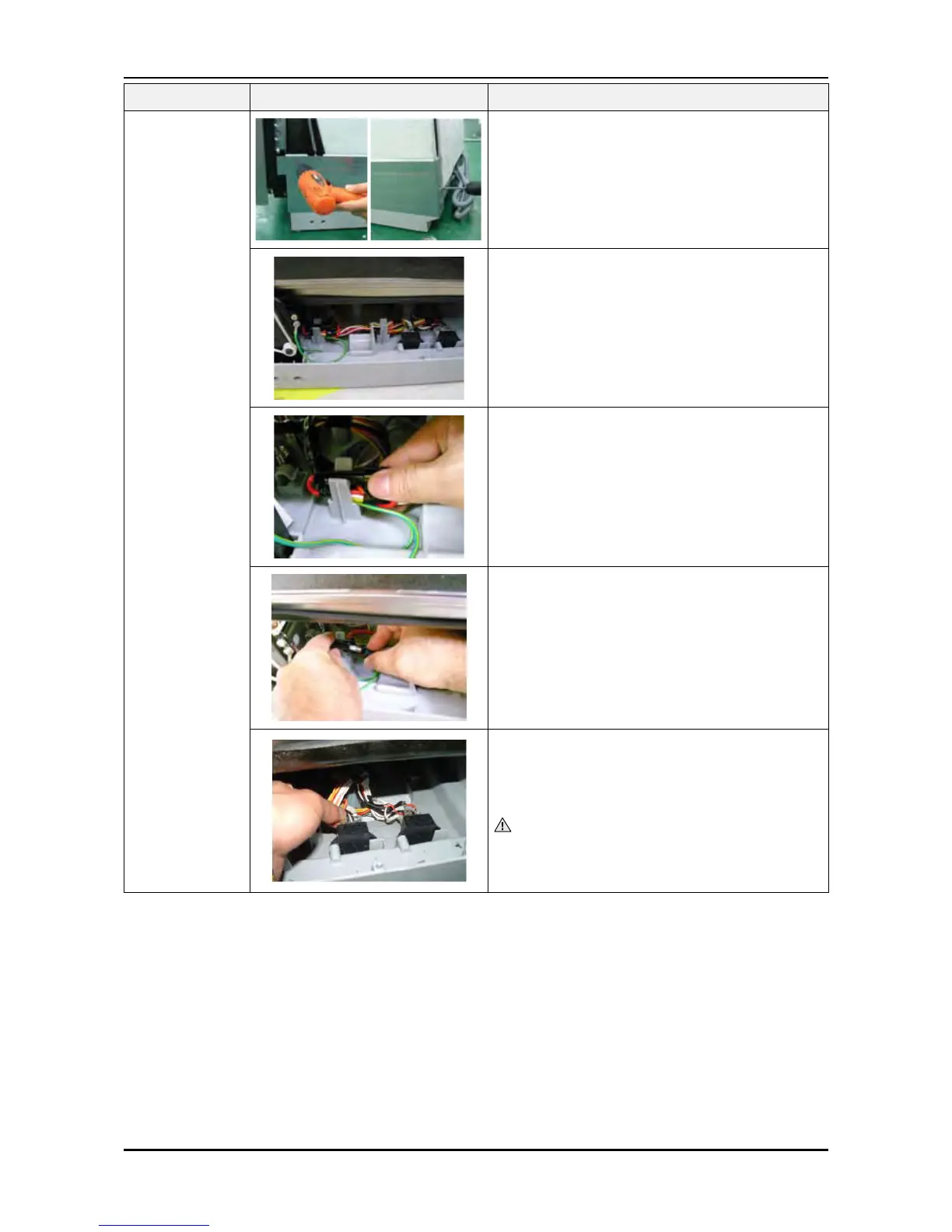

Part Photo Description
Relay & Fuse
1. Unscrew the screws (2 Screws) connecting the
Frame R.
2. When you separate the Frame R, you can check the
Fuse & Relay.
3. Pull out Fuse case that be xed on hook of Base.
4. Open the Fuse case. & Check the fuse. & It can
replacement.
5. Separate the terminal of Relay.
Unscrew the screws of relay using short-body
screwdriver.
Caution
If reassemble the terminal of Relay after check or
replacement, you must be careful. Don’t confuse.
Reassembly is in the reverse order of the removal.
