6-6
6. PCB Diagram

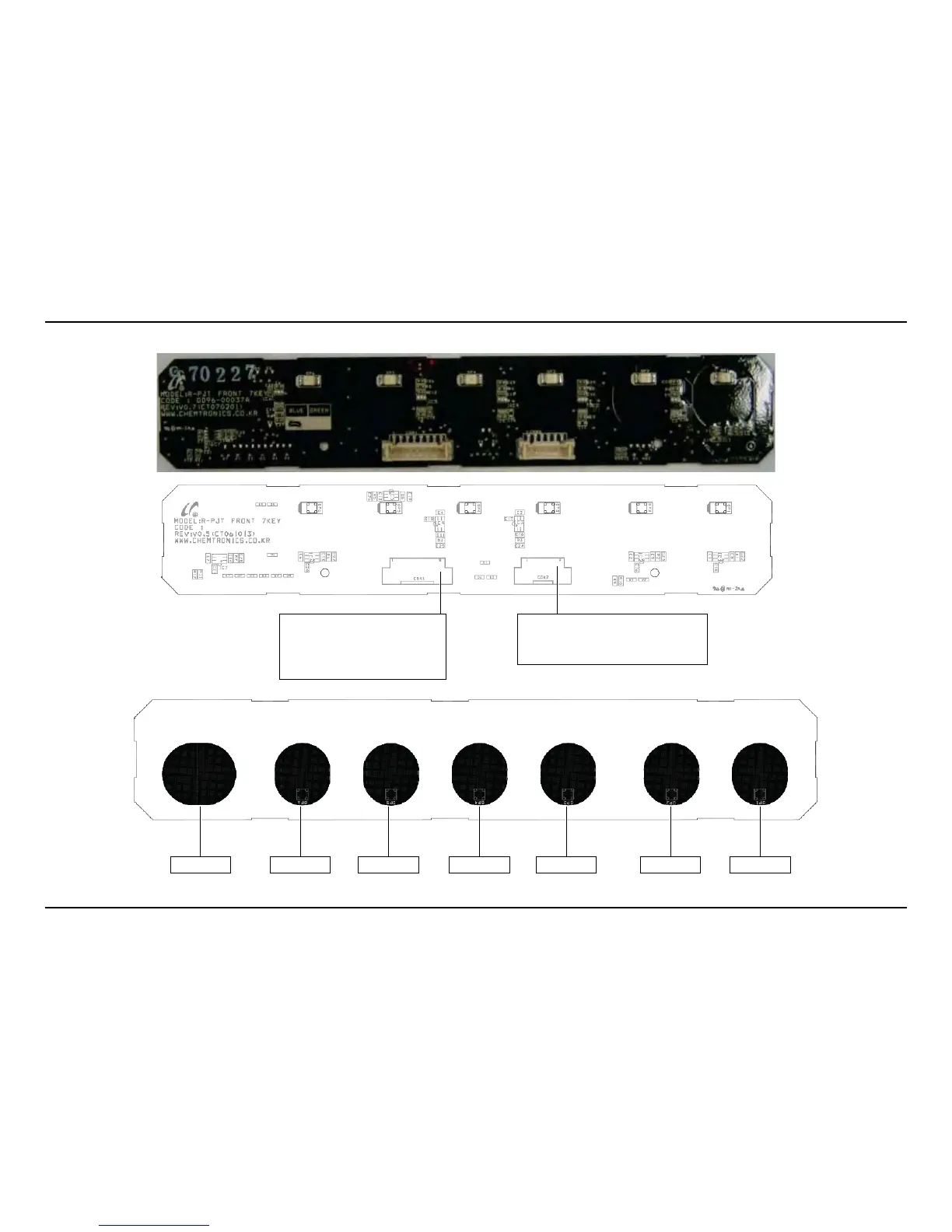

6-6. Detailed Specications and Descriptions for Connectors (TOUCH 7KEY - DMR57)
PIN DESCRIPTIONS ሪ
1. KEY1 5. KEY_Signal_1
2. KEY2 6. KEY_Signal_2
3. KEY3 7. LED_Signal_1
4. KEY4 8. LED_Signal_2
Power Rinse Delicate Heavy Normal Sanitize Delay Start
PIN DESCRIPTIONS ሪ
1. DC 5V 4. SEG2
2. DC GND 5. SEG3
3. SEG1 6. NC
