6. PCB Diagram

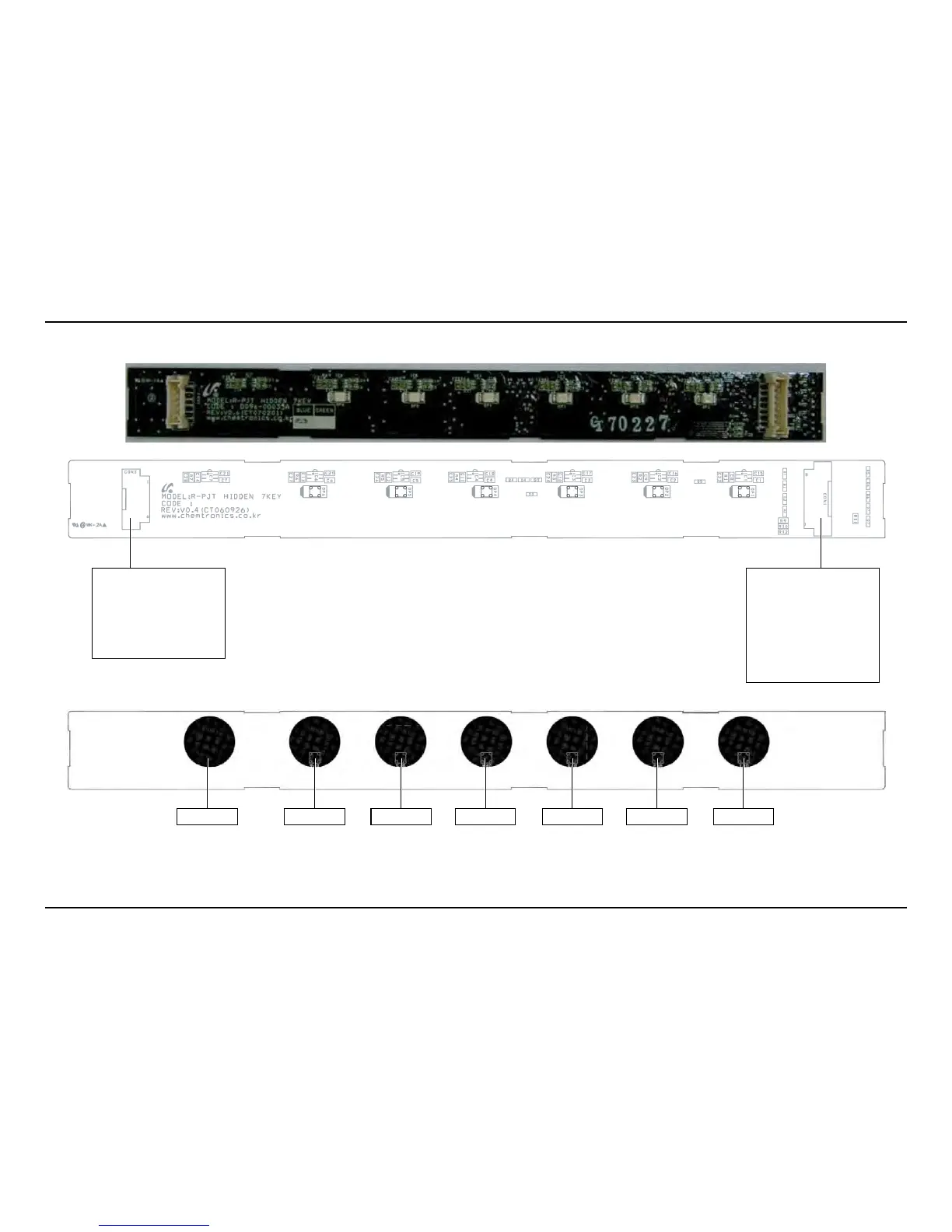

6-5. Detailed Specications and Descriptions for Connectors (TOUCH 7KEY - DMR77, DMR78)
PIN DESCRIPTIONS ሪ
1. DC 5V
2. DC GND
3. SEG1
4. SEG2
5. SEG3
6. NC
PIN DESCRIPTIONS ሪ
1. KEY1
2. KEY2
3. KEY3
4. KEY4
5. KEY_Signal_1
6. KEY_Signal_2
7. LED_Signal_1
8. LED_Signal_2
Power Smart Auto Quick Rinse Delicate Heavy Normal
