7-2
7. Wiring Diagram

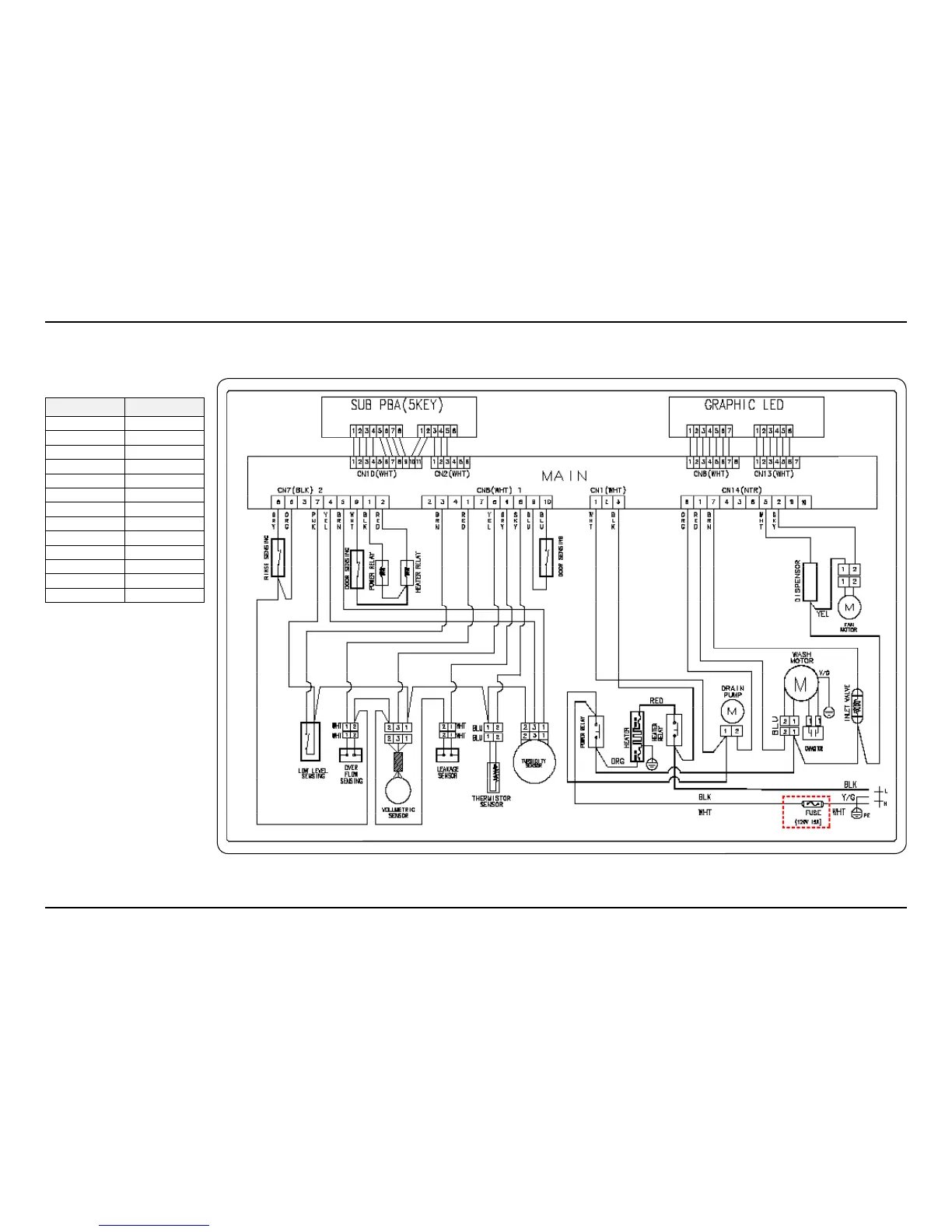

7-2. Old Wiring Diagram (DMR57)
■ Reference Information
Abbreviated word Meaning
GRY GRAY
ORG ORANGE
VIO VIOLET
PNK PINK
YEL YELLOW
BRN BROWN
WHT WHITE
BLK BLACK
RED RED
SKY SKY BLUE
BLU BLUE
Y/G YELLOW / GREEN
NTR COLORLESS
