Copyright© 1995-2012 SAMSUNG. All rights reserved. 3-153-15
Disassembly and reassembly

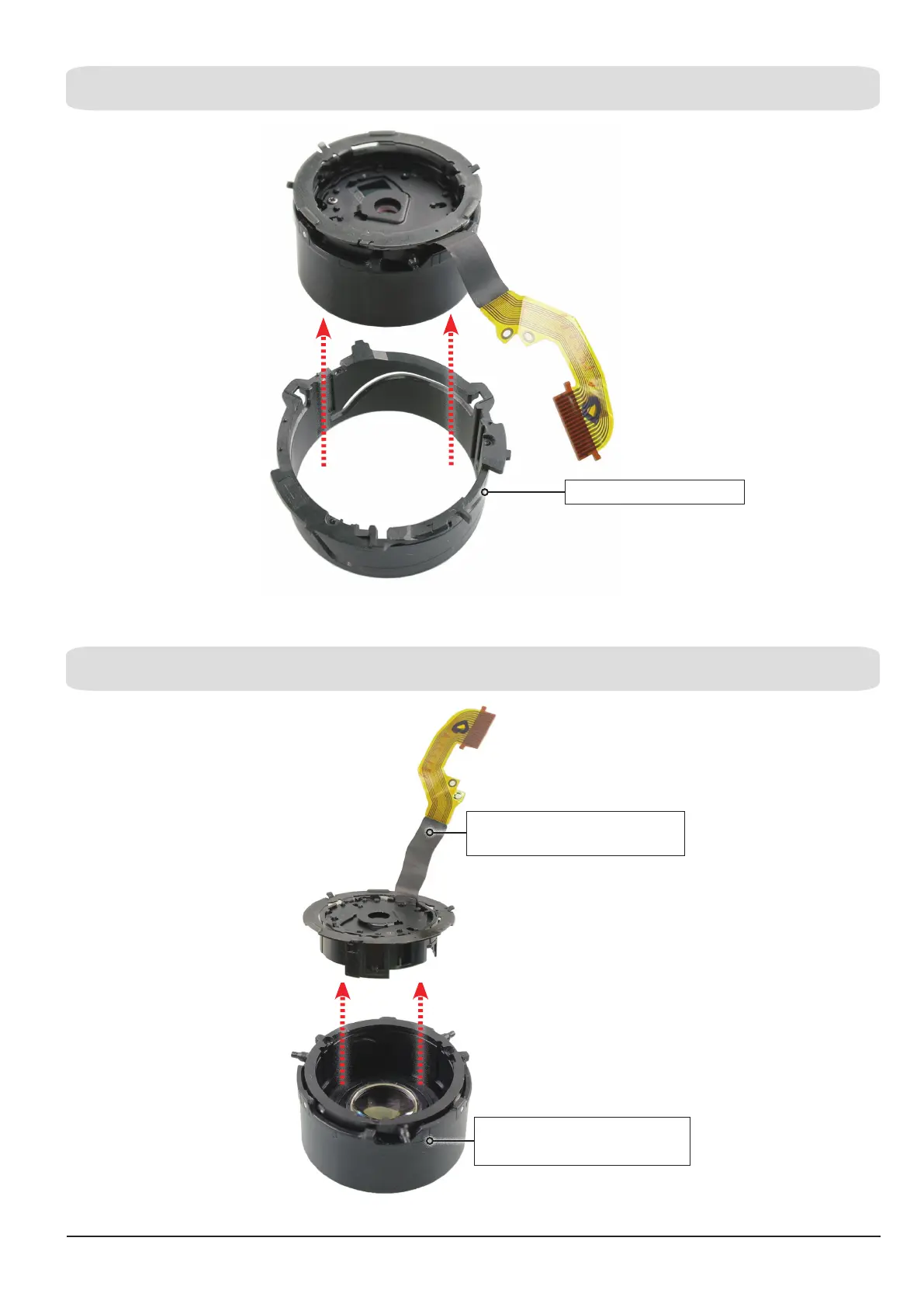

(e) Remove the BARREL-OUTER GUIDE.
Fig 3-28
BARREL-OUTER GUIDE
(f) Remove the BARREL-INNER CAM/ ASSY SUB BARREL-ZOOMRING and ASSY SUB BARREL-2ND_OIS/ PLATE-INNER GUIDE.
BARREL-INNER CAM/
ASSY SUB BARREL-ZOOMRING
ASSY SUB BARREL-2ND_OIS/ PLATE-
INNER GUIDE
Fig 3-29
