Disassembly and reassembly
3-14
Copyright© 1995-2012 SAMSUNG. All rights reserved.

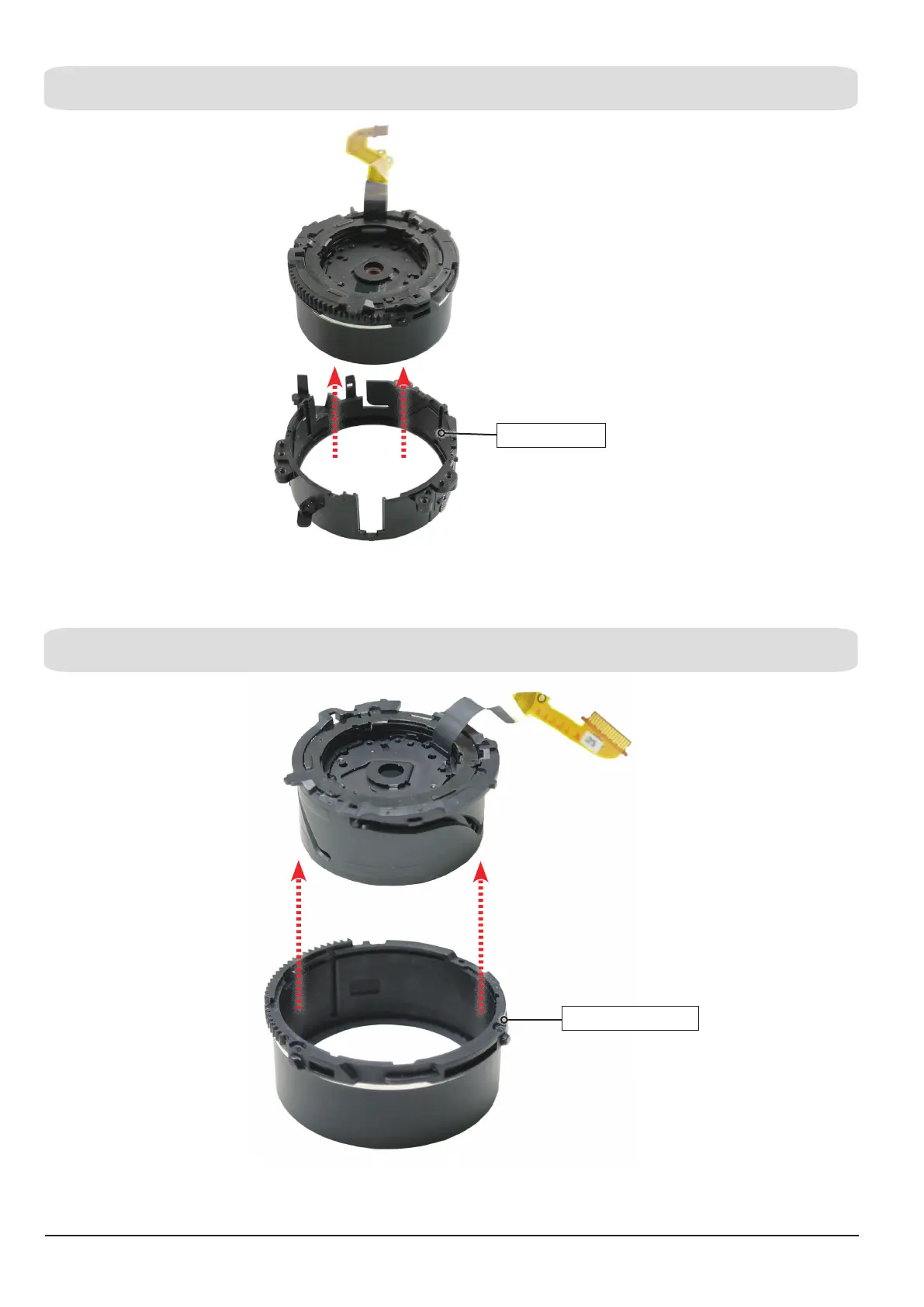

(c) Remove the BARREL BASE.
Fig 3-26
(d) Remove the BARREL-OUTER CAM.
Fig 3-27
BARREL-OUTER CAM
BARREL BASE
