Disassembly and reassembly

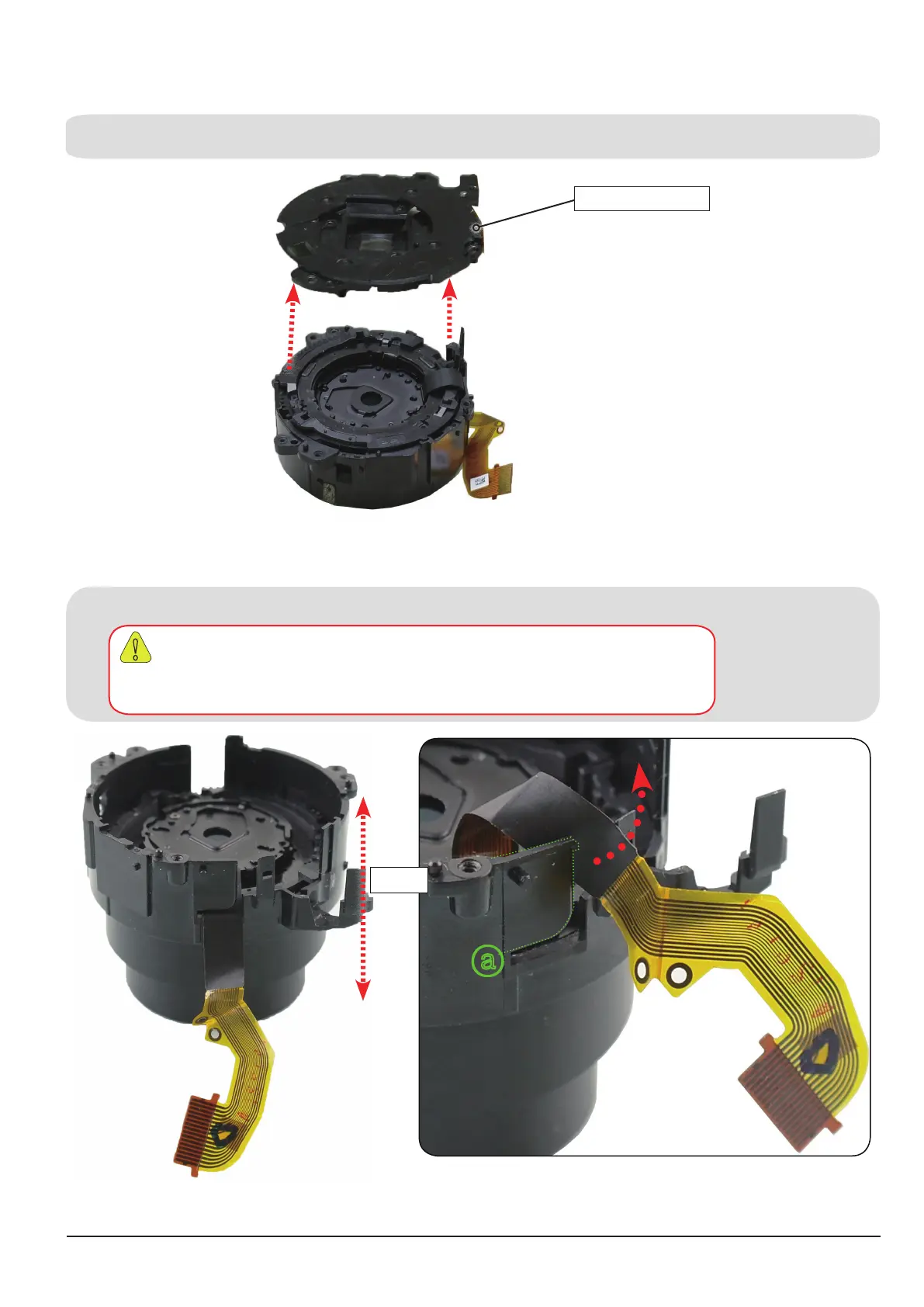

Fig 3-24
(a) Remove the ASSY LENS BASE-D5.
3. Disassembly of BARREL.
ASSY LENS BASE-D5
(b) Remove the FPCB from the slot “a" of ASSY SHTTER-OIS as illustrated.
Fig 3-25
ⓐ
WIDE
Make the BARREL by state of WIDE as illustrated and then remove the FPCB.
Be damage the FPCB If state to CLOSE of BARREL when remove the FPCB.
!
Caution
To Next Page
