Disassembly and reassembly
3-12 Copyright© 1995-2012 SAMSUNG. All rights reserved.

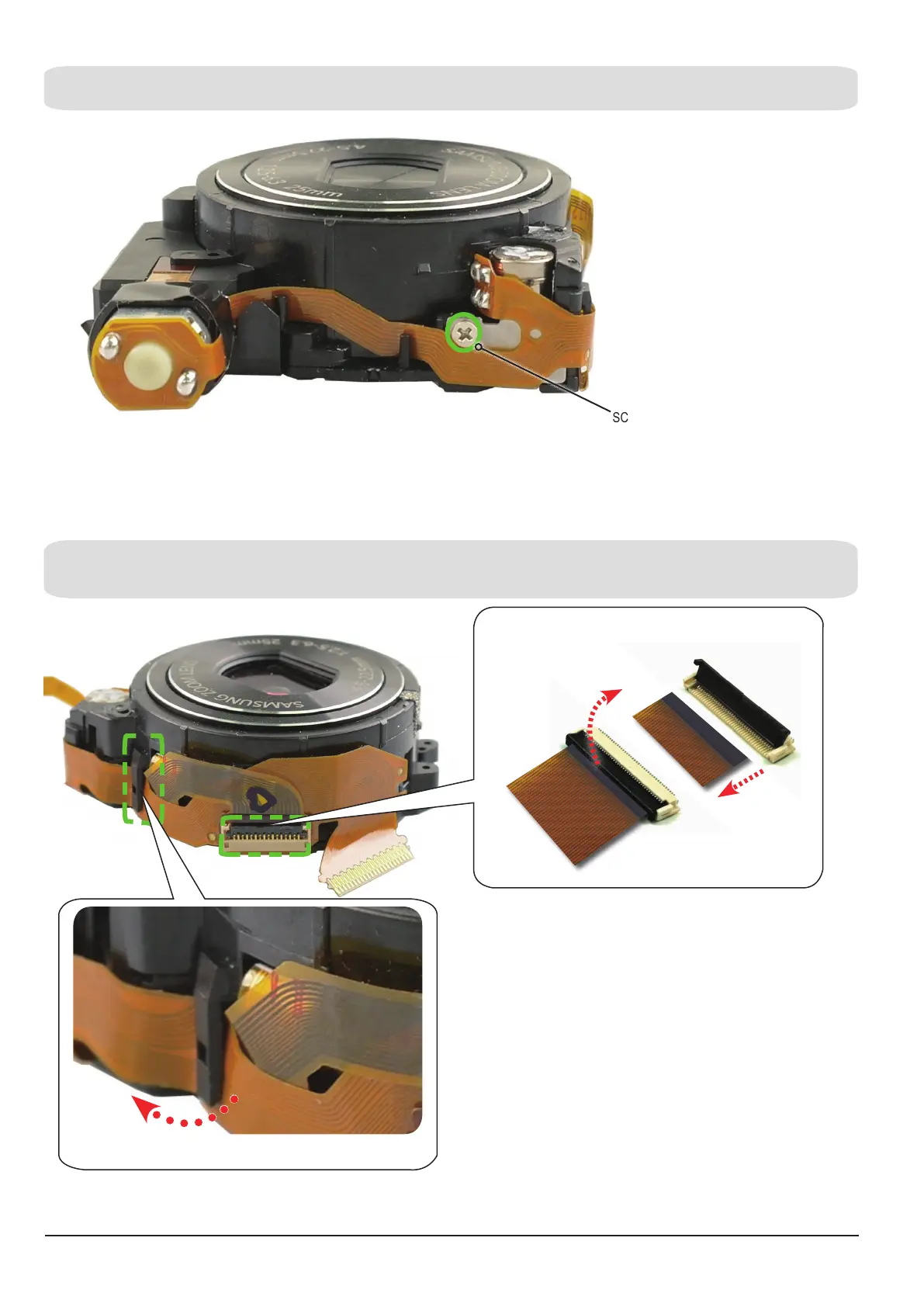

Fig 3-23
Fig 3-22
SCREW-TAPTYPE
(b) Remove the one SCREW.
Fig. B
(c) Remove the FPCB from the CONNECTOR as indicated "Fig. A" below.
(d) Remove the xed part by slightly move the FPCB as shown in the "Fig.B".
CONNECTOR
FPCB
FPCB
1. Open.
2.
Remove
.
Remove the FPCB from the connector.
Fig. A
