Disassembly and reassembly

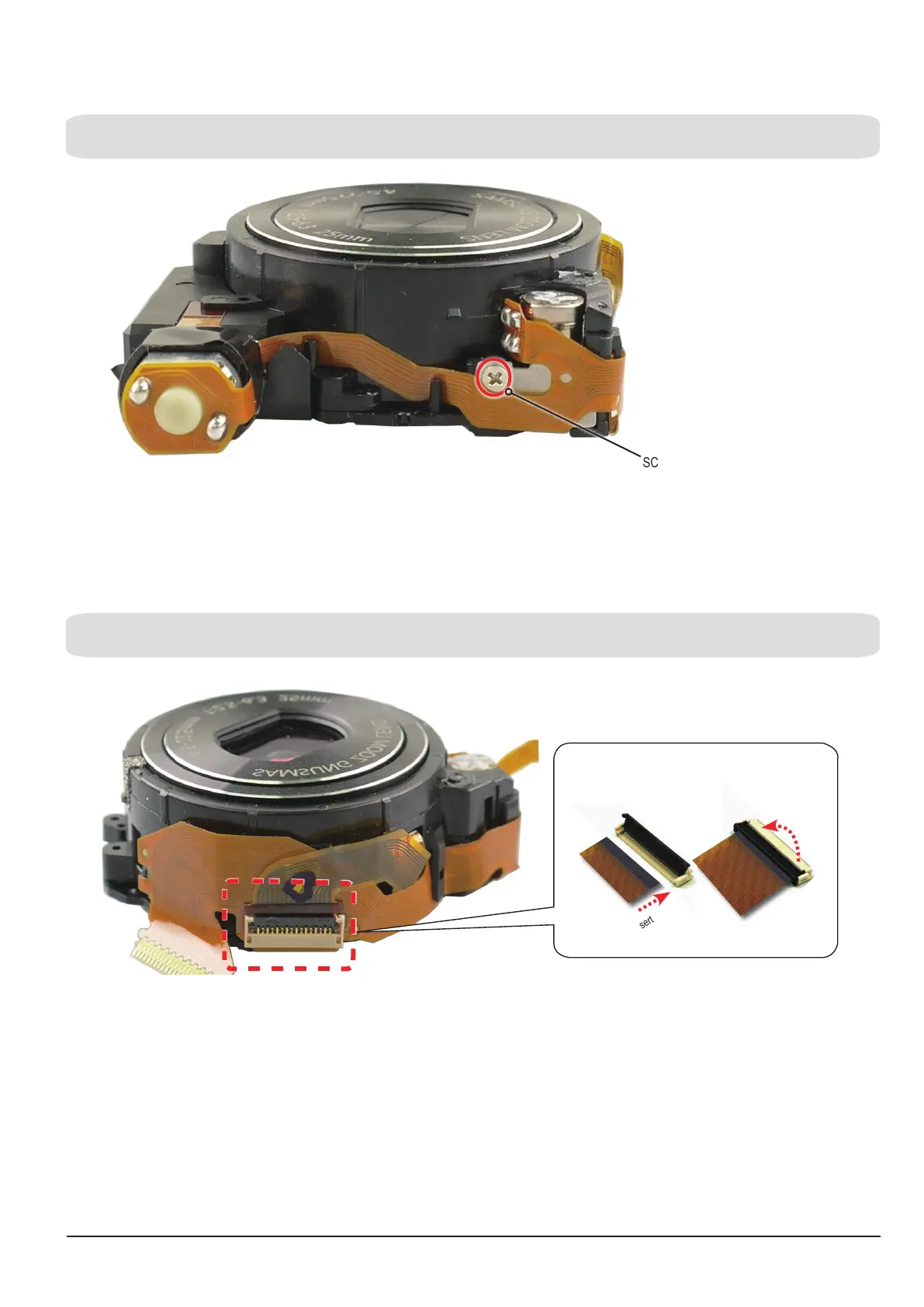

2. Reassembly of BARREL FPCB.
Assemble the FPCB of CONNECTOR.
Fig. A
SCREW-TAPTYPE
(a) Tighten the oen SCREW.
(b) Assemble the FPCB as "Fig. A".
CONNECTOR
2. Close
1. Insert
FPCB
FPCB
CONNECTOR
Fig 3-43
Fig 3-44
To Next Page
