Disassembly and reassembly
3-26
Copyright© 1995-2012 SAMSUNG. All rights reserved.

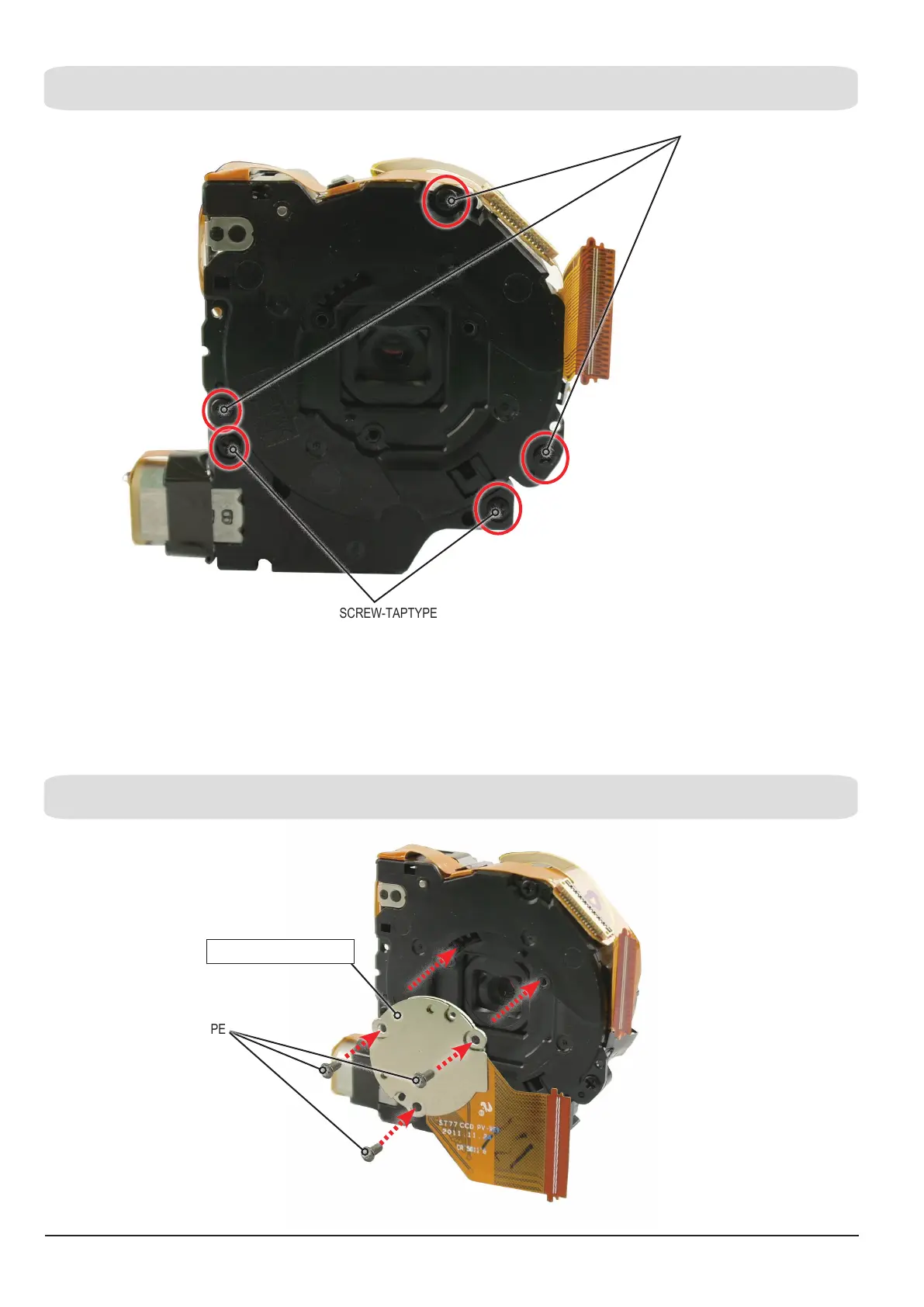

SCREW-TAPTYPE
SCREW-TAPTYPE
(c) Tighten the five SCREWs.
Fig 3-45
(a) Assemble the PCB FPC-CCD ASSY and then tighten the three SCREWs.
3. Reassembly of PCB FPC-CCD ASSY.
PCB FPC-CCD ASSY
SCREW-TAPTYPE
Fig 3-46
