English _25
CONNECTING & SETTING UP

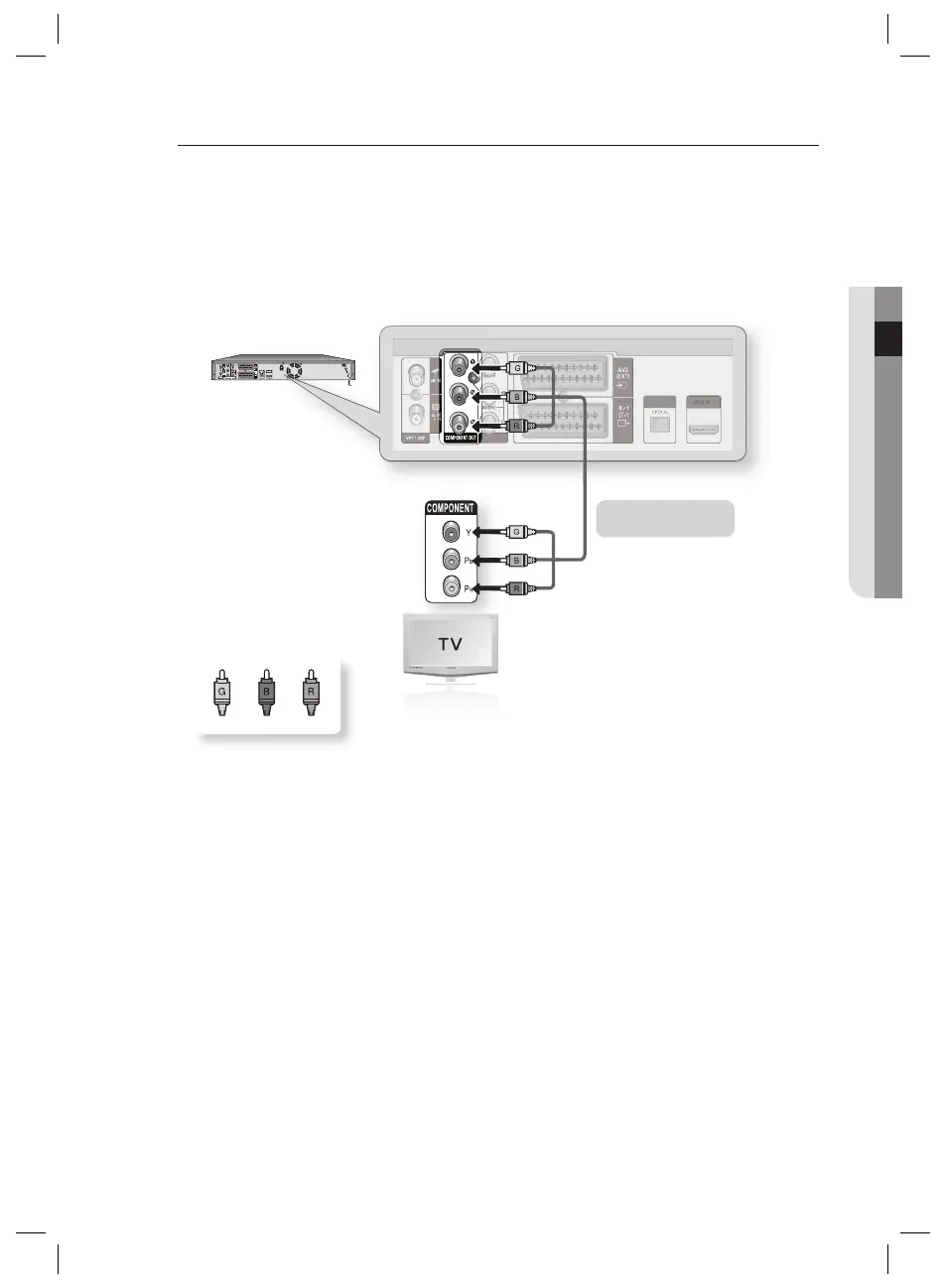

Case 2 : Component Video output jacks
You will enjoy high quality and accurate colour reproduction images.
Connect Component video cables(not supplied) between the COMPONENT OUT(Y, P
B, PR) jacks on HDD
& DVD Recorder and COMPONENT IN(Y, PB, PR) jacks on your TV.
Connect audio cables (white and red) between the AUDIO OUT jacks on the HDD & DVD Recorder and
AUDIO IN jacks on TV (or AV amplifi er).
(See pages 26~28).
After connecting, refer to the page 44.
Make sure that the colour coded connections match. The Y, PB, PR component output jacks of your HDD & DVD
Recorder must be connected to the exact corresponding component input jacks on your TV.
Progressive setting is only available when the Video Out is set to Component.
(See page 44)
1.
2.
3.
M
BlueGreen
Red
Component cable
(not included)
