<Liquid side>

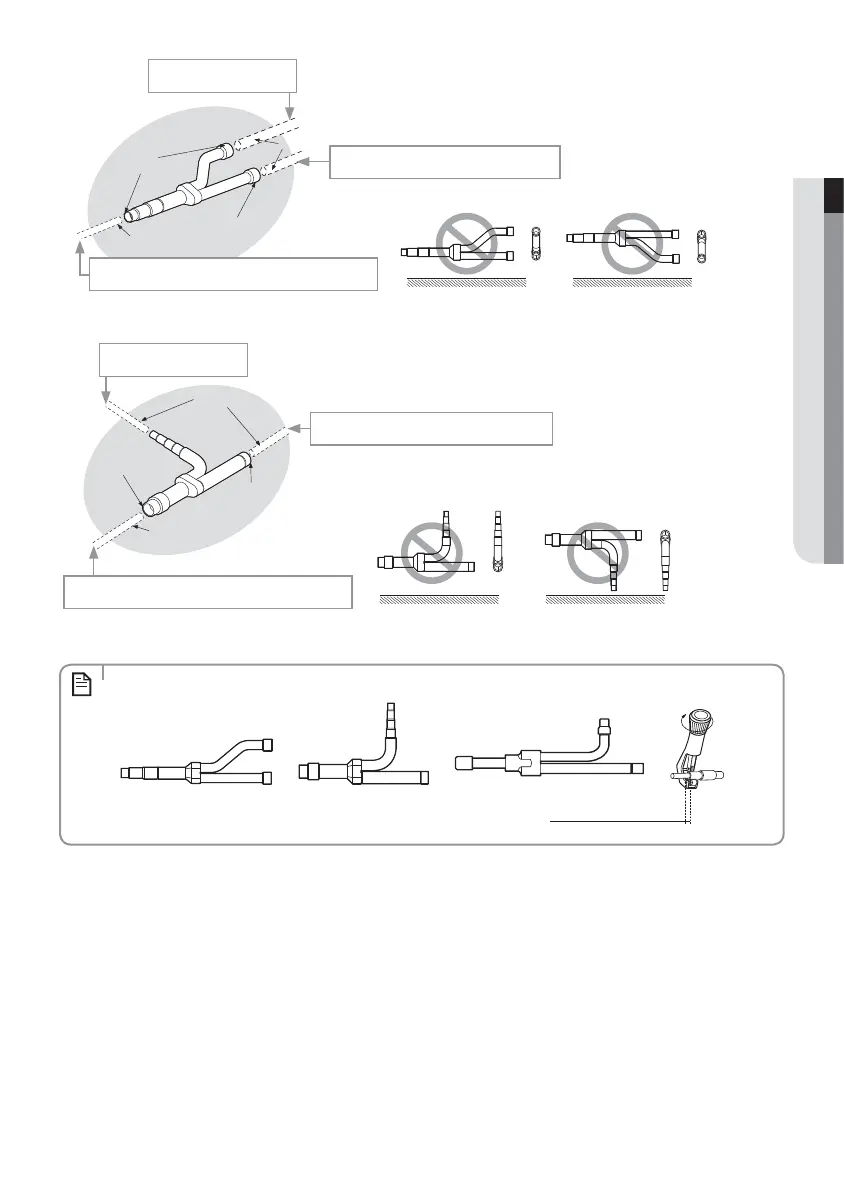

❋ Use the attached reducer according to the selected pipe size.
Pipe
Reducer
Reducer
Pipe
To other outdoor unit
To other outdoor joint or Y-joint of the main pipe
To other outdoor joint or outdoor unit
<Gas side>
❋ Use the attached reducer according to the selected pipe size.
Pipe
Reducer
Reducer
Pipe
To other outdoor unit
To other outdoor joint or Y-joint of the main pipe
To other outdoor joint or outdoor unit
t Connect the Outdoor joint to the pipe by cutting the outlet of the Outdoor joint or provided reducer properly.
10mm~15mm
(0.39~0.59 inch) or more
