58

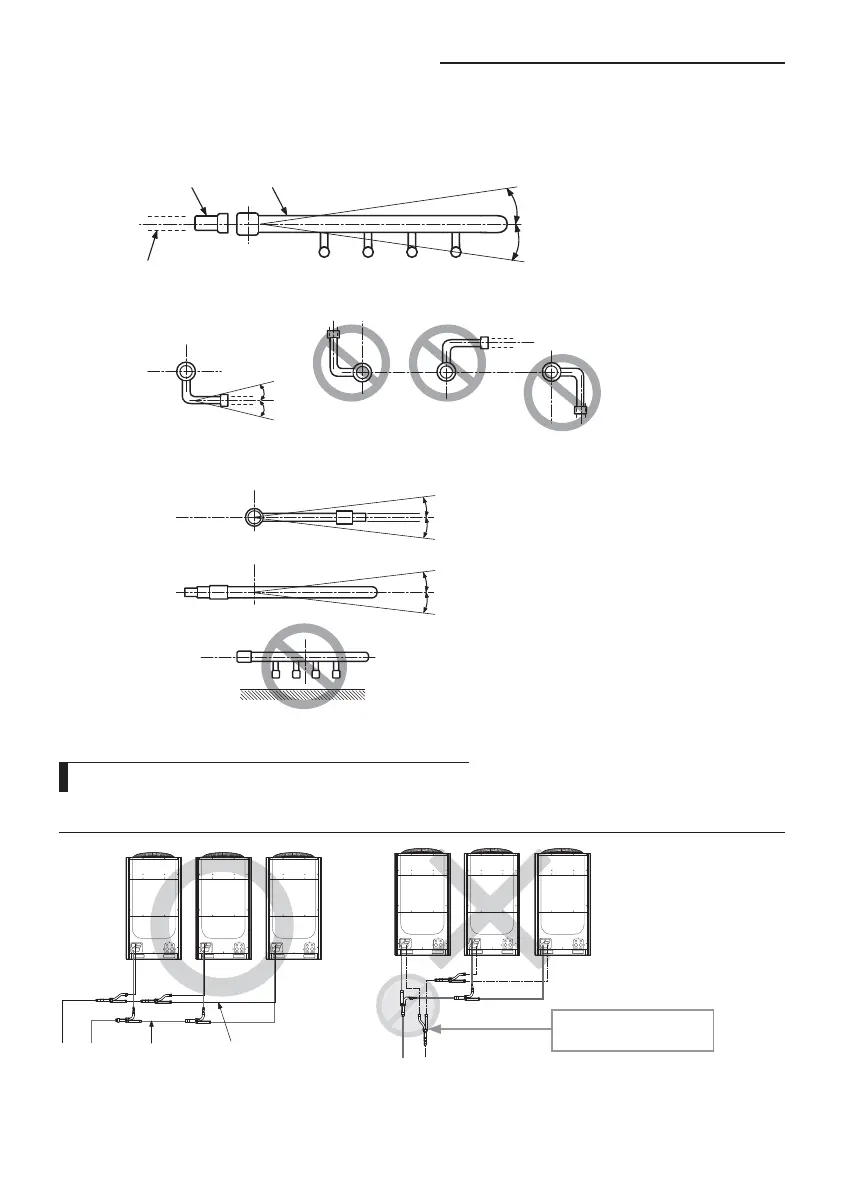

3. Install the distribution header horizontally.
f Install the distribution header horizontally so that its ports does not face down.
Below ±10°
Horizon line
Socket Distribution header
Pipe (Separately purchased item)
Below ±15°
Horizon line
Horizon line
< Liquid side >
Below ±15°
Horizon line
Below ±10°
Horizon line
< Gas side >
Installing the branch joint between outdoor units
Installation of outdoor joints
Do not install the outdoor
joint in this direction.
Liquid pipeGas pipe
Refrigerant pipe installation
