Samsung DVM S AM MXVAFC Series User Manual

57
ENGLISH

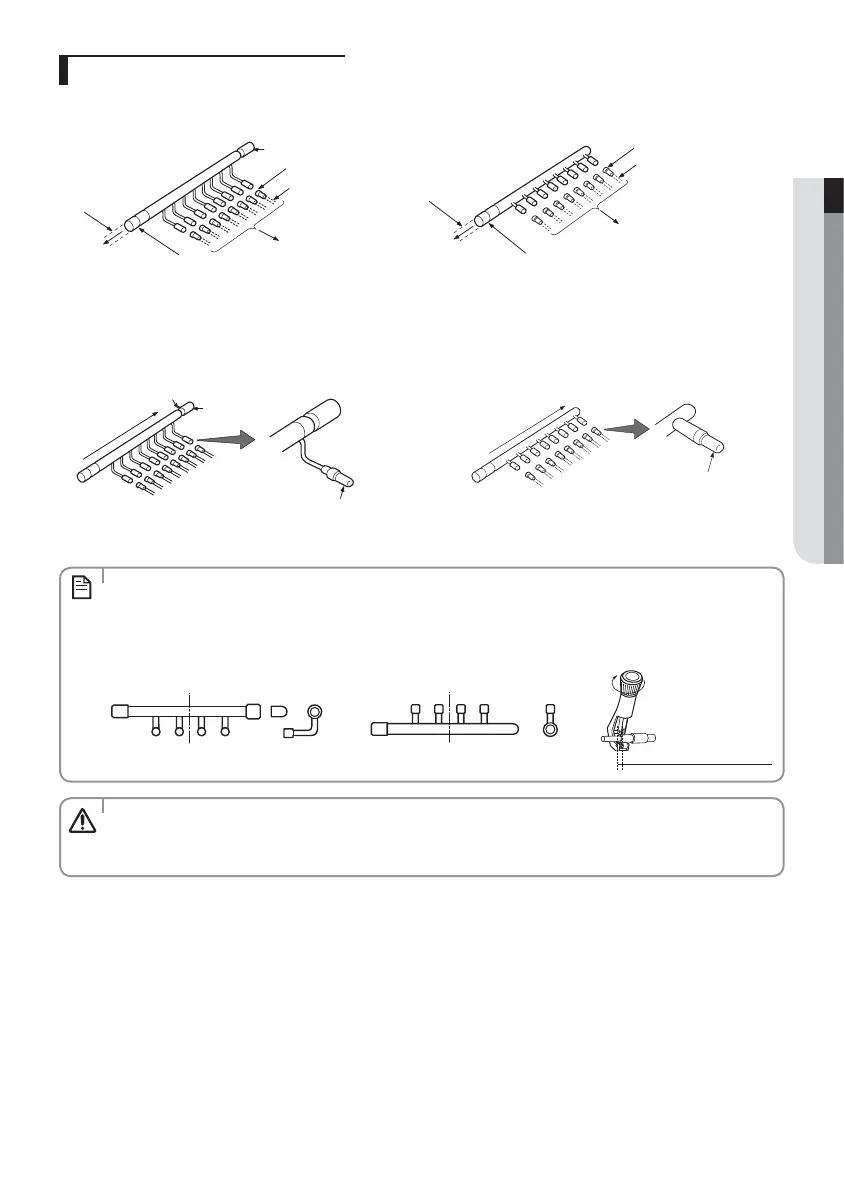

Installing the distribution header
1. Select the reducer that fits the diameter of the pipe.
<Gas side>
Socket
Pipe *
To indoor unit
Pipe*
Socket
To outdoor unit
<Liquid side>
Socket
Pipe*
To indoor unit
Pipe*
Socket
To outdoor unit
Provided item
❋ Pipe : Separately purchased item
2. If the number of connected indoor unit is fewer than ports on the distribution header, block the unused ports with caps.
<Liquid side>
Case of blocking the unused
distribution header ports
Connect in
order
Welding part
Provided item
<Gas side>
Case of blocking the unused
distribution header ports
Connect in
order
t For A~J type distribution header :
Connect the distribution header to the connection pipe with the provided reducer.
t For K~Z type distribution headers :
Cut the provided socket, according to the diameter of the connection pipe, before connecting it.
10mm~15mm (0.39~0.59 inch)
NOTE
t Connect the indoor units in order, while respecting the direction of the arrow shown in the illustration.
t When indoor units are connected to same distribution head, indoor unit must be connected in order of their
capacity, from largest to smallest.
CAUTION
