Samsung HT-E330K - Rear Panel

English 11
01 Getting Started
1
FA NET (Only for Service)
Used for the service repair.
2
SPEAKERS OUTPUT CONNECTORS
Connect the front, center,surround speakers and subwoofer.
3
AUX IN JACKS
Connect to the 2CH Analog output of an external device (such as a VCR).
4
VIDEO OUT JACK
Connect your TV's Video Input jack (VIDEO IN) to the VIDEO OUT jack.
5
COMPONENT VIDEO OUTPUT JACKS
Connect a TV with Component video inputs to these jacks.
6
FM ANTENNA JACK
Connect the FM antenna.

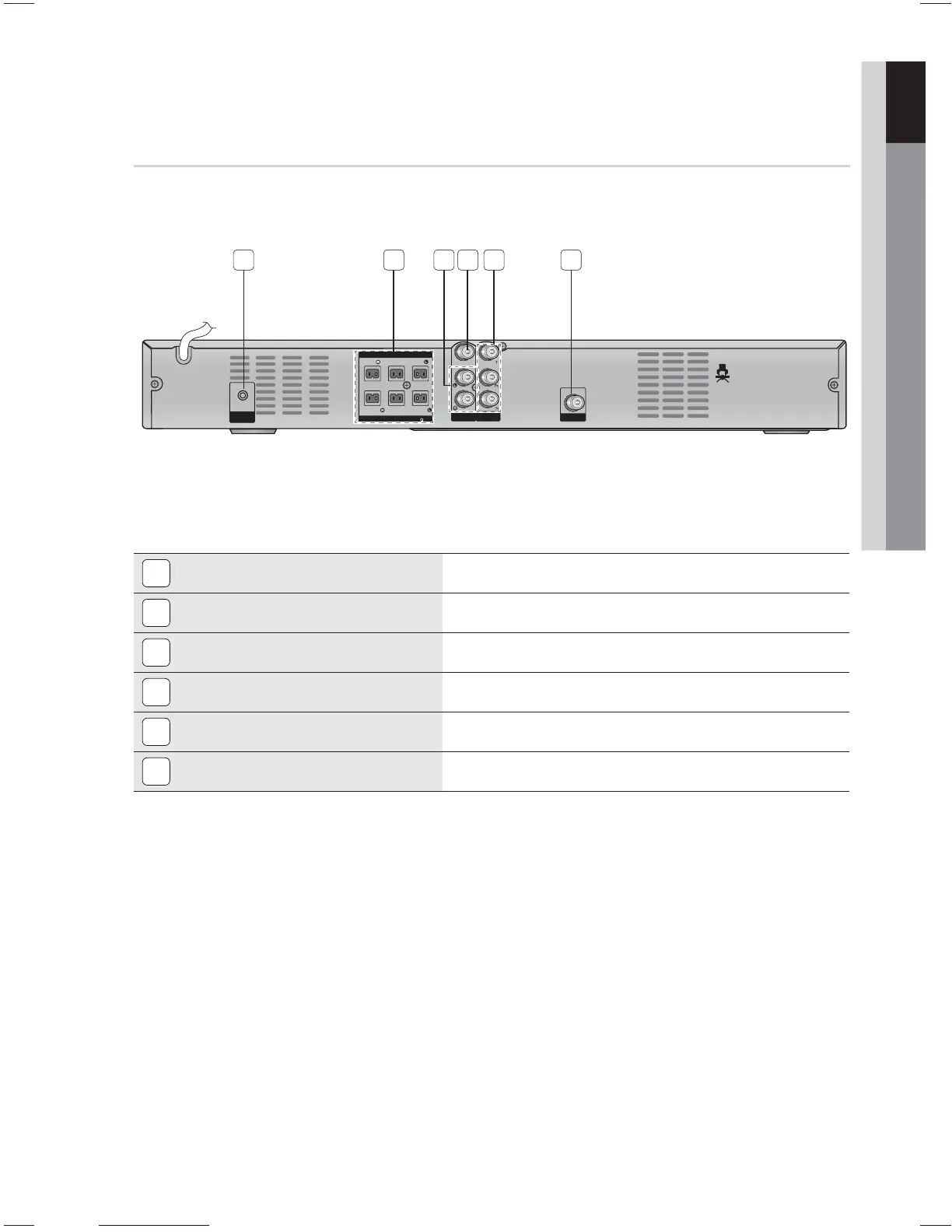

Rear Panel
SURROUND SURROUND
SUBWOOFER
CENTER FRONT
VIDEO OUT
FRONT
SPEAKERS OUT
SPEAKER IMPEDANCE : 3
FM ANT
COMPONENT
OUT
FA NET
(Only For Service)
AUX IN
1 2 3 4 65
