Samsung ML-2251N/XAA User Manual

5-6
Disassembly and Reassembly
Samsung Electronics
Service Manual
1. Before you remove the Middle Cover, you
should remove:
- Front Cover
- Rear Cover
- Top Cover
2. Disconnect the OPE harness and remove four
screws securing the Base Frame, as shown
below.

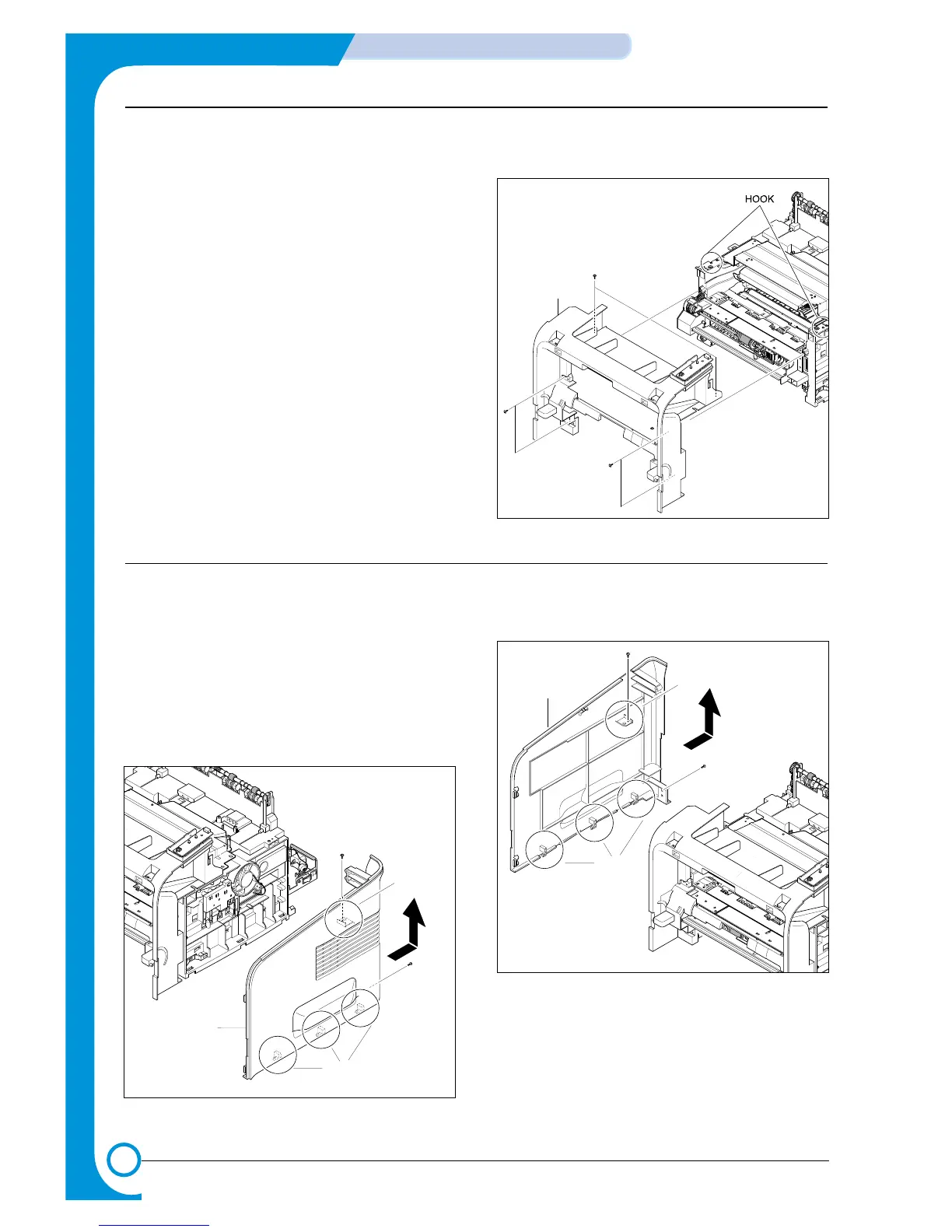

Middle Cover
5.6 Middle Cover
1. Before you remove the Side Cover(LH, RH),
you should remove:
- Front Cover
- Rear Cover
- Top Cover
2. Remove the two screws and release the latches
from the Frame Ass’y in the direction of the
arrow, then remove the side cover(RH).
3. Remove the two screws and release the latches
from the Frame Ass’y in the direction of the
arrow, then remove the side cover(LH).
Side Cover(RH)
Top Latch
Bottom Latches
Side Cover(LH)
Top Latch
Bottom
Latches
5.7 Side Cover(LH, RH)
