5-8
Disassembly and Reassembly
Samsung Electronics
Service Manual
1. Before you remove the Engine Shield Ass’y, you
should remove:
- Front Cover
- Rear Cover
- Side Cover(LH, RH)
- Top Cover

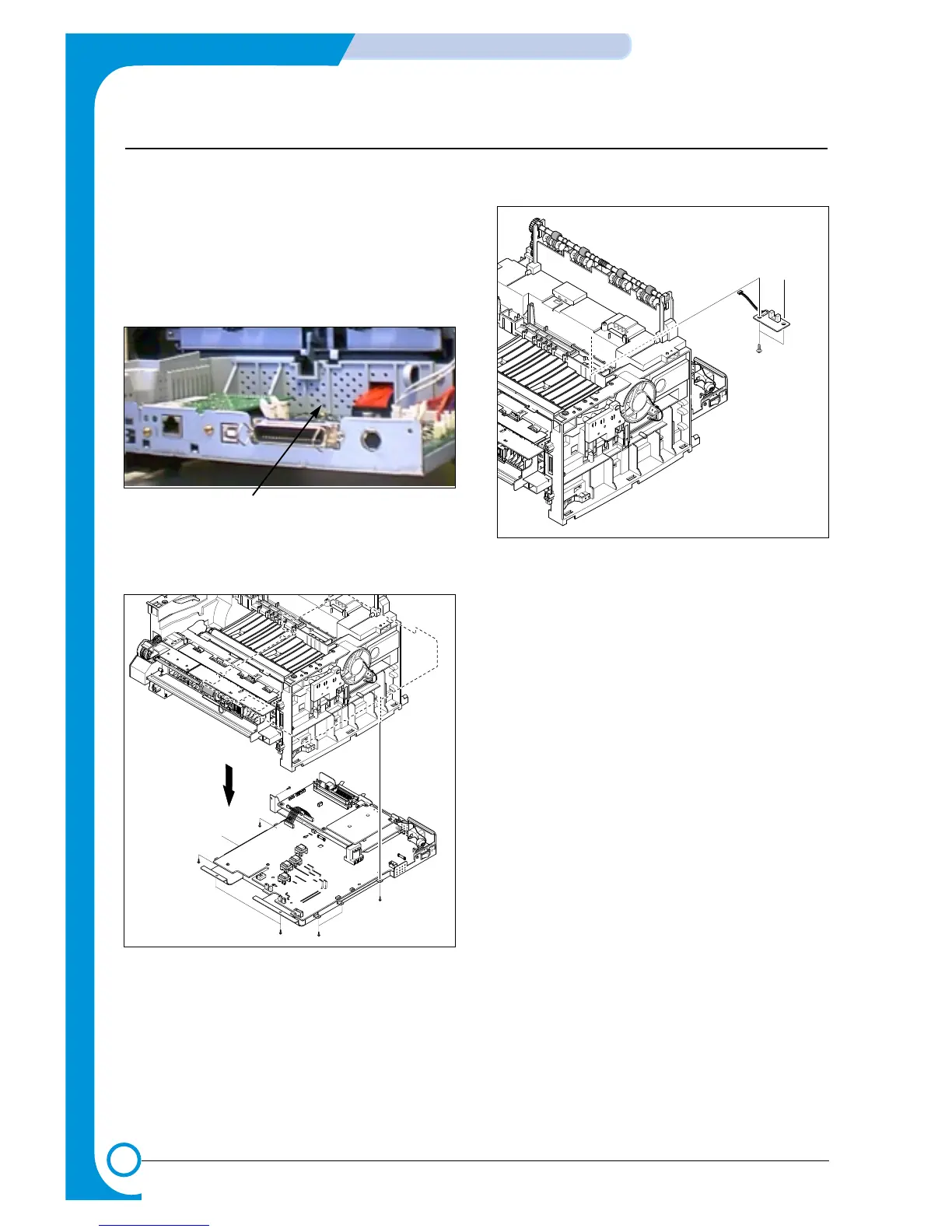

2. Release 1 screw and remove the SMPS shield
Engine Shield Ass'y
3. Remove the twelve screws securing from the
Engine Shield Ass'y and unplug the all connectors.
Then take the Engine Shield Ass'y.
4. Remove the two screws and remove the Exit
Board.
Engine Shield Ass’y
Exit Board
5.9 Engine Shield Ass’y & Exit Board
SMPS Shield
