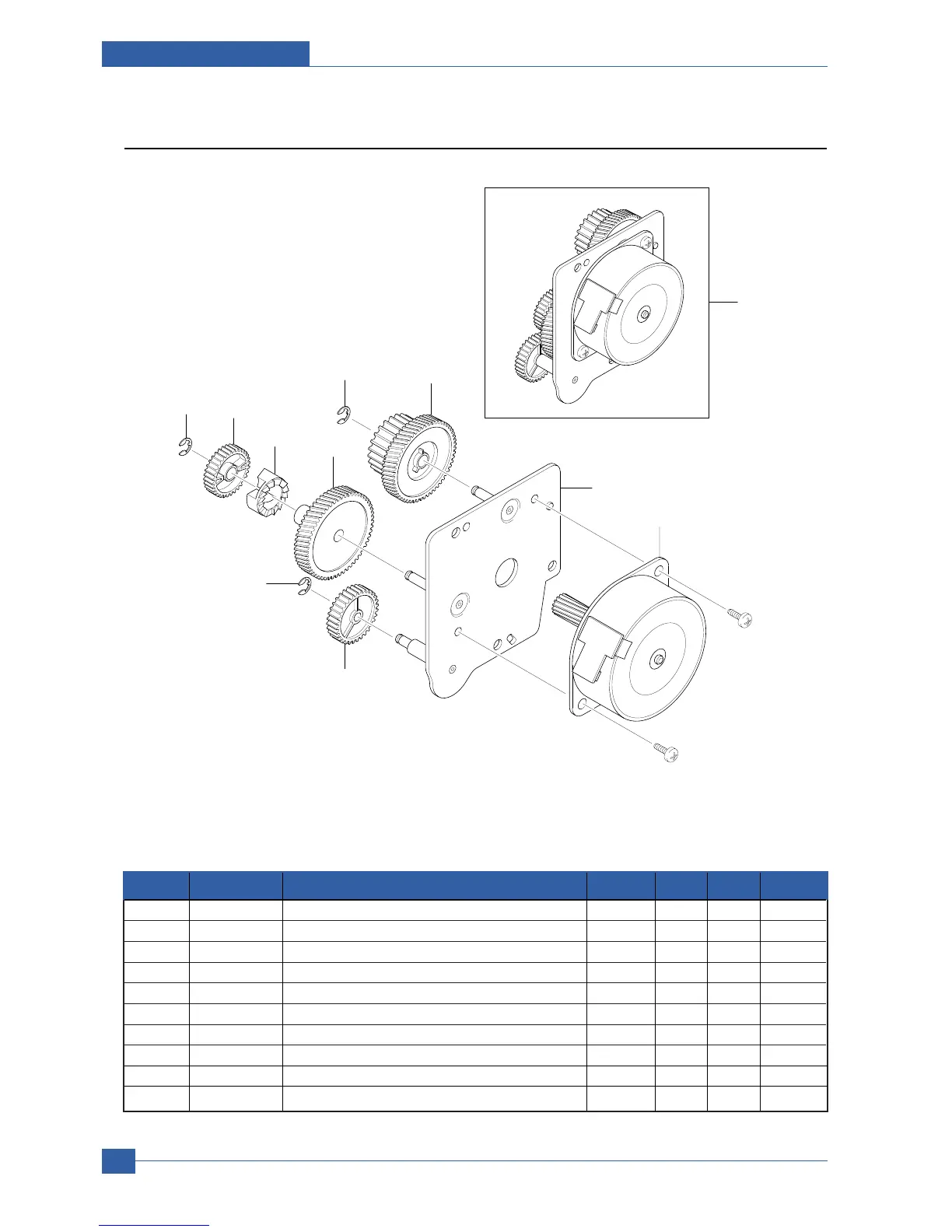

5.9 Fuser Drive Ass'y

Fuser Drive Ass'y Parts List

5.9-0 JC96-04634A ELA HOU-FUSER DRIVE D2100 1 SA

5.9-1 JC61-01598A BRACKET-P-FUSER EXIT B2102 1 SNA

5.9-2 JC31-00084A MOTOR STEP-MAIN C2103 1 SA

5.9-3 JC66-01158A GEAR-EXIT RDCN 87/24 B2104 1 SNA

5.9-4 6044-000125 RING-E R0004 1 SA

5.9-5 6044-000231 RING-E R0006 2 SA

5.9-6 JC66-01163A GEAR-FUSER RDCN IN 95 D2105 1 SNA

5.9-7 JC66-00417A GEAR-RDCN FUSER OUT F4099 1 SA

5.9-8 JC66-00340A GEAR-HUB CLUTCH C9033 1 SA

5.9-9 JC66-01210A GEAR-FUSER IDLE FR D2173 1 SA

Drawer# SEC_Code Description

Location

QT'y Service Remark

SA : SERVICE AVAILABLE, SNA : SERVICE not AVAILABLE
