Service Manual
Product specification and feature
2-24
Samsung Electronics

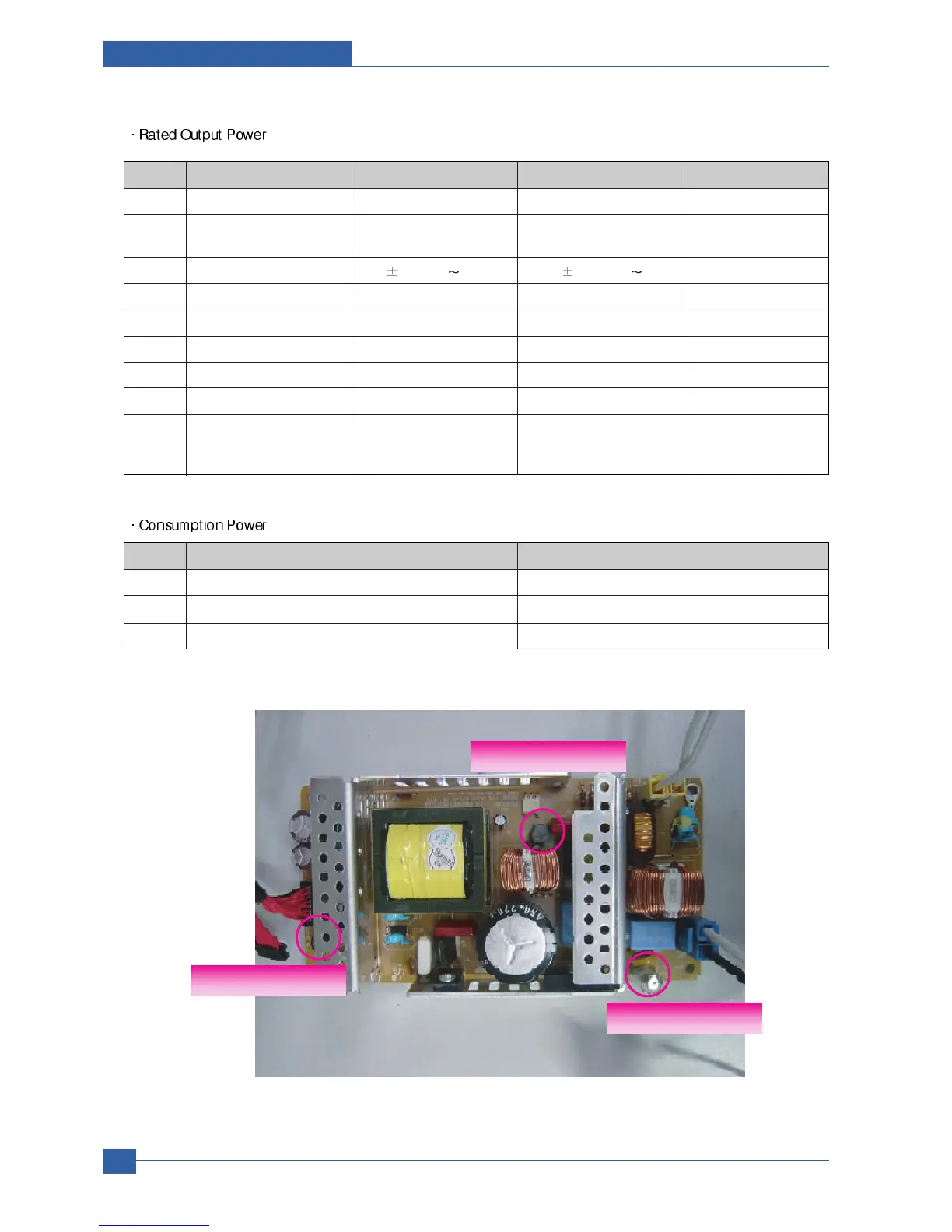

NO ITEM CH1 CH2 Remark
1 CHANNEL NAME +5V +24.0V
2 CONNECTOR PIN CON 35V PIN: 11,13,15 CON 324V PIN:3,5,7,9
GND PIN: 12,14,16 GND PIN:4,6,8,10
3 Rated Output +5V 5%(4.75 5.25V) +24V 10%(21.6 26.4V)
4 Max. Output Current 3 A 4.4 A
5 Peak Loading Current 3.6 A 5.3 A 1ms
6 RIPPLE NOISEVoltage 100mVp-p Under 500mVp-p
7 Maximum output 15W 105.6W
8 Peak output 18W 127.2W 1ms
9 Protection for loading Shut down or Fuse Shut down or Output
shortage and Protection Voltage Drop
overflowing current
NO ITEM System
1 Stand-By Less than 130W
2 PRINTING Less than 400W
3 Sleep-Mode Less than 11W
