3. Disassembly and Reassembly
Parts Explaination Photo Explaination
Magnetron,
Motor Assembly
and Lamp

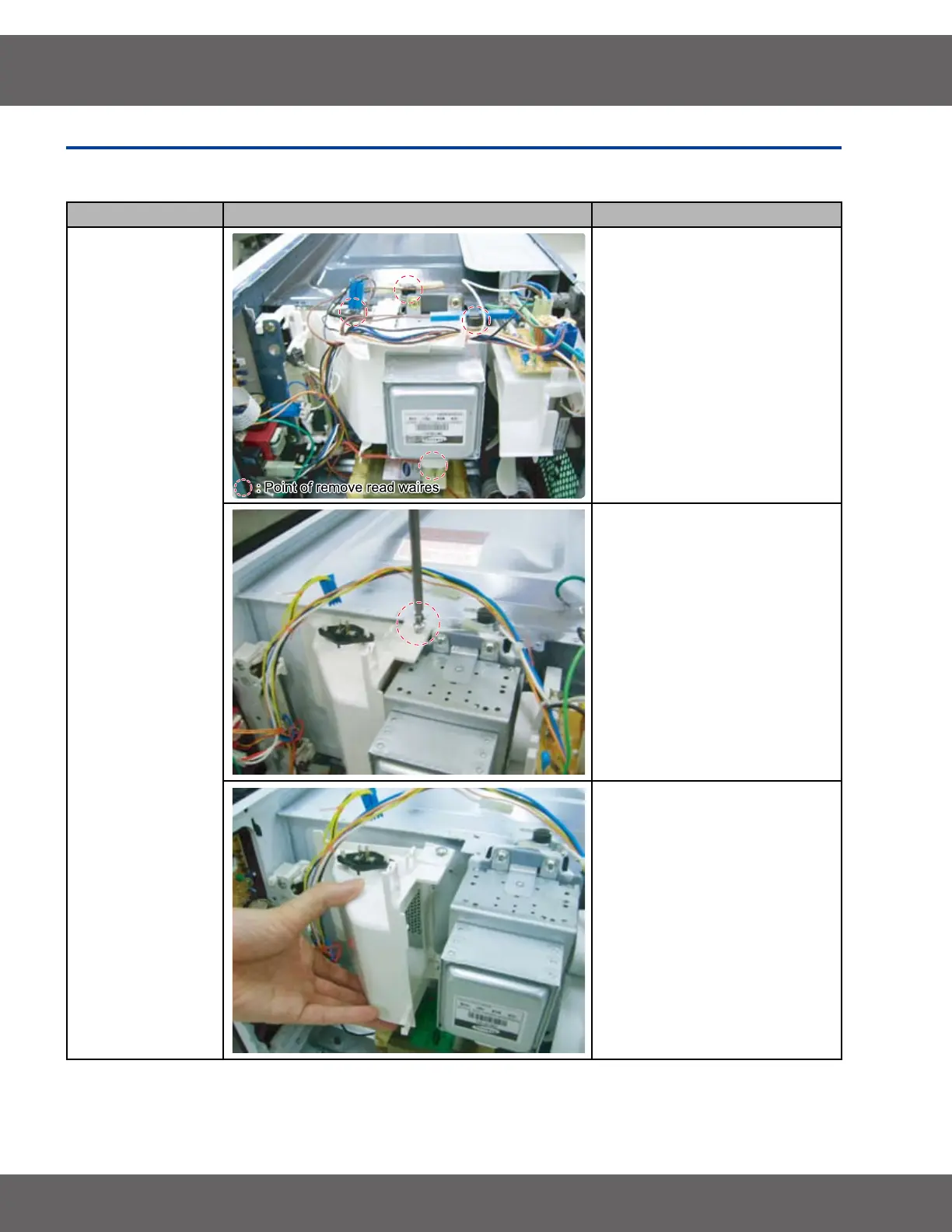

1. Disconnect all lead wires from
the magnetron and lamp.
2. Remove a screw securing air
cover.
3. Remove the air cover.
3-1 Disassembly of Magnetron, Motor Assembly and Lamp
Remove the magnetron including the shield case, permanent magnet, choke coils and capacitors (all of which
are contained in one assembly)
To Next Page
