Wired Remote Controller Installation
English
10
Installation
When Connected to an ventilator(ERV) Only

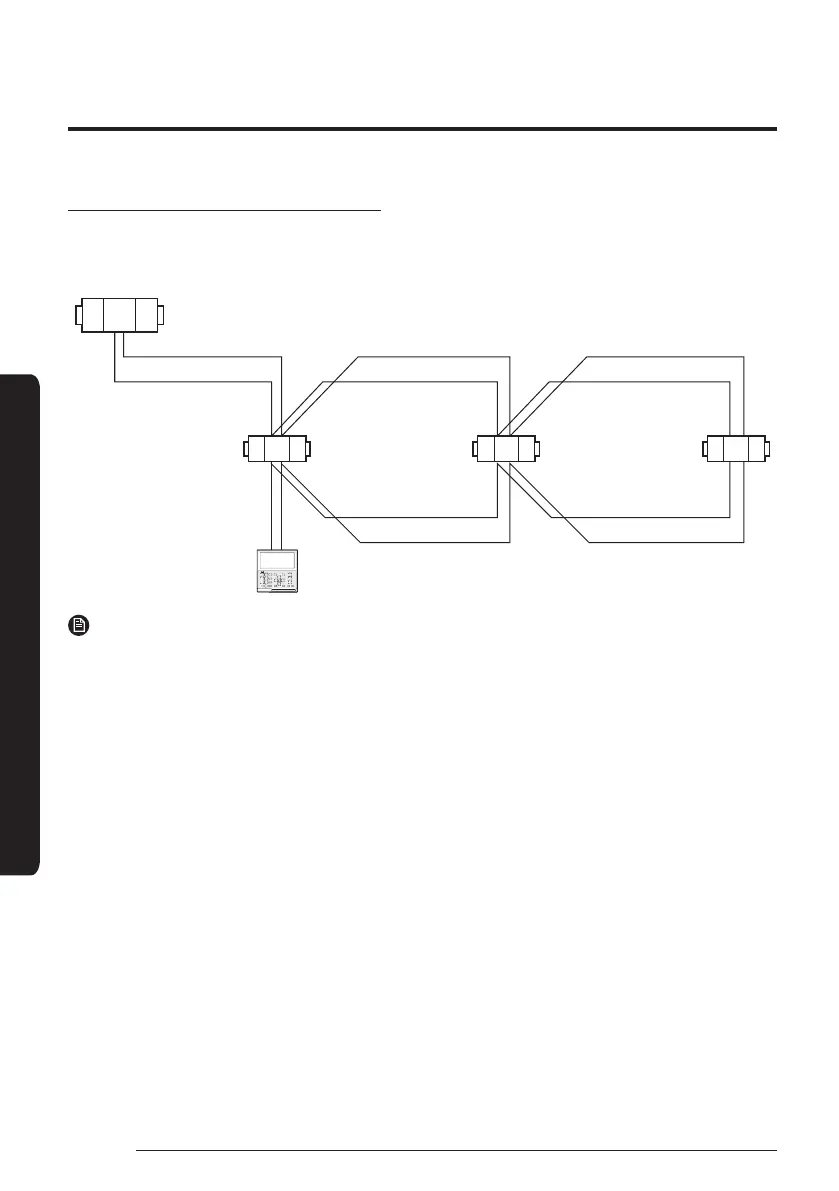

• Using One Wired Remote Controller to Control Three ventilator(ERV)
Master ventilator(ERV)
COM1 (F1, F2) COM1 (F1, F2) COM1 (F1, F2)
COM2 (F3, F4)COM2 (F3, F4)
Wired Remote Controller
Ventilator(ERV) Ventilator(ERV) Ventilator(ERV)
NOTE
• Regardless of the ventilator(ERV)'s group address (RMC address), only the ventilator(ERV) connected to COM2
controlled in group.
• The power cable (V1, V2) is not connected between ventilators(ERV).
• The power cable for your Wired Remote Controller (V1, V2) should be connected to only one ventilator(ERV).
