2.0CH Speaker Connector Terminals1.
ONLY FOR SERVICE (This jack is just 2.
for testing, please don't use it)
AUX IN 2 jack3.
AM Antenna Connector Terminal 4.
(Optional)
This product may not support the AM ☛
function depending on your region.
FM Antenna Connector Terminal5.
2.1CH Speaker Connector Terminals1.
ONLY FOR SERVICE (This jack is just 2.
for testing, please don't use it)
AUX IN 2 jack3.
AM Antenna Connector Terminal 4.
(Optional)
This product may not support the AM ☛
function depending on your region.
FM Antenna Connector Terminal5.

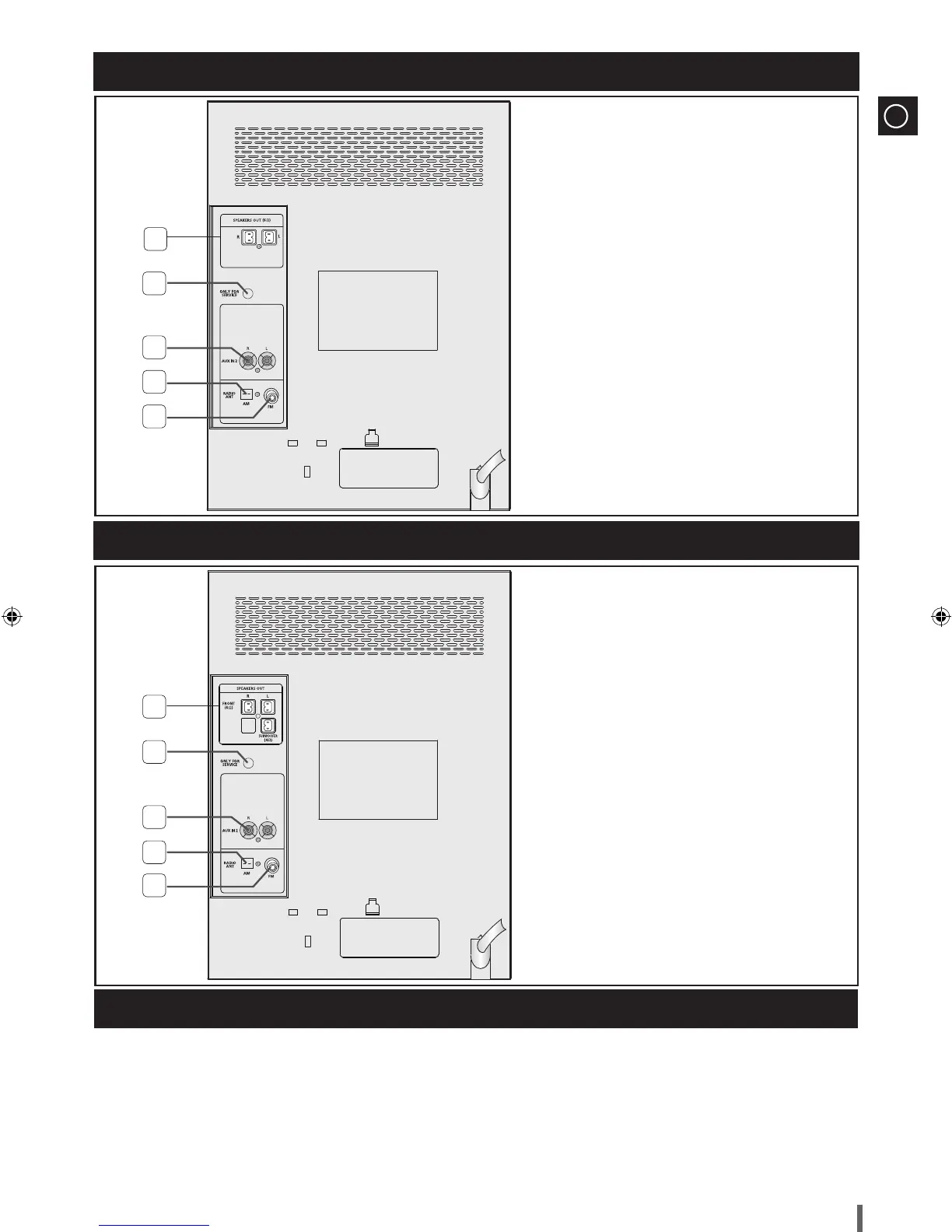

Rear Panel View(MX-D730)
1
2
3
4
5
Where to Install Your Mini-Compact System
To take full advantage of your new mini-compact system, follow these installation instructions before connecting the unit.
Install the system on a flat, stable surface.
◆
Never place this unit on carpeting.
◆
Never place this unit in an outdoor area.
◆
Maintain an open space of approximately 6 inches (15 cm) on the sides and rear of the system, for ventilation purposes.
◆
Make sure that you have enough room to open the compact disc compartment easily.
◆
Place the Speakers at a reasonable distance on either side of the system to ensure good stereo sound.
◆
Direct the Speakers towards the listening area.
◆
For optimum performance, make sure that both speakers are placed at an equal distance above the floor.
◆
Rear Panel View(MX-D750)
1
2
3
4
5
All those pictures of the Rear panel are
➣
based on MODEL: MX-D730
