Samsung NV70K3370BS User Manual

8 English

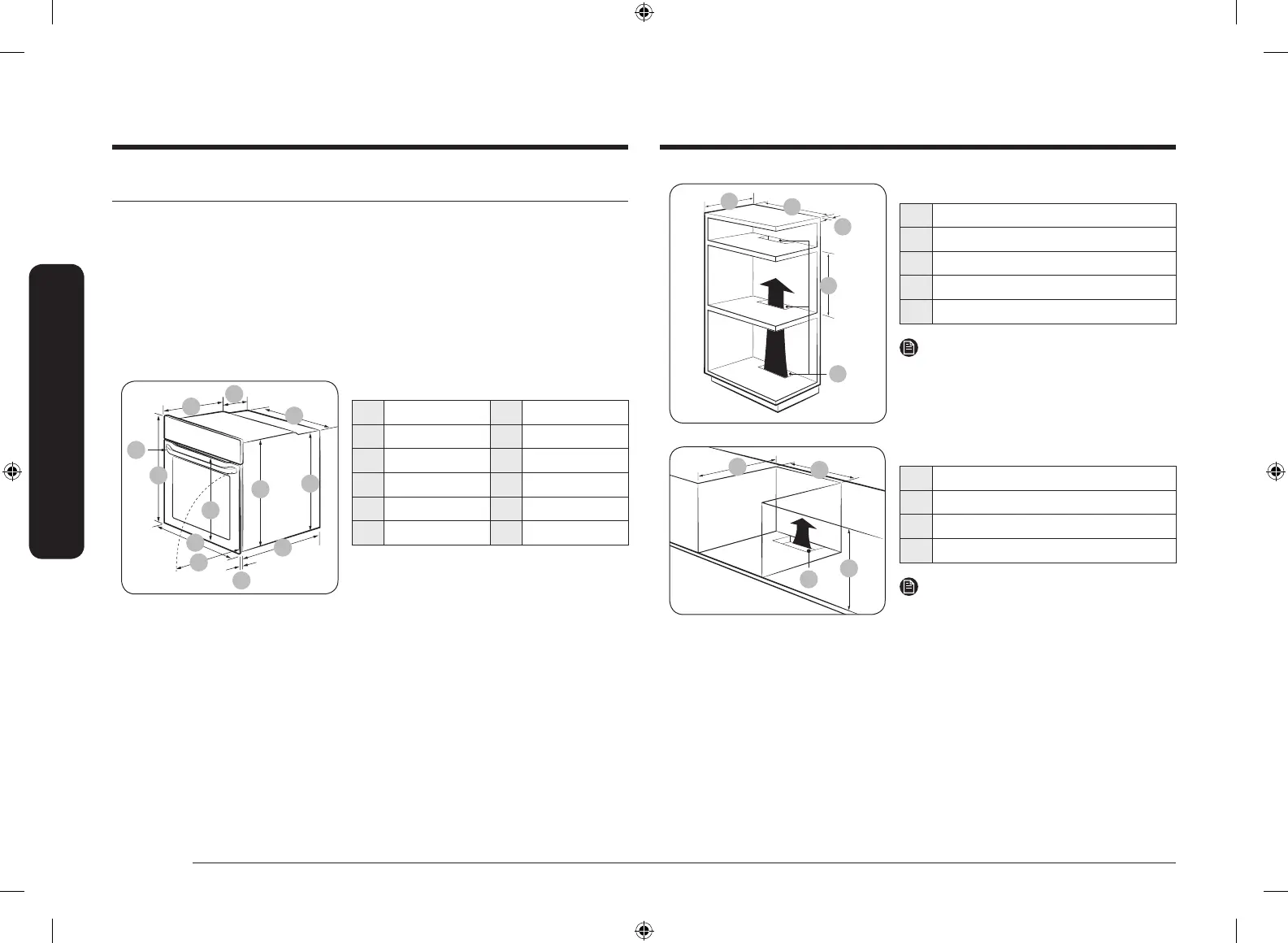

Installation
Installation
D
C
B
A
E
Built-in cabinet (mm)
A Min. 550
B Min. 560
C Min. 50
D Min. 590 - Max. 600
E Min 460 x Min. 50
NOTE
The built-in cabinet must have vents (E) to
ventilate heat and circulate the air.
D
C
B
A
Under-sink cabinet (mm)
A Min. 550
B Min. 560
C Min. 600
D Min 460 x Min. 50
NOTE
The built-in cabinet must have vents (D) to
ventilate heat and circulate the air.
Cabinet mount
If installing the oven in a built-in cabinet, the cabinet must have its plastic surfaces
and adhesive parts resistant up to 90 °C, and adjacent furniture must be resistant
up to 75 °C. Samsung is not responsible for damage to furniture from the oven’s
heat emission.
The oven must be properly ventilated. For ventilation, leave a gap of about 50 mm
between the lower shelf of the cabinet and the supporting wall. If you install the
oven under a cooktop, follow the cooktop’s installation instructions.
Required Dimensions for Installation
D
E
C
B
A
L
K
J
I
F
H
G
Oven (mm)
A 560 G Max. 506
B 175 H Max. 494
C 370 I 21
D Max. 50 J 549
E 595 K 572
F 595 L 550
NV70K3370BS_SA_DG68-00751E-00_EN.indd 8 2017-10-12  9:50:05

Samsung NV70K3370BS Specifications

General

Oven size	Medium
Oven type	Electric
Cleaning type	Pyrolytic + Steam
Number of ovens	1
Total oven power	- W
Microwave cooking	-
Convection cooking	Yes
Oven thermostat range	30 - 250 °C
Auto programs quantity	20
Total oven(s) interior capacity	70 L
AC input voltage	230 V
AC input frequency	50 Hz
Energy efficiency index (EEI)	94
Energy consumption (conventional)	0.99 kWh
Energy consumption (forced convection)	0.79 kWh
Door hinge	down
Control type	Rotary
Display type	LED
Product color	Black, Stainless steel
Control position	Front
Interior material	Enameled ceramic
Appliance placement	Built-in
Number of glass door panels	3
Clock type	Electronic
Timer type	Digital
Package depth	646 mm
Package width	682 mm
Package height	656 mm
Package weight	41000 g

Weight and Dimensions

Depth	566 mm
Width	595 mm
Weight	38800 g
Installation compartment depth	545 mm
Installation compartment width	560 mm
Installation compartment height	572 mm
Interior dimensions (W x D x H)	560 x 545 x 572 mm
