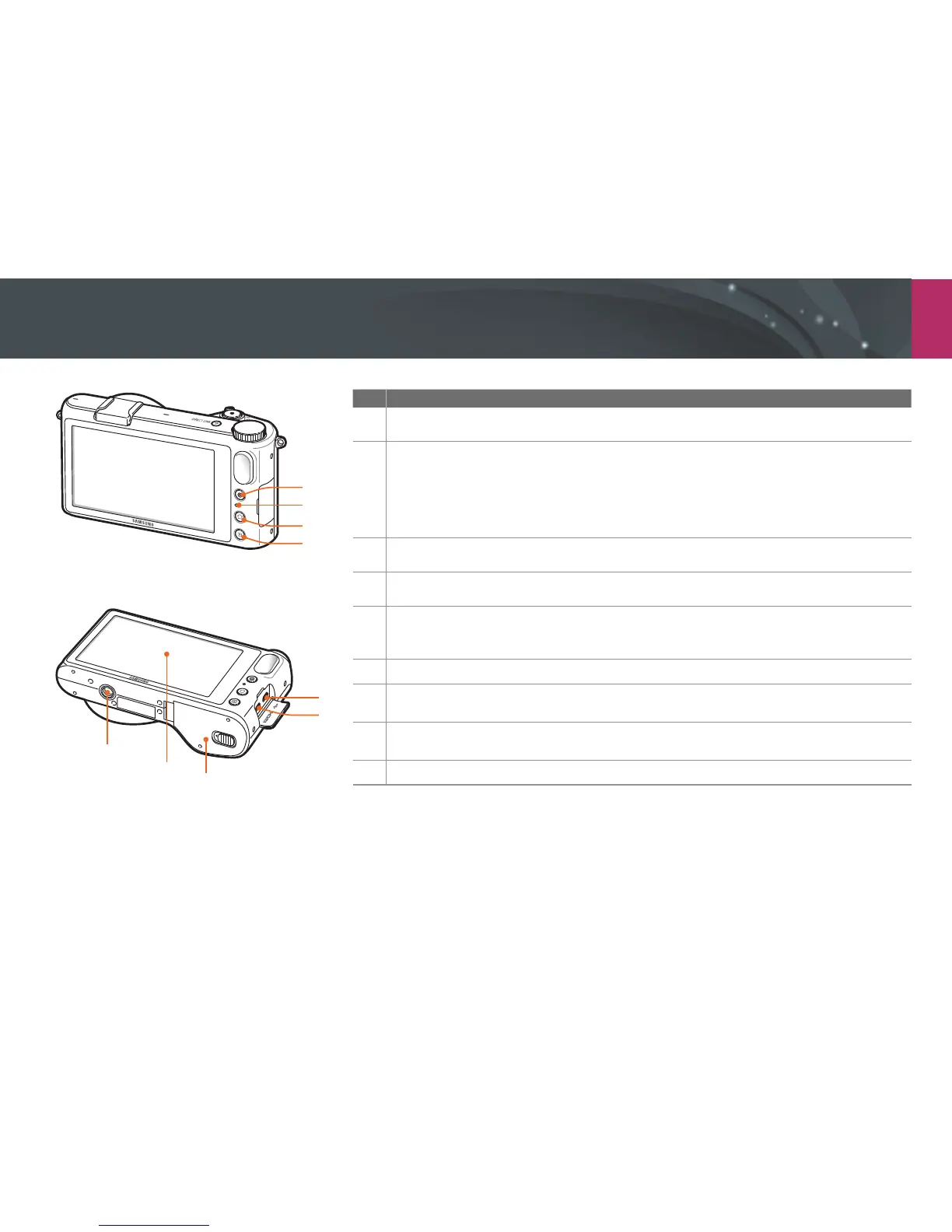

My Camera > Camera layout
30
No. Name
1
Video recording button
Start recording a video.
2
Status lamp
Indicate the status of the camera.
• Blinking: When saving a photo, shooting a video, sending data to a computer, connecting to
WLAN, or sending a photo.
• Steady: When there is no data transfer between the camera and a computer, or the battery is
charging.
3
Mode button
Access the Mode screen. (p. 36)
4
Playback button
Enter Playback mode.
5
USB and shutter release port
Connect the camera to a computer or shutter release. Use a shutter release cable with a tripod to
minimize camera movement.
6
HDMI port
7
Battery chamber/Memory card cover
Insert a memory card and battery.
8
Display
Touch the screen to select a menu or an option. (p. 38)
9
Tripod mount
1
2
3
4
8
9
5
6
7
