My Camera
29

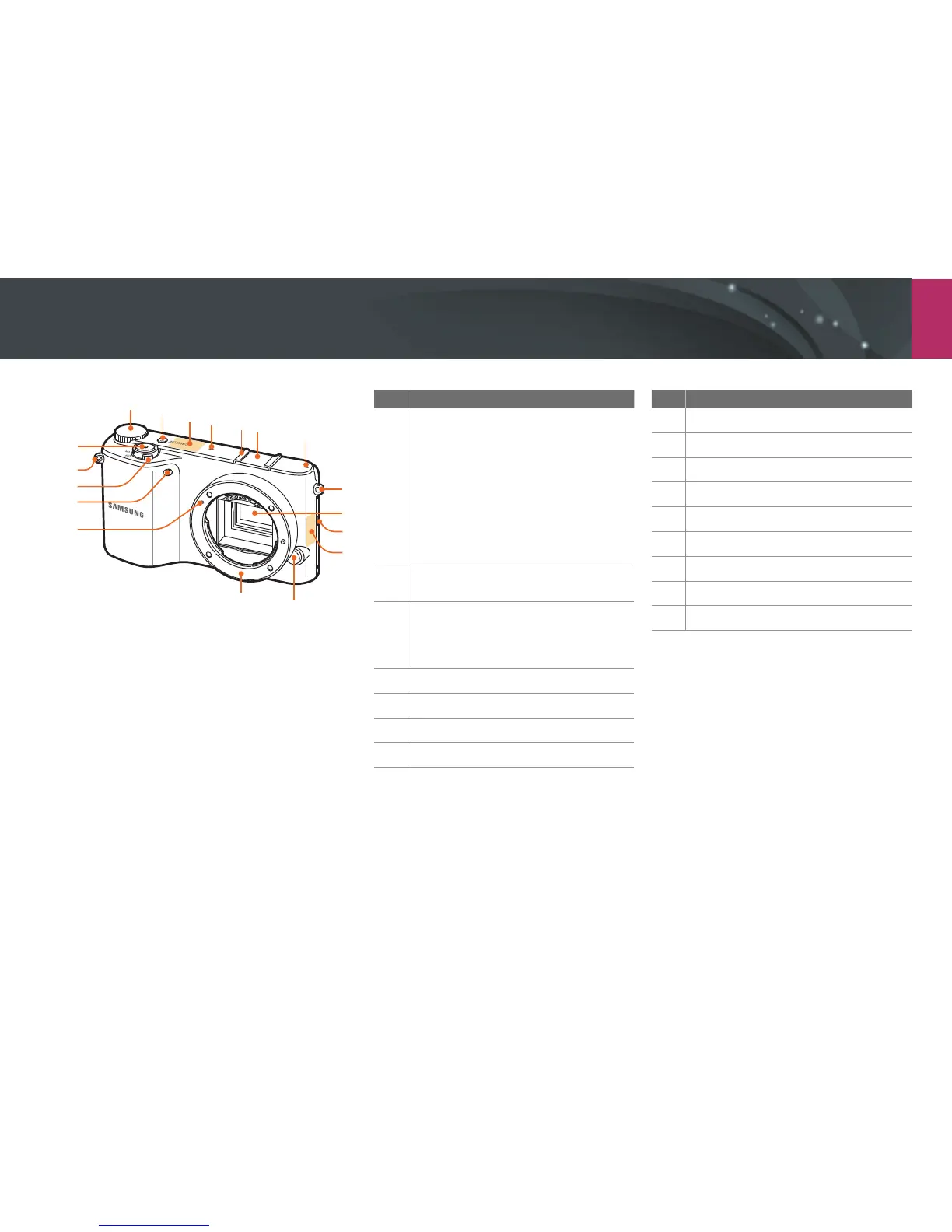

Camera layout
No. Name
1
Command dial
• In the Smart panel: Move to a desired
option or adjust a selected option.
• In Shooting mode: Access a Mode
screen in Shooting mode or adjust
shutter speed, aperture value, or
exposure value in some shooting
modes.
• In Playback mode: View thumbnails
or enlarge/reduce a photo.
2
DIRECT LINK button: Start a preset Wi-Fi
function. (p. 31)
3
Internal antenna
* Avoid contact with the internal
antenna while using the wireless
network.
4
Microphone
5
Hot-shoe
6
Hot-shoe cover
7
Eyelet for camera strap
No. Name
8
Image sensor
9
Speaker
10
NFC tag
11
Lens release button
12
Lens mount
13
Lens mount index
14
AF-assist light/Timer lamp
15
Power switch
16
Shutter button
1
2
3
5
7
9
10
11
12
13
14
6
4
8
7
16
15
4
