Samsung PM32F

19
Chapter 2. Device setup

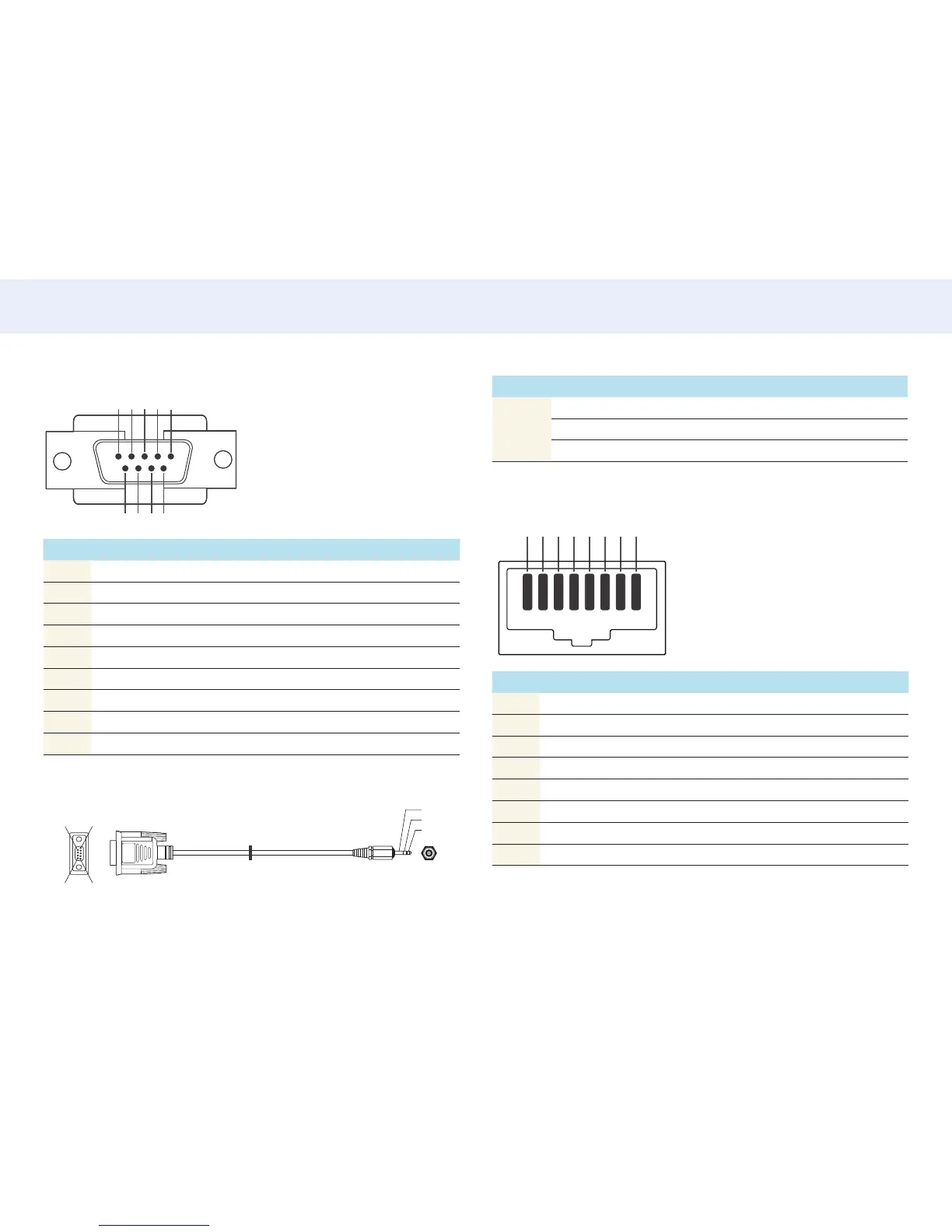

Pin assignment
1 2 3 4 5
6 7 8 9
Pin Signal
1 Detect data carrier
2 Received data
3 Transmitted data
4 Prepare data terminal
5 Signal ground
6 Prepare data set
7 Send request
8 Clear to send
9 Ring indicator
RS232C cable
• Connector: 9-Pin D-Sub to Stereo Cable
1
59
6
-P2-
1
2
3
-P1-
-P1- -P1- -P2- -P2-
Female Rx 2

3 Tx STEREO
Tx 3

2 Rx PLUG
Gnd 5 — 5 Gnd (3.5ø)
LAN Cable
Pin assignment
1 2 3 4 5 6 7 8
Pin No Standard Color Signal
1 White and orange TX+
2 Orange TX-
3 White and green RX+
4 Blue NC
5 White and blue NC
6 Green RX-
7 White and brown NC
8 Brown NC
